Case 580SR+ - Parking Brake

6 SECTION 33 - BRAKES SYSTEM
2. PARKING BRAKE
The parking brake is fitted to all models and incorpo-
rates two free floating friction pads.

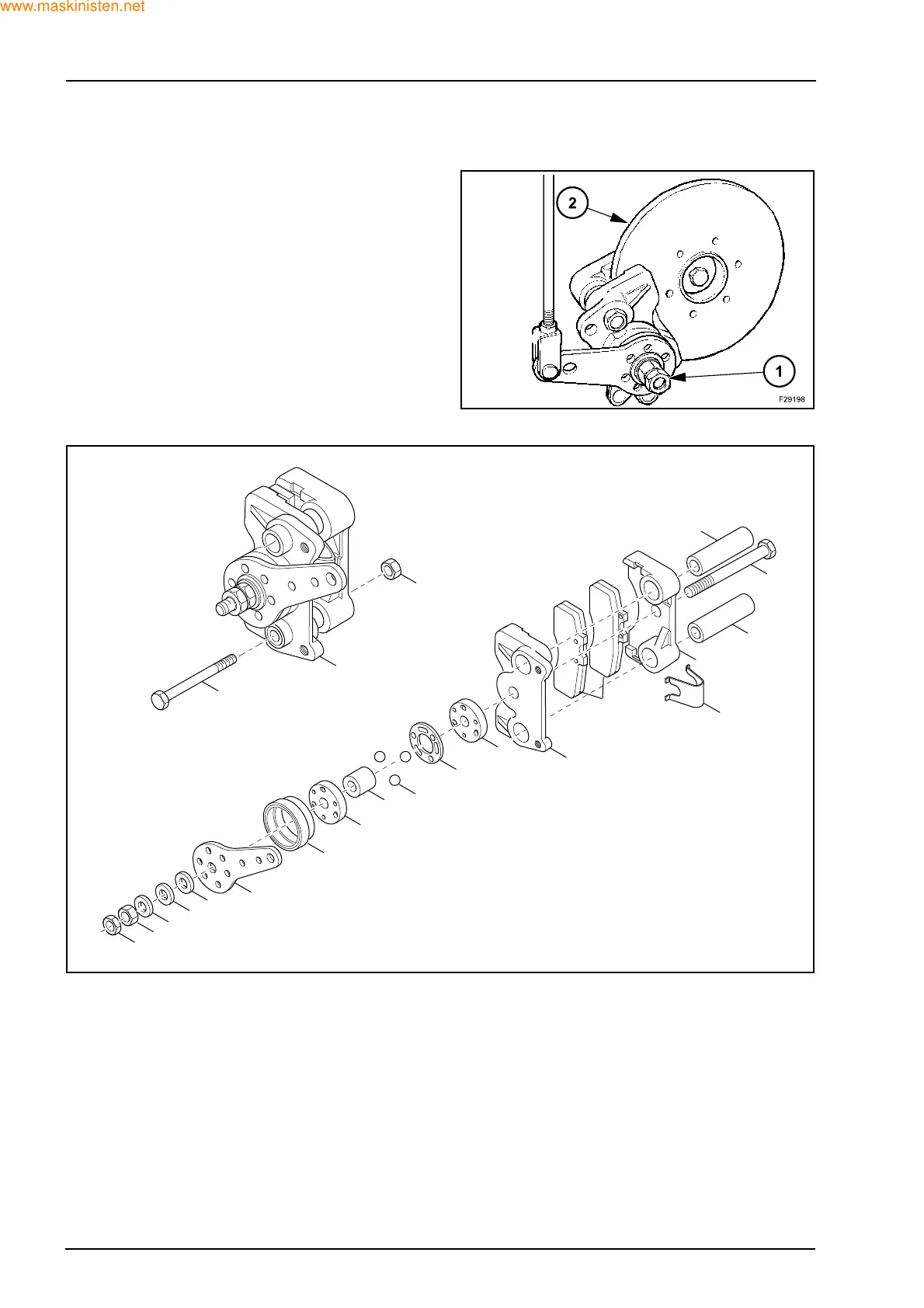

When operated the cam (1) forces the friction pads
against the disc (2), effecting a braking action on the
output shaft from the transmission, locking the drive
shaft to the rear and front axles.
1. Screw - brake mounting
2. Assembly - caliper
3. Nut - brake mounting screw
4. Nut - adjustment
5. Nut - adjustment
6. Washer
7. Washer
8. Thrust washer
9. Lever
10. Boot
11. Cam
12. Oil seal
13. Bearing
14. Retainer
15. Cam
16. Torque plate - front
17. Carrier and lining assembly
18. Torque plate - rear
19. Sleeve mounting
20. Adjuster screw
21. Spring
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
21
18
19
20
17
19
F27750
