SECTION 33 - BRAKES SYSTEM 5

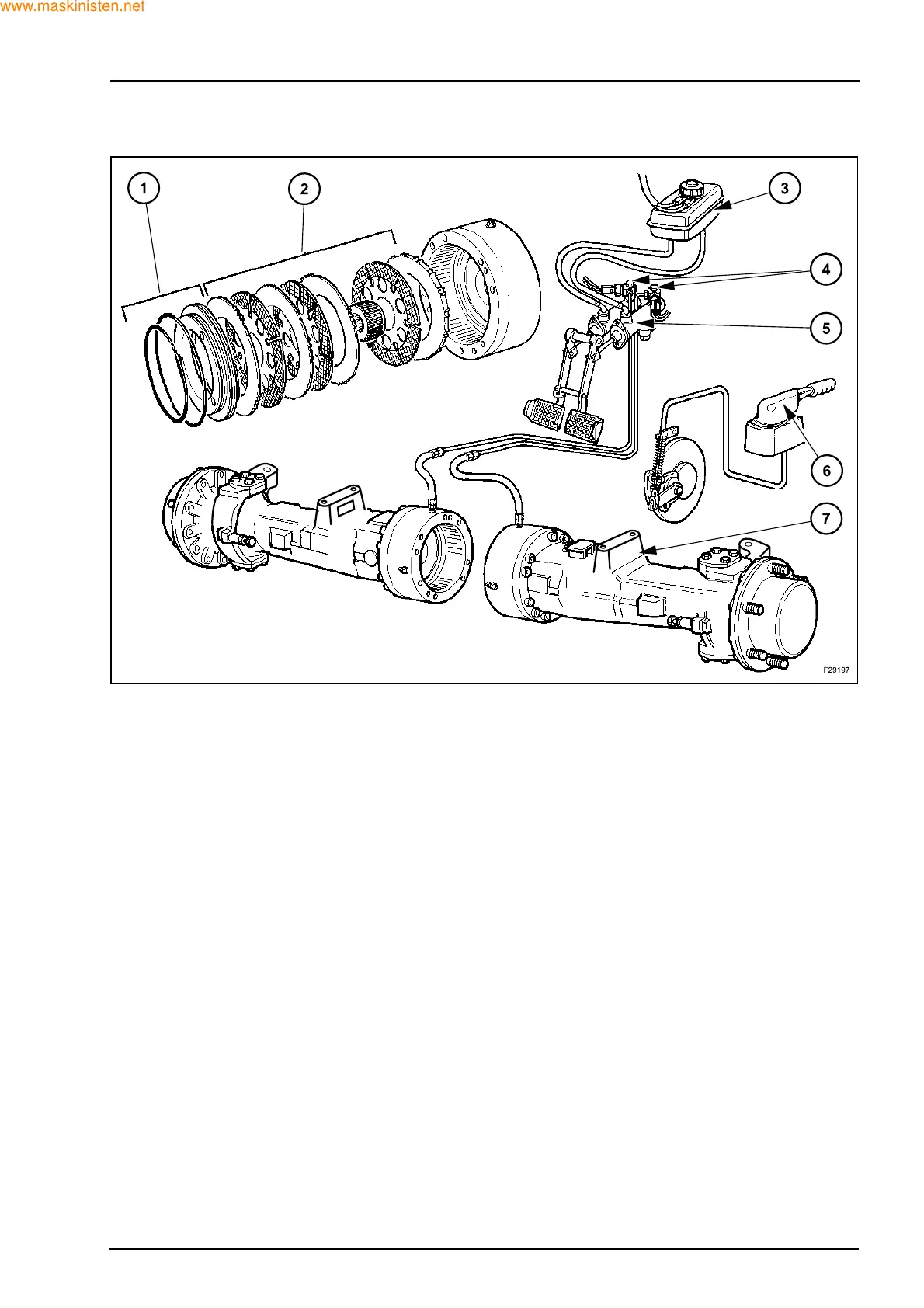

BRAKE SYSTEM LAYOUT (4WS)
1. Brake piston assembly
2. Brake discs
3. Brake tank
4. Pressure switch
5. Master cylinders
6. Parking brake
7. Axle shaft
