Case 580SR+ - Brake Cylinders

8 SECTION 33 - BRAKES SYSTEM
3. BRAKE CYLINDERS
Brake cylinders are accessible from the engine com-
partment.
The brake cylinders are linked by a balancing pipe
(12) situated below the cylinders to maintain equal oil
pressure between the two cylinders.

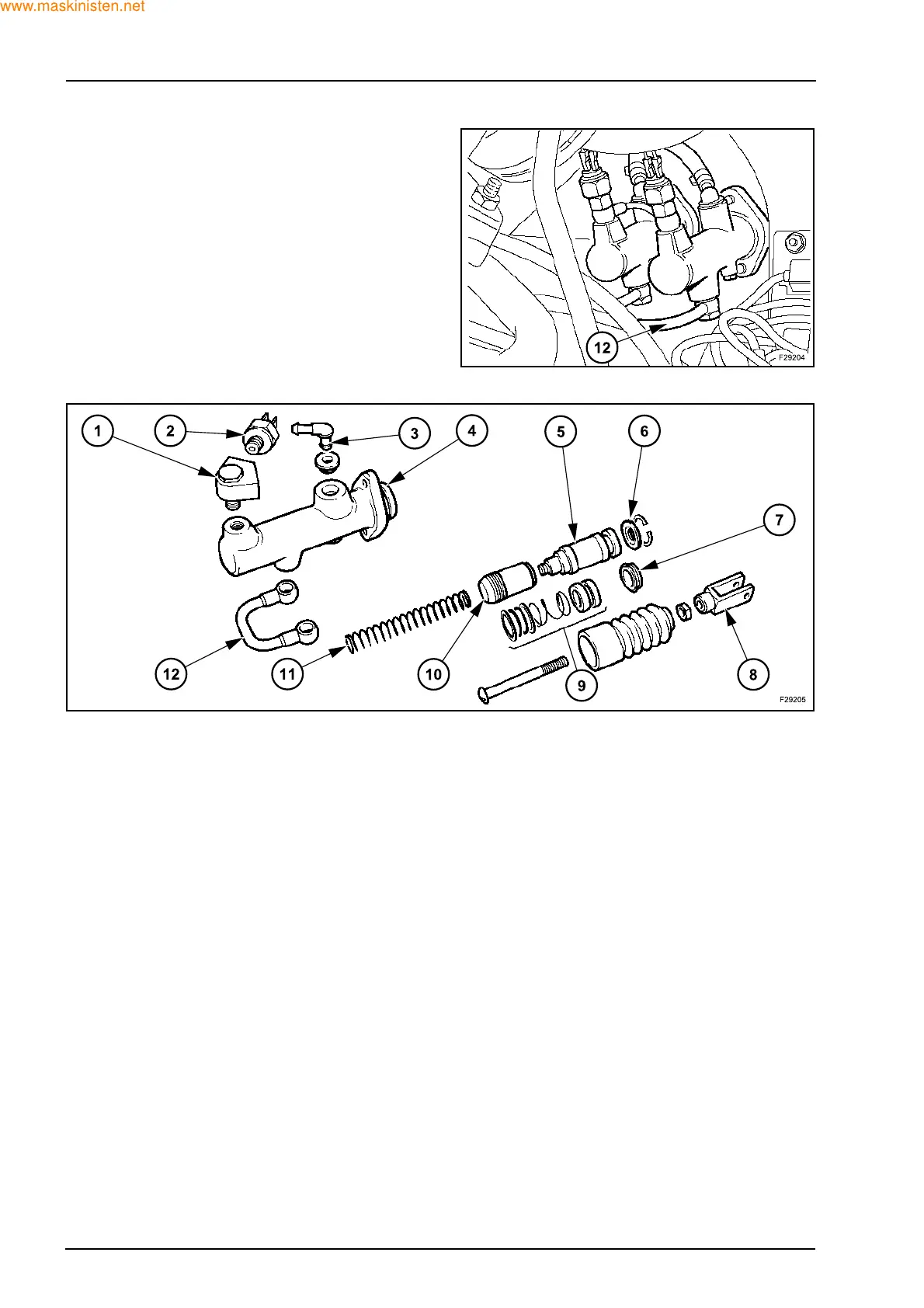

1. Fitting
2. Pressure switch
3. Fitting
4. Body
5. Primary spool
6. Bottom
7. Seal
8. Clevis
9. Seals
10. Secondary spool
11. Spring
12. Balancing pipe
