76 SECTION 35 - HYDRAULIC SYSTEM

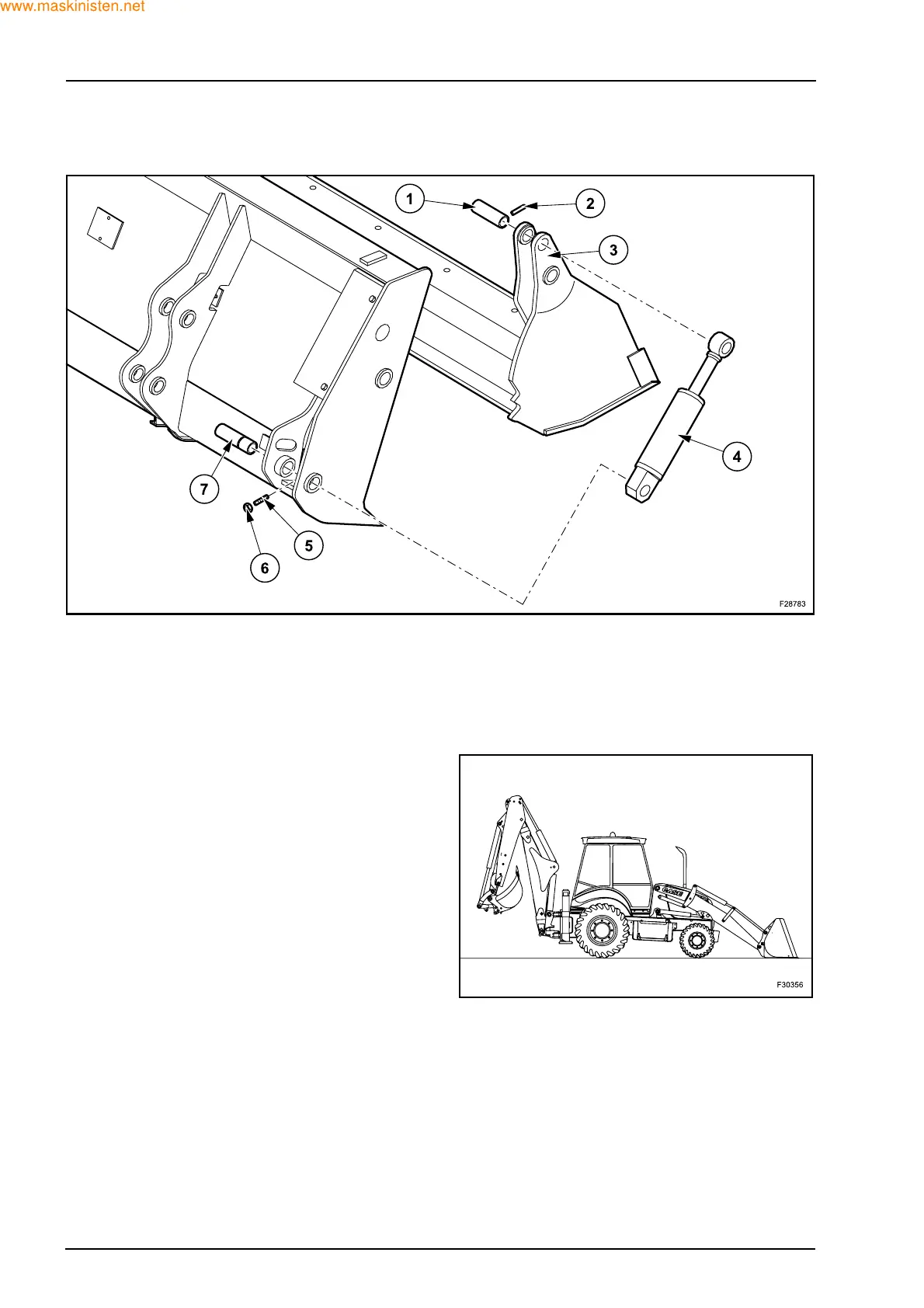

5.3 4X1 LOADER BUCKET CYLINDER
1. Cylinder rod pin
2. Dowel
3. Bucket
4. Cylinder
5. Dowel
6. Nut
7. Cylinder bottom pin
CYLINDER REMOVAL
Park machine on a flat surface and position the
bucket firmly on the ground.
Relieve the residual pressure in the system by mov-
ing the loader control lever through all operating po-
sitions.
