SECTION 35 - HYDRAULIC SYSTEM 77

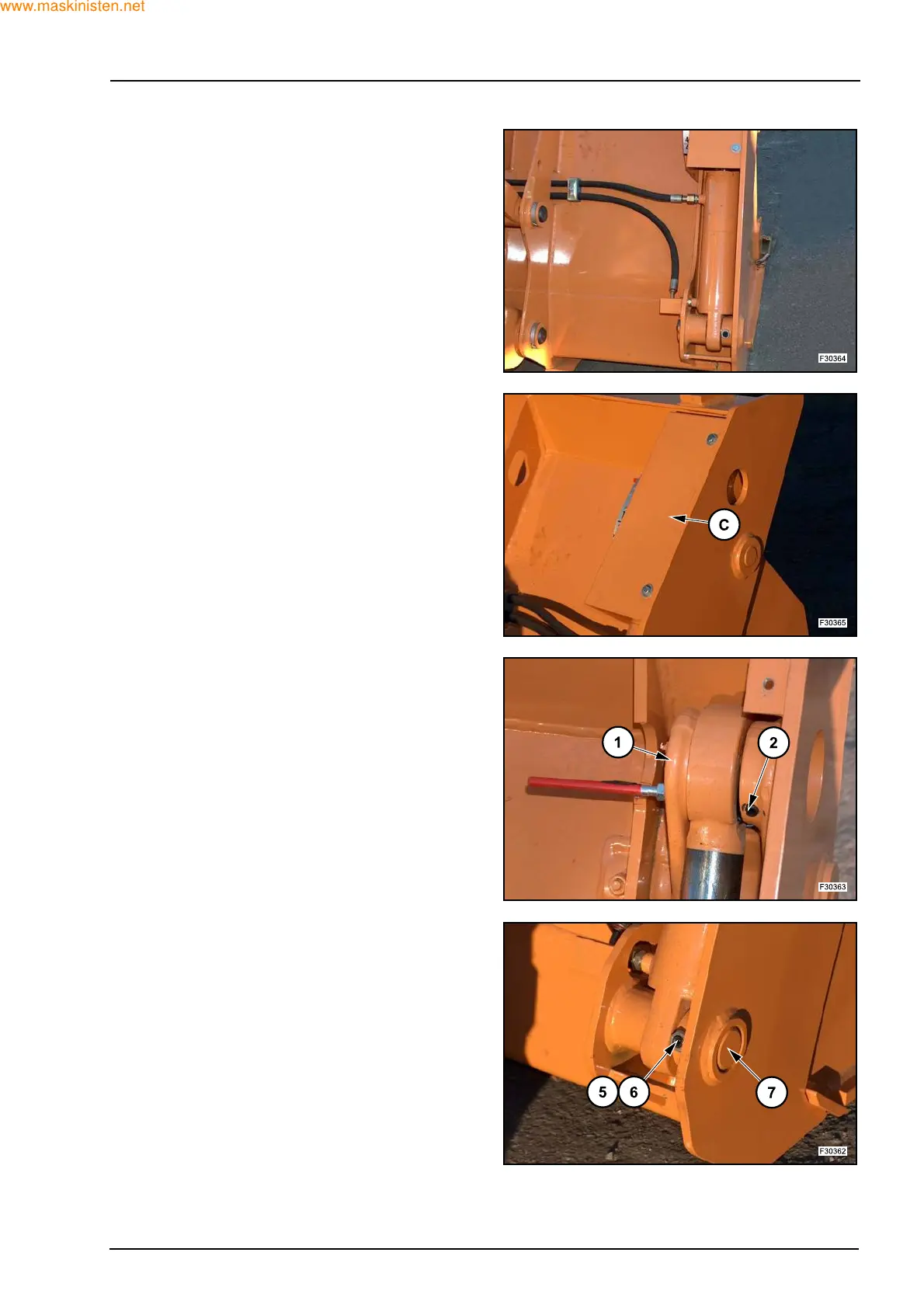

Disconnect the hydraulic hoses.
Unscrew and remove the clamping screws of the
cover (C). Remove the cover (C).
Remove the pin (2). Slide out the rod pin (1) with an
hammer.
Unscrew and remove the nut (6) and the dowel (5).
Slide out the lower pin (7) with an hammer.
Remove the 4x1 loader bucket cylinder.
