78 SECTION 35 - HYDRAULIC SYSTEM

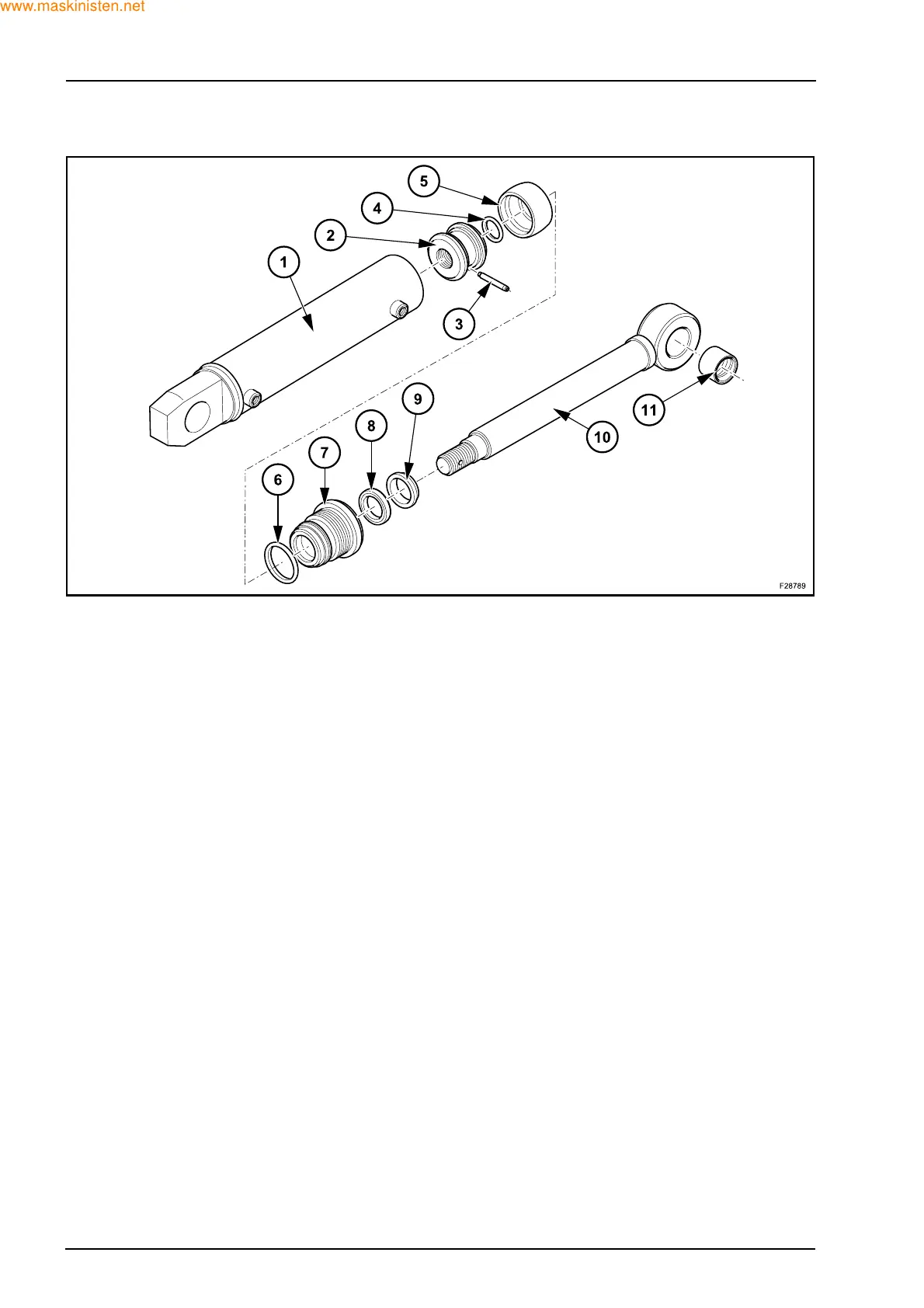

DISASSEMBLY CYLINDER
1. Cylinder tube
2. Piston
3. Pin
4. O-ring
5. Piston guide
6. O-ring
7. Cylinder head
8. Gasket
9. Wiper ring
10. Cylinder rod
11. Bushing
