SECTION 02 - TECHNICAL SPECIFICATIONS 13
4. DIMENSIONS AND PERFORMANCE

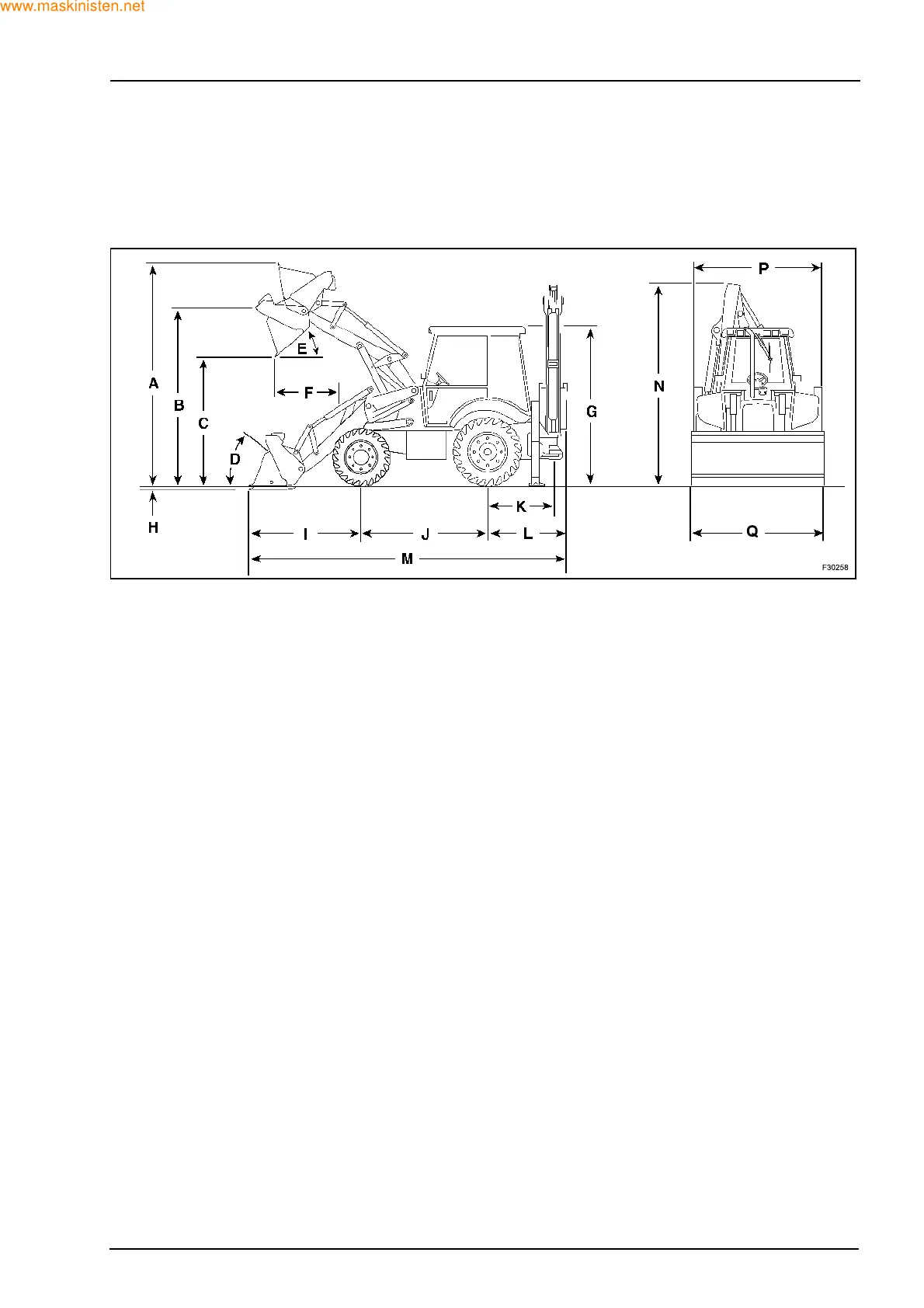

4.1 LOADER ATTACHMENT DIMENSIONS AND PERFORMANCE
580SR / 580SR+ / 590SR
A. Maximum height
B. Maximum height of loader bucket pin/pivot
C. Maximum dumping height
D. Angle of lowered closed bucket
E. Angle of closed bucket at maximum height
F. Loader attachment reach when raised in dump-
ing position
G. Cab height
H. Digging depth
I. Loader bucket reach
J. Wheel base
K. Rear wheel base - backhoe attachment swing
support
L. Backhoe bucket dimensions
M. Overall machine length
N. Maximum machine height
O. Stabilizer width
P. Loader bucket width
