SECTION 35 - HYDRAULIC SYSTEM 115

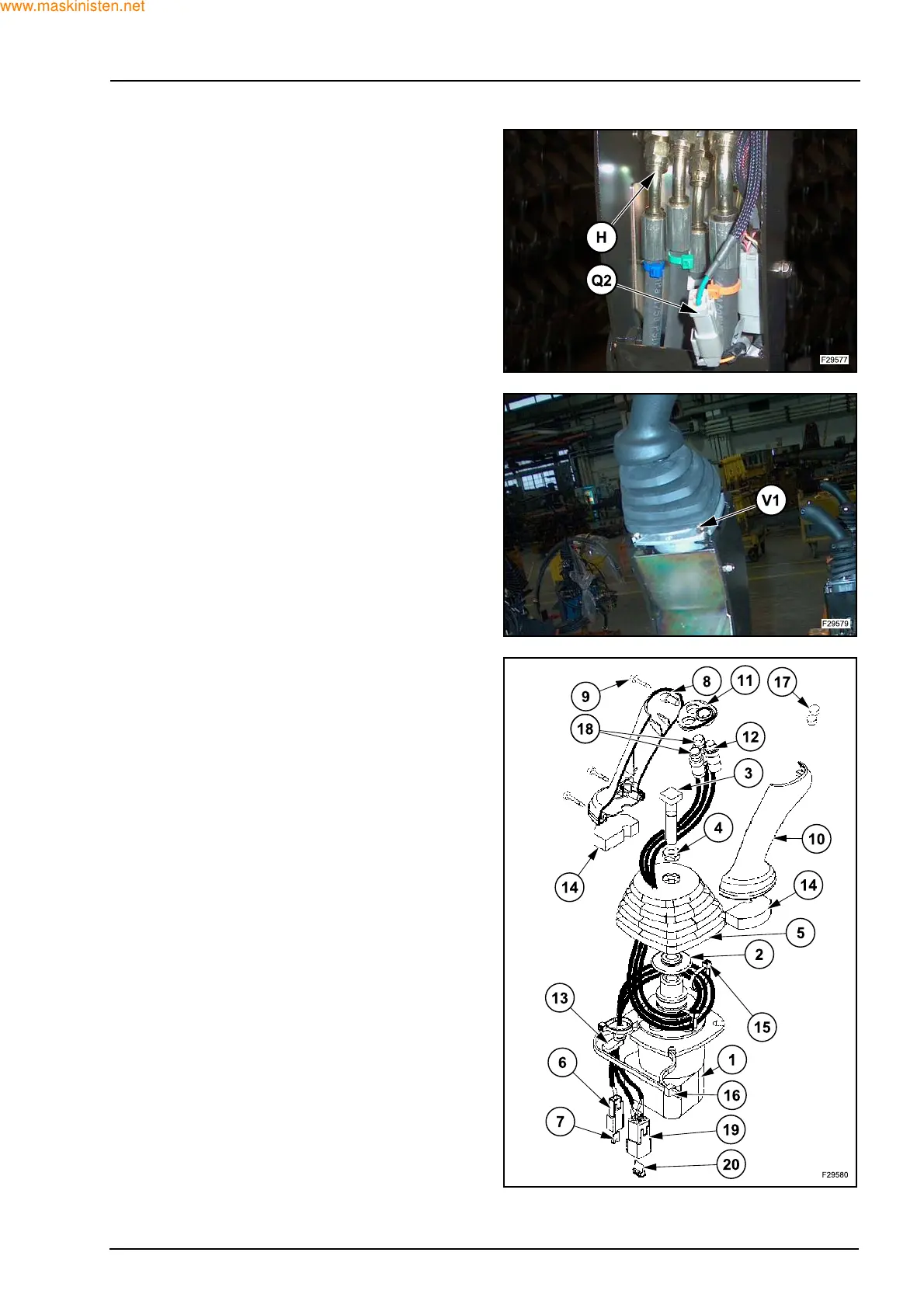

Z Tag all hydraulic hoses before disconnecting them.
Disconnect all hoses (H).
Z Disconnect all connectors (Q2).
Z Remove the screws (V1) and take out control lever
from the column.
Z Remove the screws (9). Separate the half handles
(8) and (10). Remove the cap (11).
Unscrews the nut (4) and remove the screw (3).
Remove the spacers (14). Remove the boots (5).
Remove the plate (2).
Reassembly
To reassemble the control levers, proceed in the re-
verse order to that of removal.
Follow the marks made during disassembly, and tight-
en the nut (4) to a torque of 36 to 44 Nm.
