14 SECTION 84 - BACKHOE
STABILIZER MECHANICAL CONTROLS

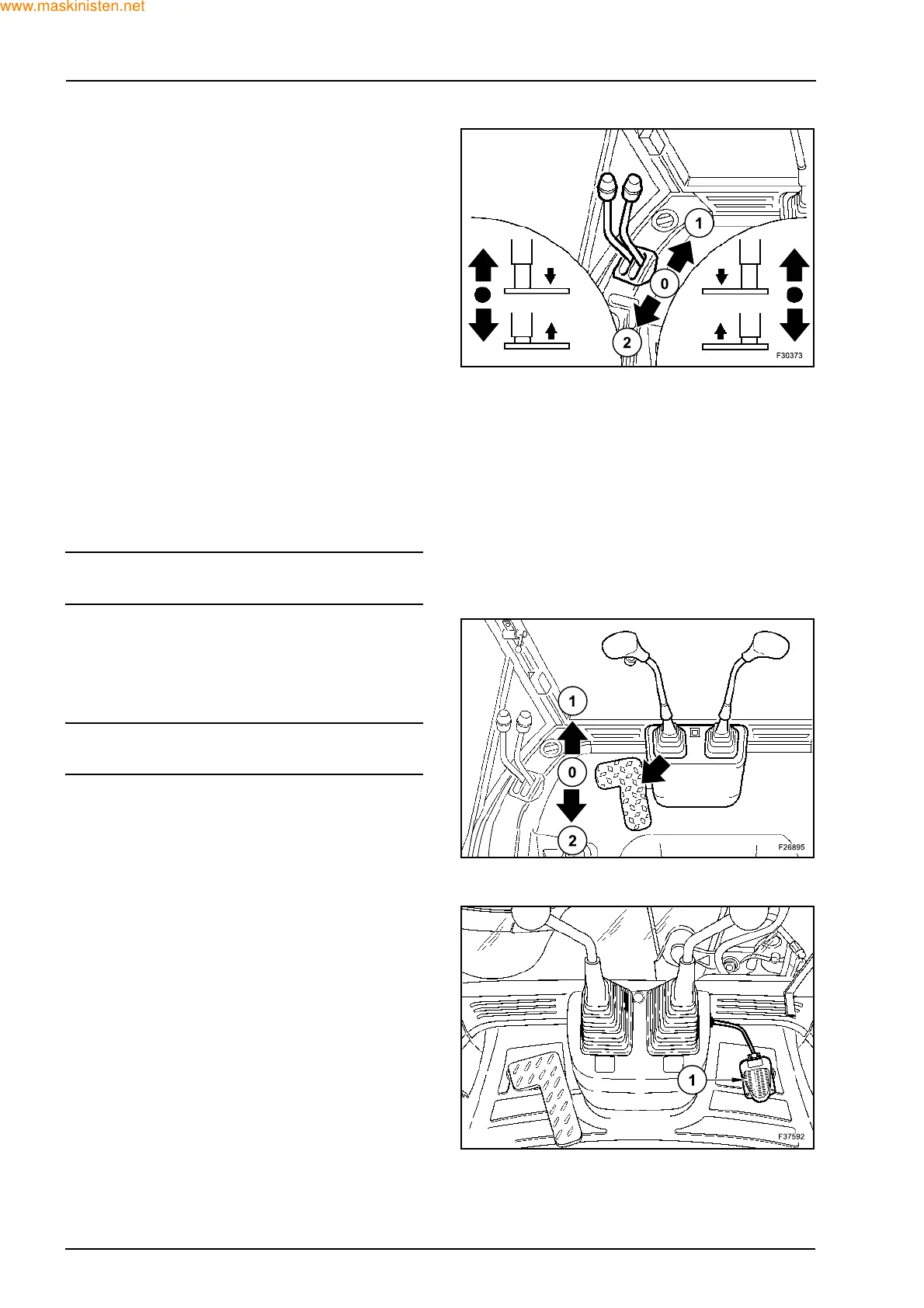

Left-hand stabilizer left-hand control lever
This lever has three positions:
Position (0): neutral. This position stops the move-
ment of the left-hand stabilizer. As soon as the lever
is released, it automatically returns to the neutral po-
sition (0) and the left-hand stabilizer stops raising or
lowering.
Position (1): the left-hand stabilizer lowers.
Position (2): the left-hand stabilizer rises.
Right-hand stabilizer right-hand control lever
This lever has three positions:
Position (0): neutral. This position stops the move-
ment of the right-hand stabilizer. As soon as the lever
is released, it automatically returns to the neutral po-
sition (0) and the right-hand stabilizer stops raising or
lowering.
Position (1): the right-hand stabilizer lowers.
Position (2): the right-hand stabilizer rises.
NOTE: to raise or lower the stabilizers at the same
time, operate the two levers simultaneously.
TELESCOPIC DIPPER MECHANICAL CONTROL
PEDAL
This pedal has three positions:
Position (0): neutral. This position enables the move-
ment of the telescopic dipper to be stopped.
NOTE: the pedal automatically returns to this posi-
tion as soon as it is released.
Position (1): the telescopic dipper extends.
Position (2): the telescopic dipper retracts.
AUXILIARY ATTACHMENT CONTROL PEDAL
(Optional)
This pedal (1) is located to the right of the backhoe
attachment controls and is used for operating auxil-
iary attachment, such as a hydraulic hammer.
1
