SECTION 84 - BACKHOE 25

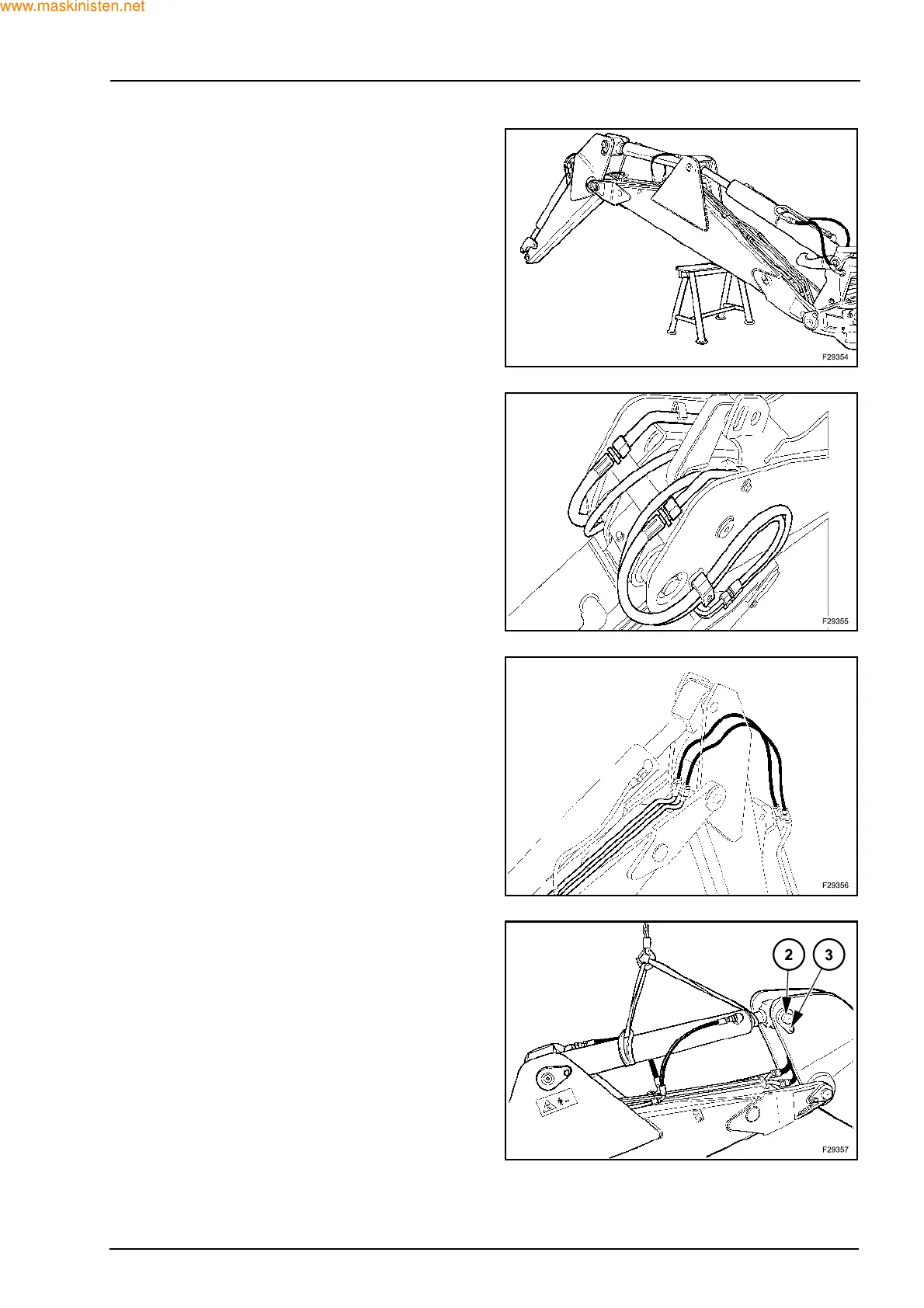

Lower the backhoe to the ground and support using
a suitable stand.
Turn off engine, then move backhoe control levers
through all operating positions to relieve pressure in
the system.
Disconnect the hoses to the dipper cylinders:
Z Telescopic dipper hoses.
Z Standard dipper hose.
Support the dipper cylinder, unscrew and remove the
screw (2), slide out the pin (3).
Lower cylinder onto boom. Use suitable cylinder sup-
ports to ensure weight of cylinder does not damage
hydraulic tubes attached to the dipper.
