SECTION 21 - TRANSMISSION 189
FORWARD HIGH CLUTCH ASSEMBLY

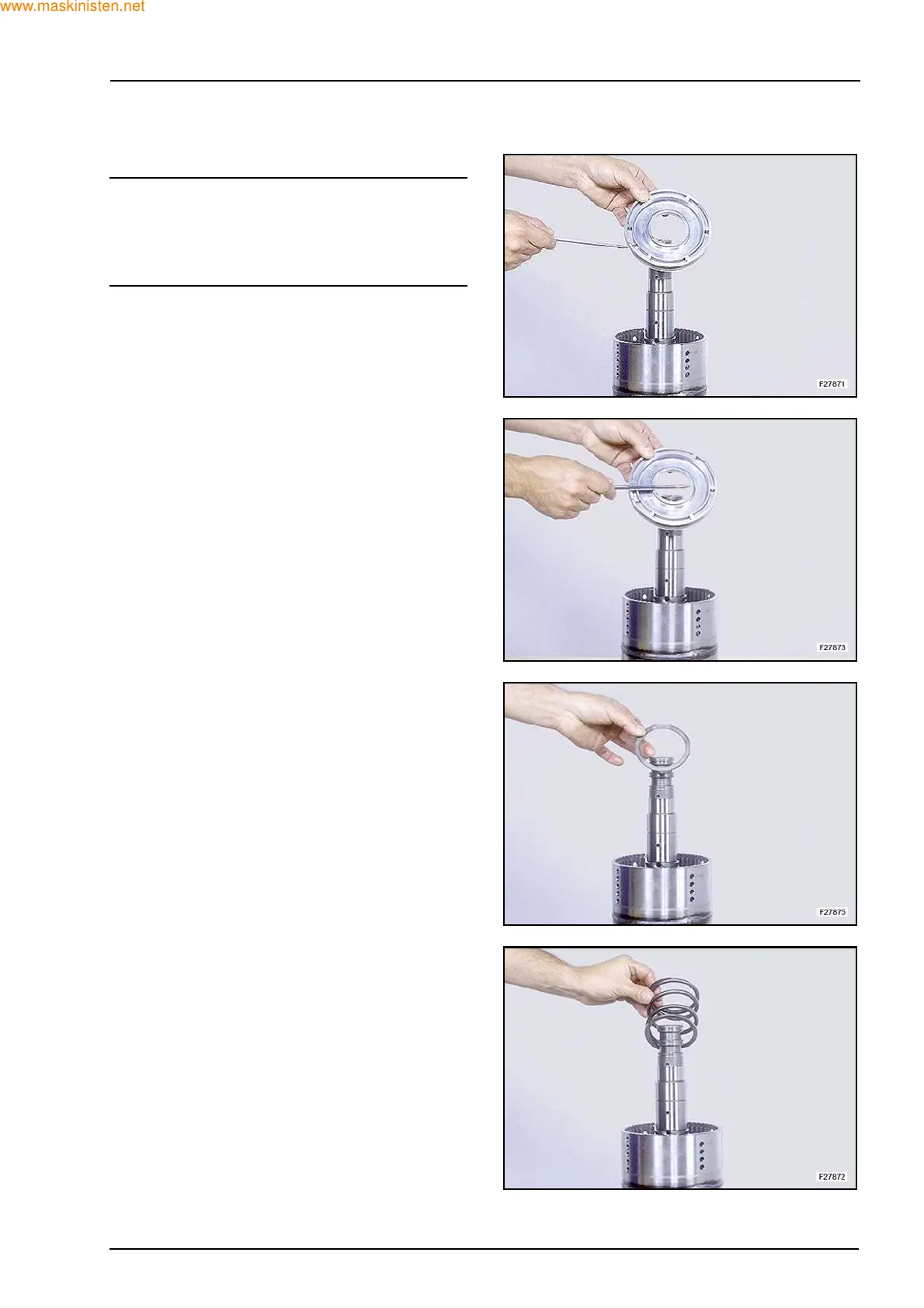

Install the clutch outer seal.
NOTE: ring must be sized before installing in clutch
drum. Sizing is best accomplished by rotating piston
while holding a round object against the new sealing
ring. Rotate piston until sealing ring is flush with out-
er diameter of the piston.
Install the piston inner seal and install the clutch pis-
ton in clutch drum. Use caution as not to damage the
sealing rings.
Install the clutch piston wear plate on the piston.
Install the clutch piston return spring.
