SECTION 21 - TRANSMISSION 205
REVERSE CLUTCH ASSEMBLY

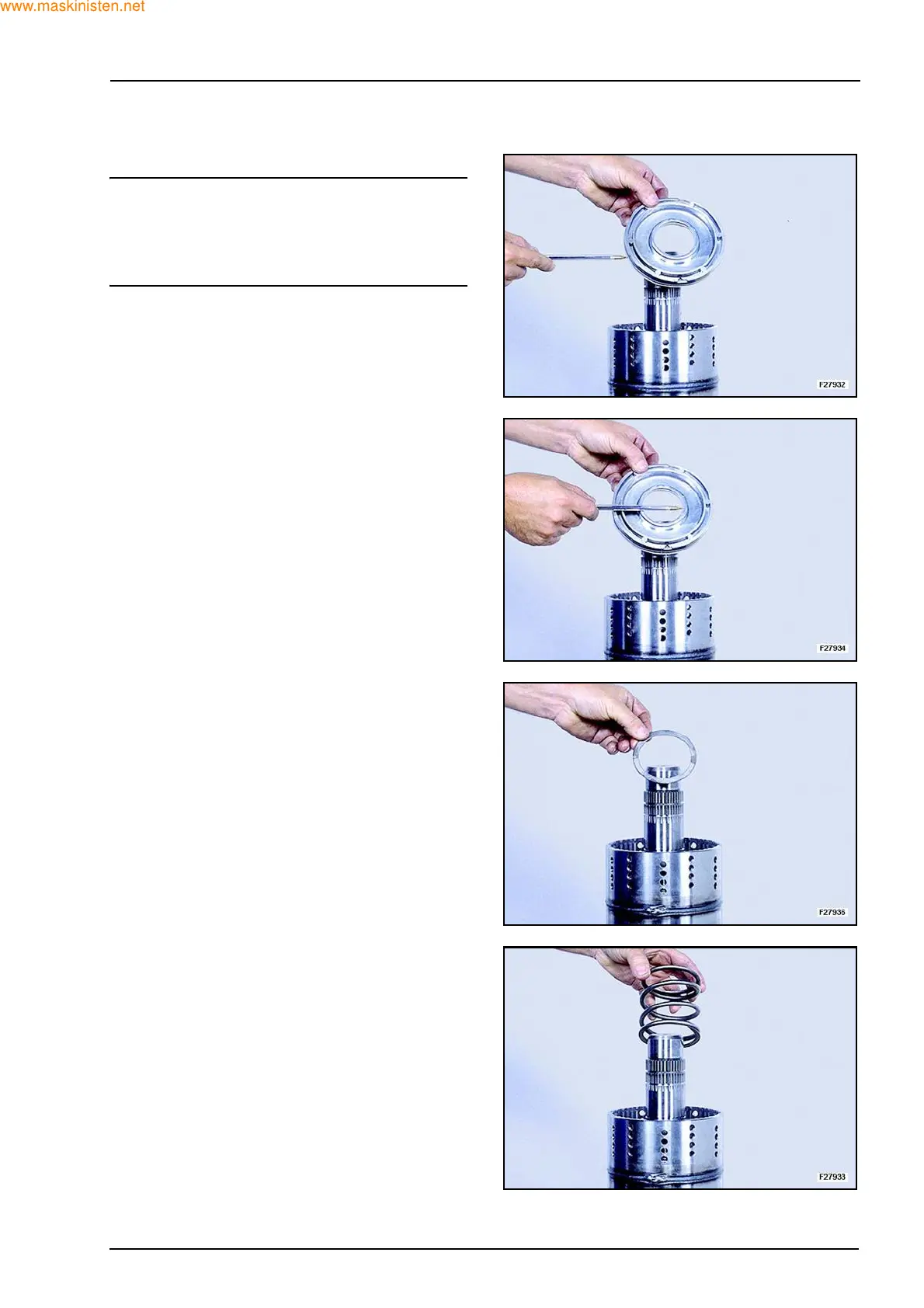

Install the clutch piston outer seal.
NOTE: ring must be sized before installing in clutch
drum. Sizing is best accomplished by rotating piston
while holding a round object against the new sealing
ring. Rotate piston until sealing ring is flush with out-
er diameter of the piston.
Install the clutch piston inner seal. Install the clutch
piston in clutch drum, use caution as not to damage
the sealing rings.
Install the piston wear plate.
Install the clutch piston spring retainer.
