242
SECTION 21 - TRANSMISSION

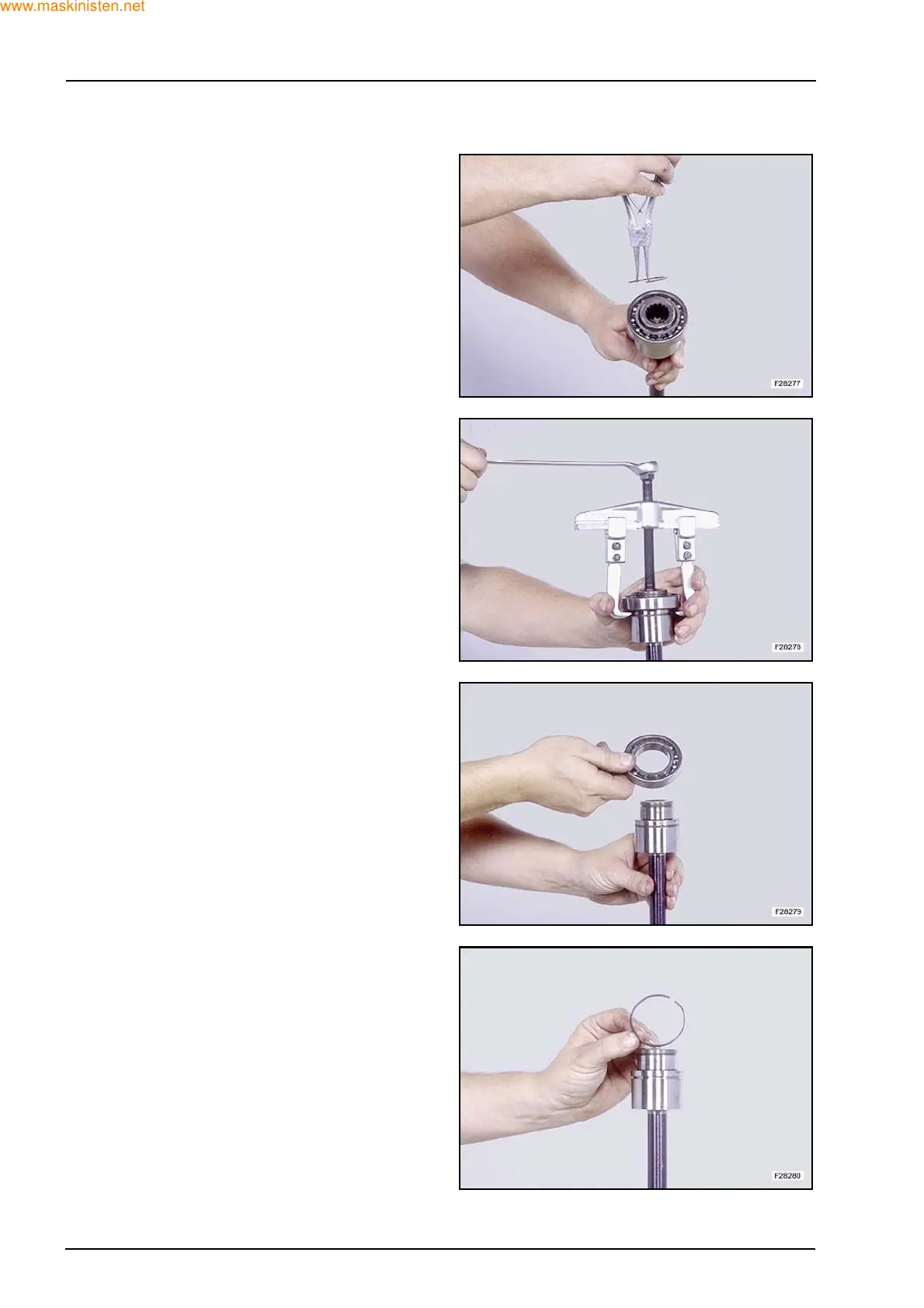

PUMP DRIVE SHAFT DISASSEMBL
Y
Remove the rear bearing snap
ring.
Use bearing puller to
remove the rear bearing
.
Remove the rear bearing from
the shaft.
Remove the sealing ring from the shaft.
www
.maskinisten.net
