SECTION 21 - TRANSMISSION 273
FAULT CODE F4 / BATTERY OVERVOLTAGE
(17 V +)
Over voltage
Even power supply levels up to 30 V will not damage
system components.
Above a power supply of 17 Vdc:
Group Fault 1 - Fault code 7.
NOTE: the speed sensor system will not operate
when an overvoltage is present.
Above a power supply of 24 Vdc:
the analogue signals are not reliable to convert any
more.
Over voltage: when the voltage exceeds 17 Vdc.
Action of the Microprocessor:
Z no upshifts above second gear.
Z direction change while in Forward 3 or Forward 4:
the actual reversal is preceded by a downshift se-
quence until second gear is obtained.
Z brake switch activation always engages 4WD.
NOTE: with voltages below 8 Vdc, the microproces-
sor enters the reset mode.
Intermittent power loss
After power is restored, the microprocessor goes
through the reset mode.

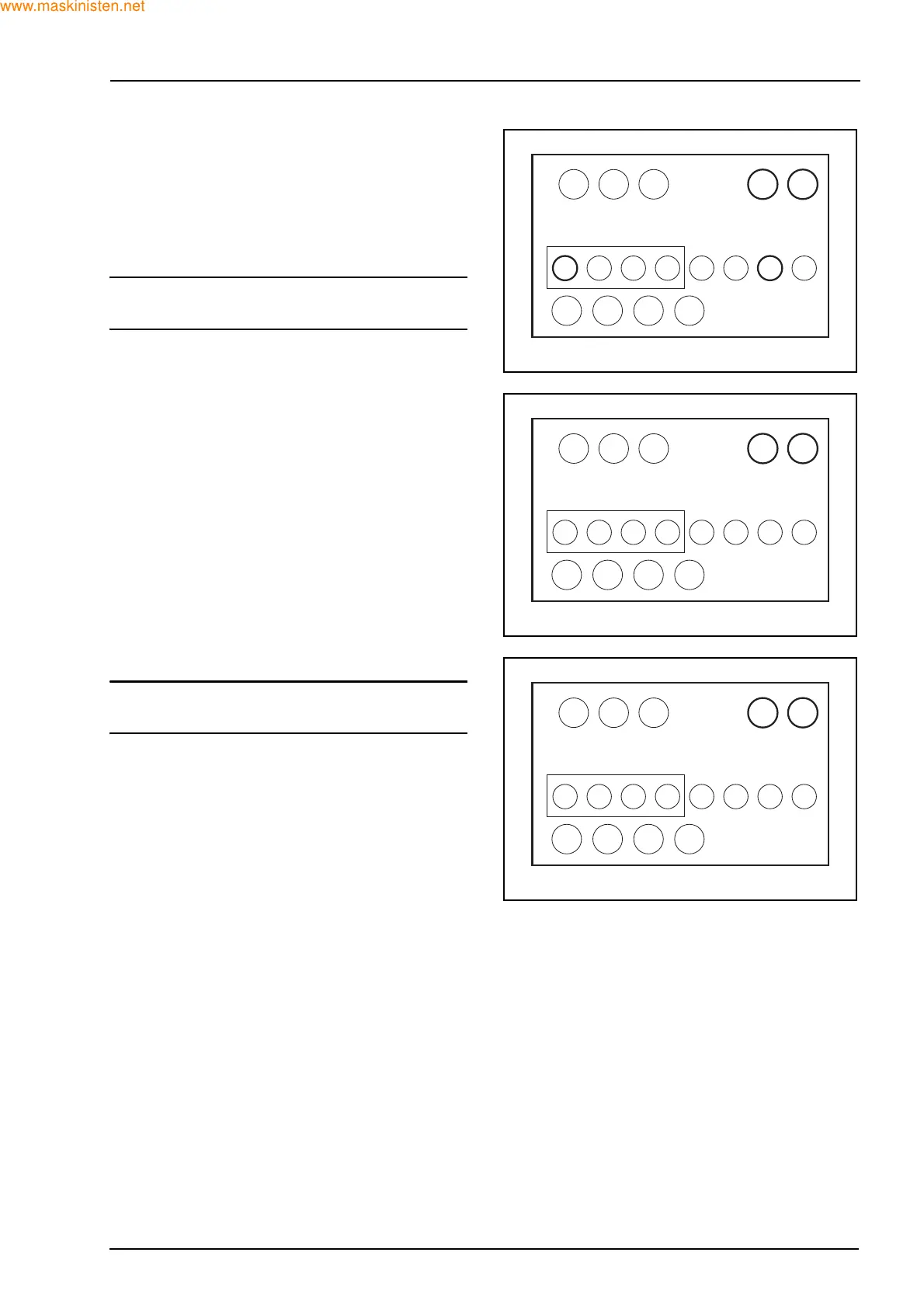

F28362
F
1234
12
Blinks
Blinks
Blinks Slower
Blink
345678
NR T N
F28363
F
1234
12
+ 24 VDC
345678
NR T N
F28364
F
1234
12
- 8 VDC
345678
NR T N
