SECTION 21 - TRANSMISSION 277
OUTPUT FAULT - LED COLOUR
OUTPUT TEST REQUIREMENTS: powershift lever
to be in forward position, twist clockwise to downshift
and turn ignition on.
In this mode, driving is not possible, since all micro-
processor outputs remain off until the test mode is
left.

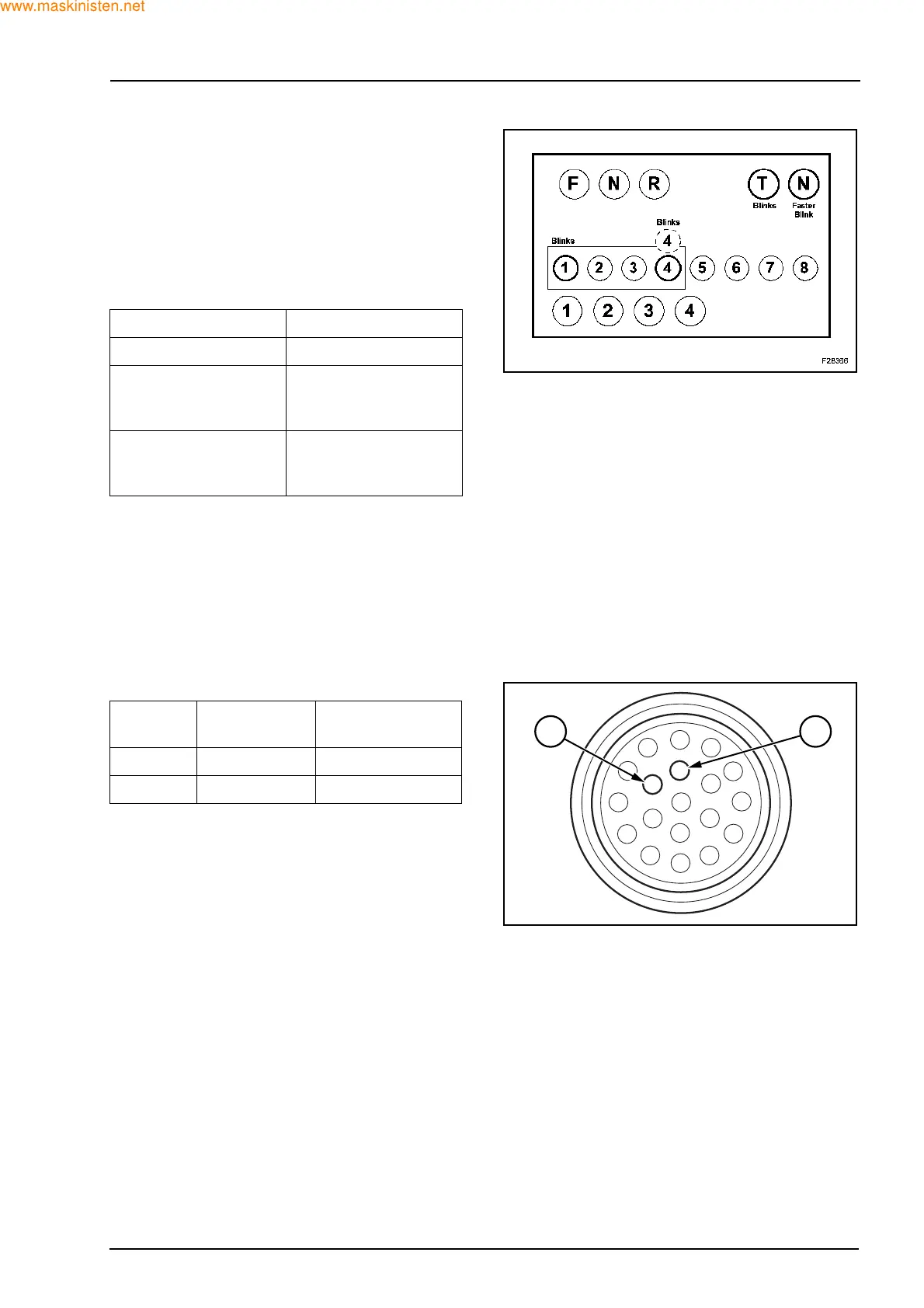

The colour and number of the LED indicates its sta-
tus:
Output test - Fault by LED Number
The LED numbers correspond to the connector out-
put wires as follows:
Example:
LED 1 = Forward solenoid - colour
Orange = (Output not connected or shorted to bat-
tery plus)
COLOUR STATUS
GREEN Output OK
ORANGE Output not connected
or shorted to battery
plus
RED Output shorted to
ground (or to another
output)
LED
NUMBER
OUTPUT
WIRE
OUTPUT
FUNCTION
1 E06 Forward solenoid
2 E07 Reverse solenoid
F4288
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
1 2
