SECTION 21 - TRANSMISSION 279

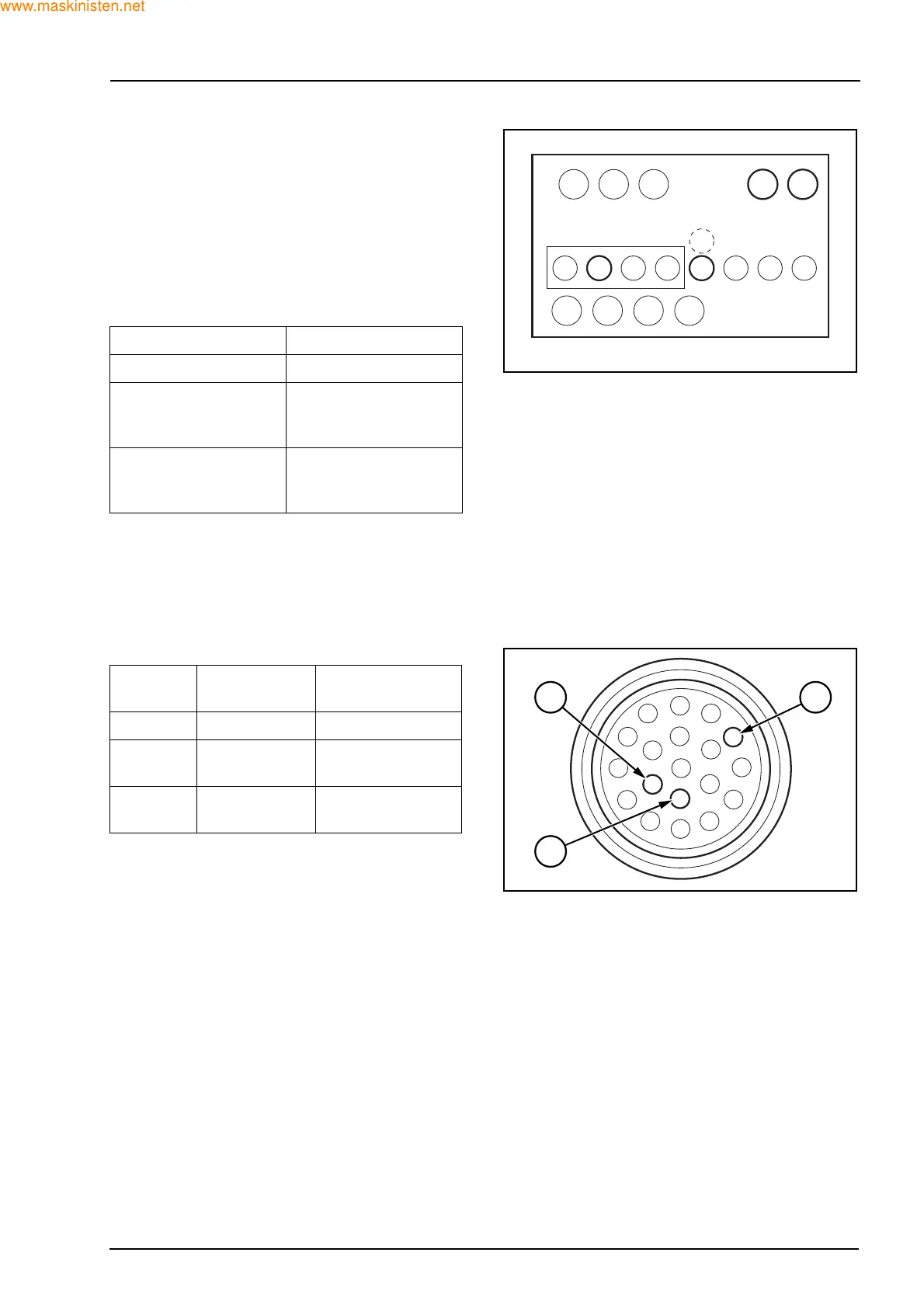

FAULT CODE F7 AND F8 / OUTPUT FAULT -
STATUS BY LED COLOUR
OUTPUT TEST REQUIREMENTS: powershift lever
to be in forward position, twist clockwise to downshift
and turn ignition on.
In this mode, driving is not possible, since all micro-
processor outputs remain off until the test mode is
left.
The colour and number of the LED indicates its sta-
tus:
Output test - Fault by LED Number
The LED numbers correspond to the connector out-
put wires as follows:
Example:
LED colour Red and numbered 3 = 1/2 solenoid out-
put shorted to ground.
COLOUR STATUS
GREEN Output OK
ORANGE Output not connected
or shorted to battery
plus
RED Output shorted to
ground (or to another
output)
LED
NUMBER
OUTPUT
WIRE
OUTPUT
FUNCTION
3 E04 1/2 Solenoid
4 E05 High/low forward
travel solenoid
5 E09 AWD/RWD
solenoid
F28367
F
1234
12
Blinks
Blinks
Blinks Blinks
in Phase
345
5
678
NR T N
F4293
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
4
3
5
