22 SECTION 25 - FRONT AXLES

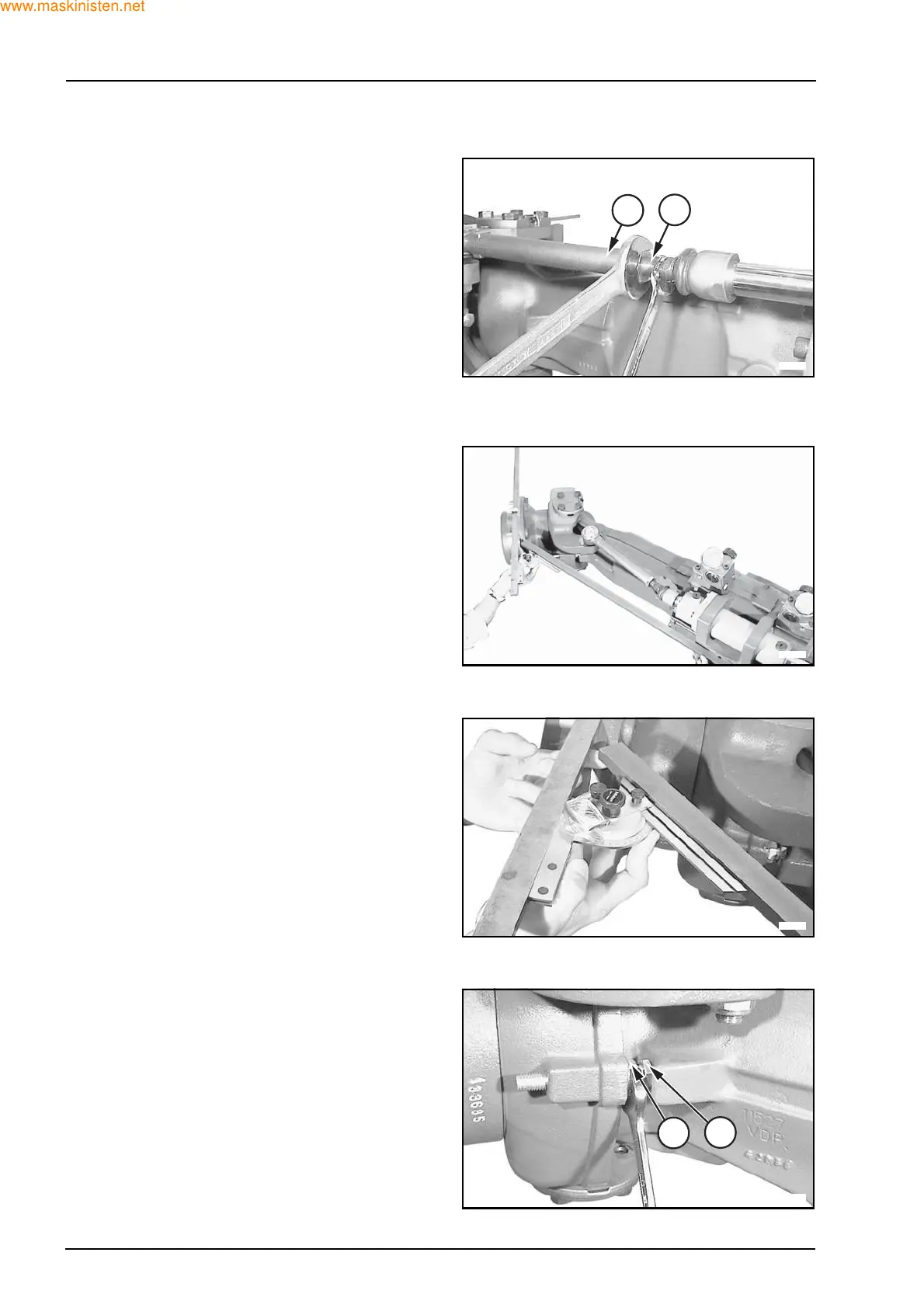

Steering angle adjustment
After adjusting, screw in the locknuts (2) of the guide
rods (1) to the requested tightening torque.
Use the same bars assembled for the toe-in adjust-
ment and a long bar perfectly leaned over the ma-
chined part of the central body (pinion side), so that
the two bars form an acute angle at the maximum
steering.
Adjust a protractor to the requested angle and posi-
tion it on the long bar.
Move a wheel side till it forms, with the two bars, the
angle fixed by the protractor.
Adjust the mechanical steering stop, screwing in or
off the stop screw (4), locking it with the locknut (5)
to the requested tightening torque.
F27344
1
2
F27345
F27346
F27347
5
4
