38 SECTION 25 - FRONT AXLES

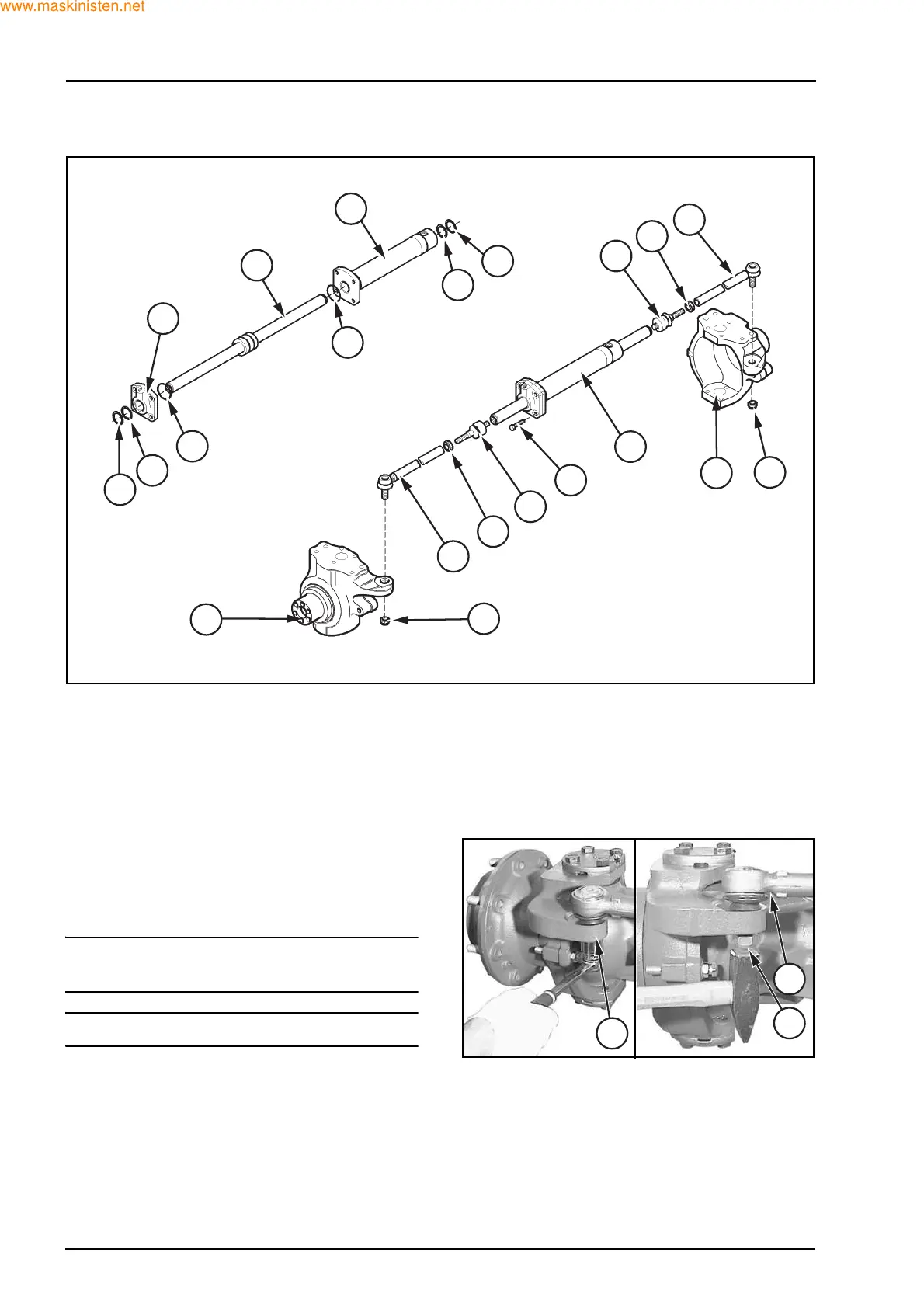

STEERING CYLINDER
Disassembly
Loosen the nut (1) with enough turns till it is protrud-
ing over the threaded pin end of the tie rod (3).
Beat on the nut (1) with an appropriate hammer in
order to disjoin the tie rod (3) from the swivel hous-
ing (2).
SWARNING
Don’t beat on the threaded pin end of the tie rod (3).
NOTE: this is a destructive operation for the nut (1).
Repeat the whole sequence at the other side.
F27227
1
2
12
11
10
13
14
16
17
15
19
20
18
21
3
5
6
4
9
8
7
3
2
1
F27228
