44 SECTION 25 - FRONT AXLES

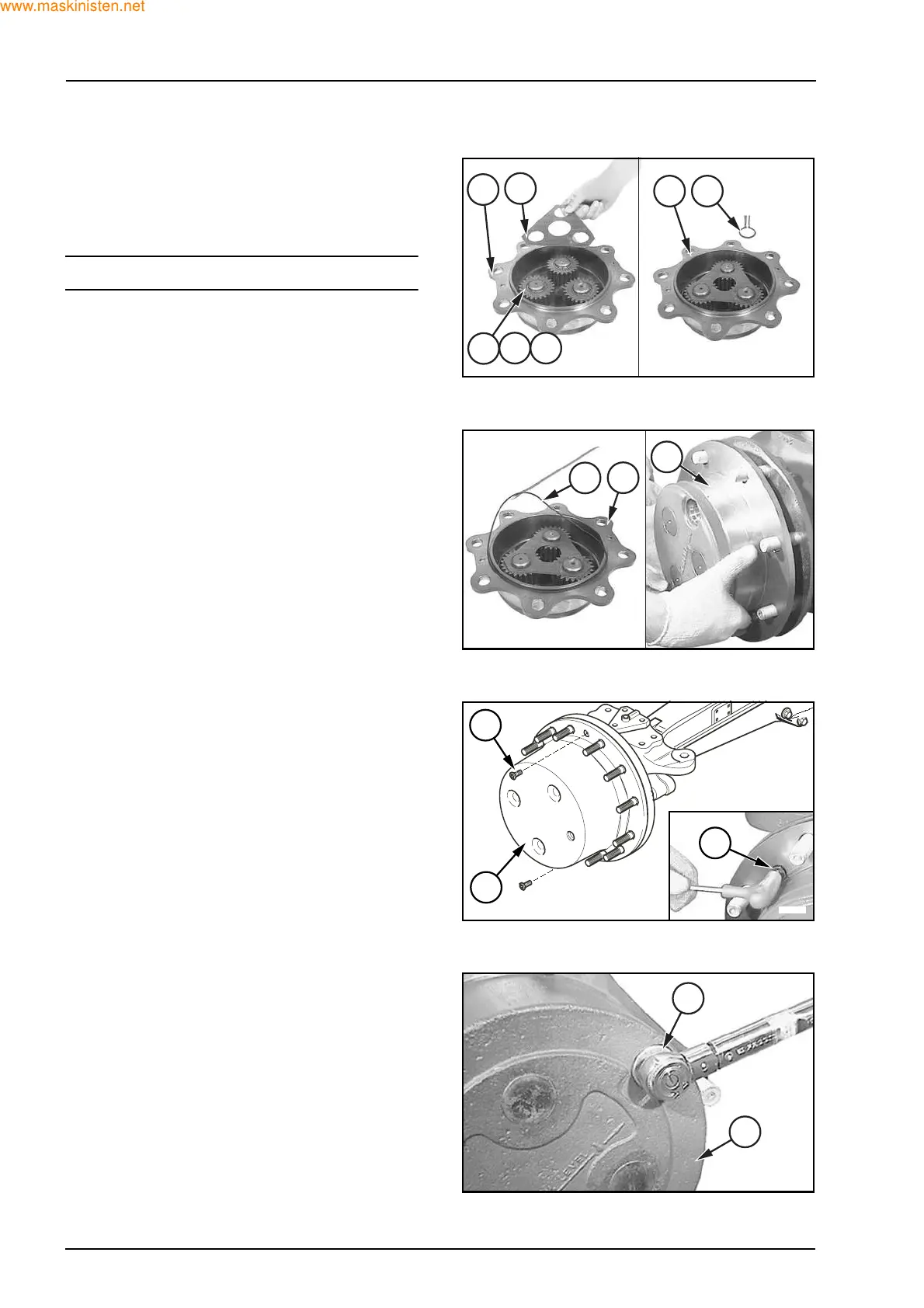

Position the planetary carrier cover (1) on a work-
bench.
Insert the thrust washers (6) and the gears (8) into
the planetary carrier pins.
Insert the needle bearings (7) into the gears (8).
NOTE: grease well the needles.
Assemble the triangular plate (9) and the related
snap rings (10).
Insert a new O-ring (5) on the planetary carrier cover
(1).
Assemble the planetary carrier cover (1) onto the
wheel hub.
Assemble the screws (3) and tighten to the specified
torque.
To up the oil on the wheel hub.
Assemble the plug (2) onto the planetary carrier
cover (1) and tighten to the specified torque.
F27245
101
9
1
6
7 8
F27246
5
1
1
F27241
3
3
1
F27247
2
1
