46 SECTION 25 - FRONT AXLES

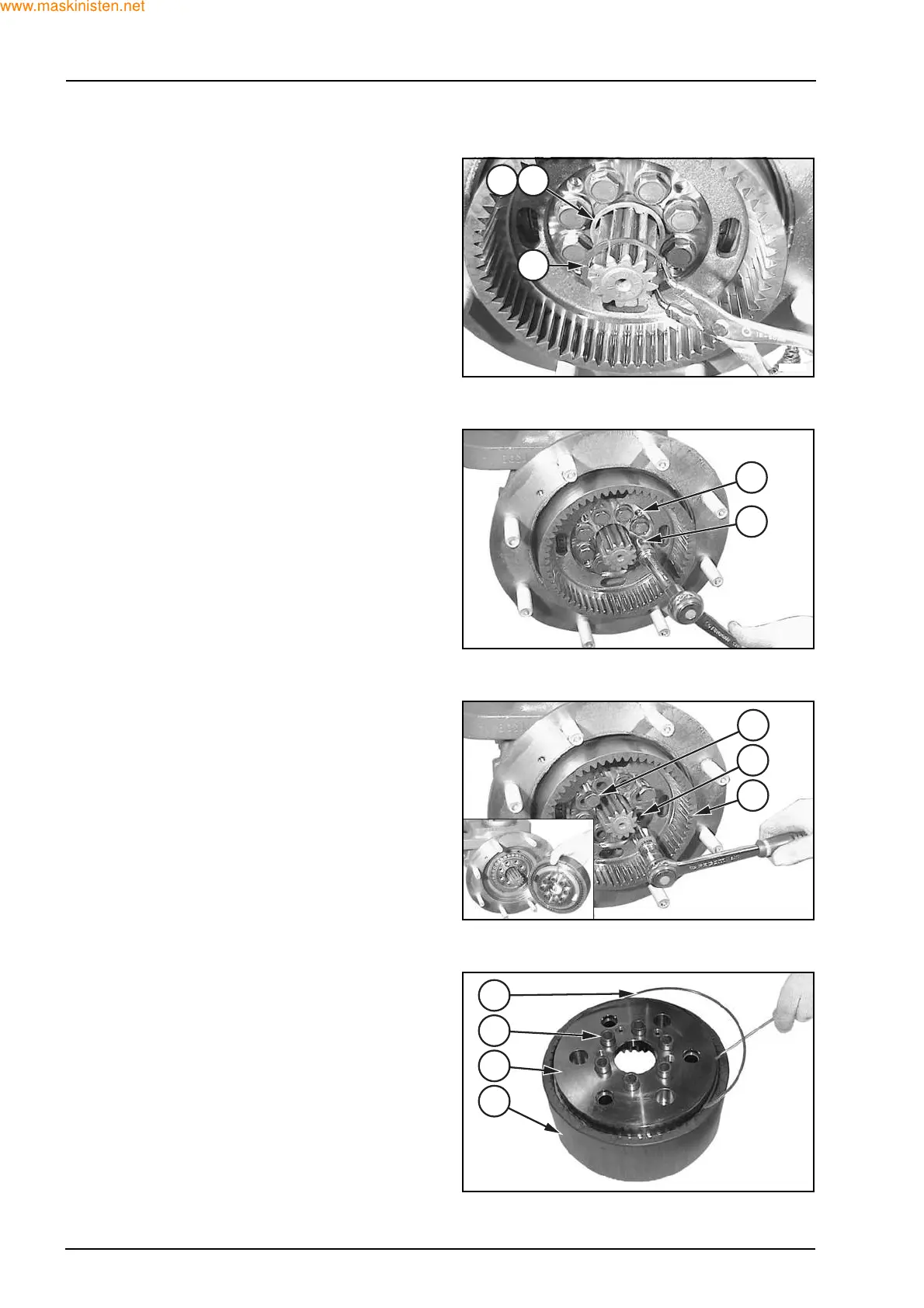

Remove the snap ring (1) from the cardan shaft.
Collect the washers (2) and (3) of the cardan shaft.
Unscrew and remove the fastening screws (5) from
the ring gear carrier (7).
In order to extract the ring gear carrier from its hous-
ing, screw in two of the just removed screws (5) in
the threaded extraction holes.
Extract and remove the ring gear carrier (7) together
with the ring gear (4).
Remove the retaining ring (8) and separate the ring
gear carrier (7) from the ring gear (4).
Only if necessary, remove the bushes (6) from the
ring gear carrier using a hammer and the special
tool 380002223.
F27250
1
23
F27251
7
5
F27253
7
4
5
F27252
6
8
7
4
