48 SECTION 25 - FRONT AXLES
Assembly

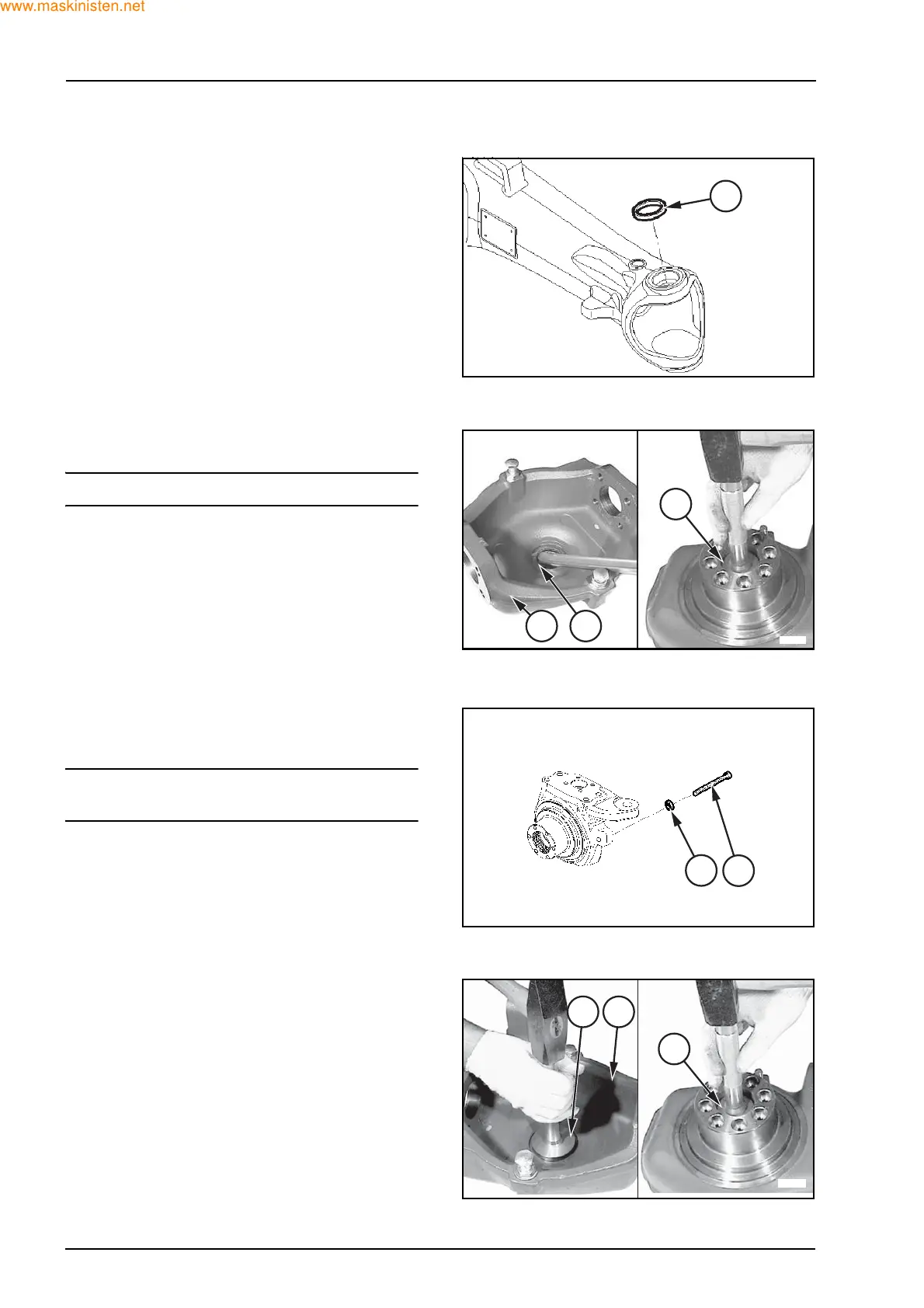

Remove the spacer (27) from the upper king pin
housing.
Position the swivel housing (14) on a flat surface
and extract the seal ring (23) with a lever.
NOTE: destructive operation for the seal ring (23).
Turn the swivel housing and take the bush (22) out,
using a suitable drift and a hammer.
If it has been previously removed, reassemble the
steering stop composed by the screw (21) and nut
(20).
NOTE: do not tighten the nut (20) until the steering
angle adjustment has been done.
Insert the bush (22) into the swivel housing (14) with
the special tool 380002660 and a hammer or a
press.
Insert the seal ring (23) into the swivel housing (14)
with the special tool 380002661 and a hammer.
Grease carefully the seal ring (23).
F27258
27
F27259
22
2314
F27260
20
21
F27261
1423
22
