SECTION 25 - FRONT AXLES 51

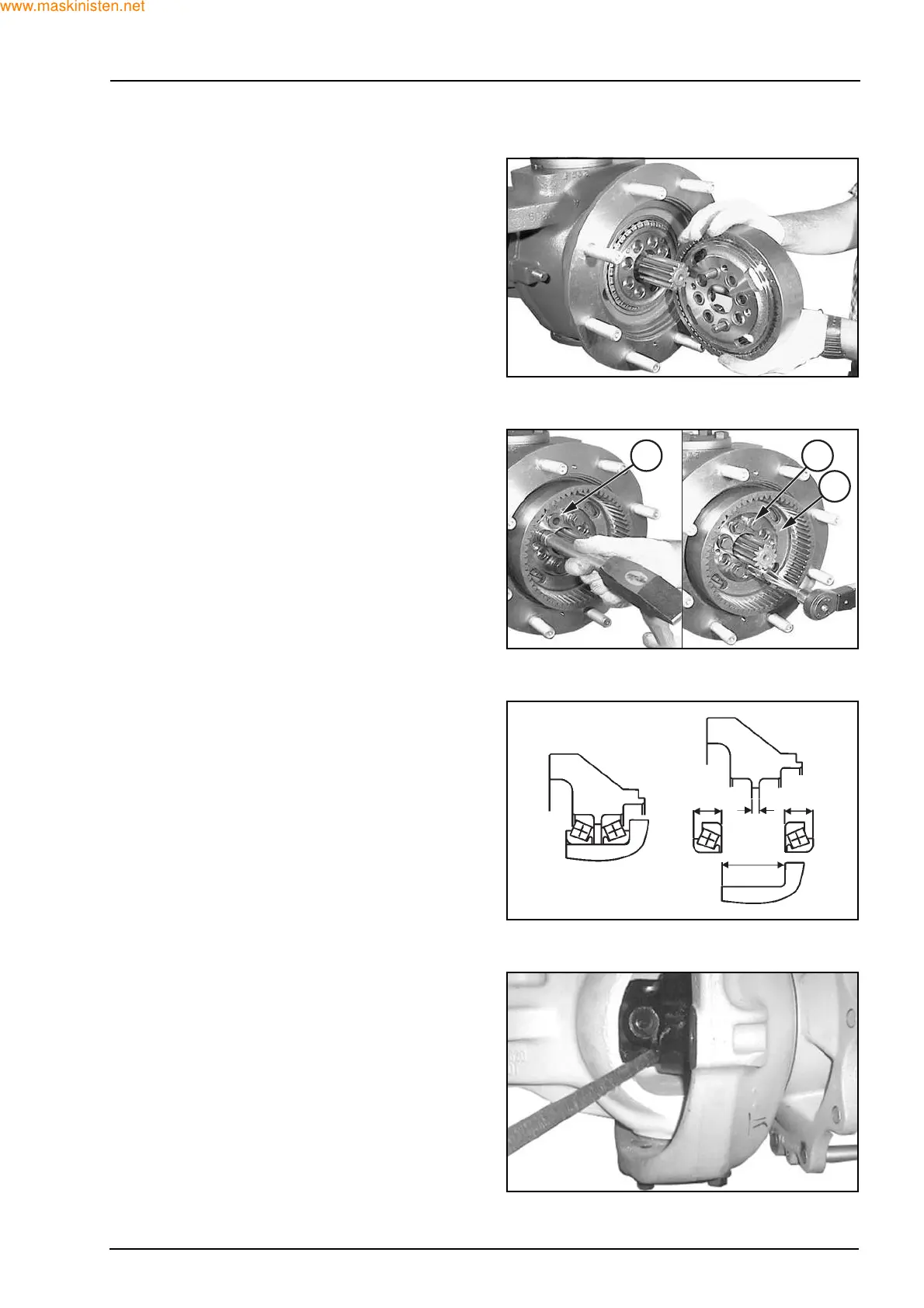

Assemble the ring gear carrier assy on the wheel
hub using the two projecting bushes as dowel pins
and screw in the relevant screws in order to put the
ring gear in contact with the wheel hub.
Insert all the hub dowel bushes (6) completely with
the special tool 380002223 and a hammer.
Apply sealant on fastening bolts (5) thread.
Assemble the screws (5) fastening the ring gear car-
rier (7) and tighten to the specified torque.
The special operation “Set Right” of the bearings (9)
and (12) does not require preload or backlash ad-
justment. Anyway, before assembling new compo-
nents check the indicated dimensions.
A= 11.975 ÷ 12.025
B= 52.229 ÷ 52.279
C= 20.000 ÷ 20.100
Insert a lever between the swivel housing and the
axle shaft and fit into the cardan shaft.
With the lever, push the cardan shaft in the direction
of the wheel hub to allow an easier fitting of the re-
taining ring.
F27268
F27269
7
6
5
F27270
A
B
CC
F27271
