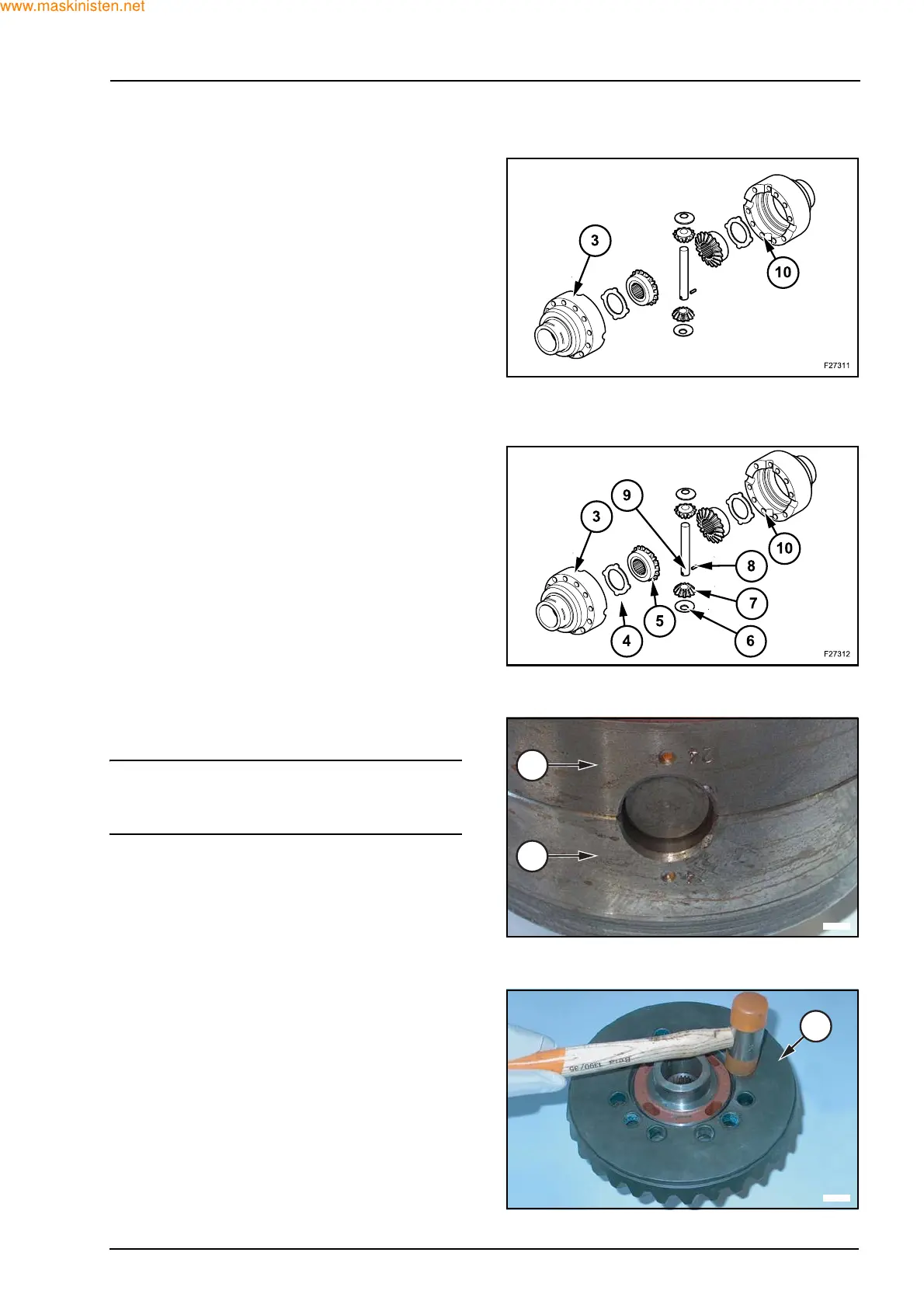

SECTION 25 - FRONT AXLES 65
Assembly
Assemble the two half housings of the differential
unit (3) and (10).
Disassemble all the components.
Check the operating and wear conditions of the
components.
Position a half housing (3) on a workbench and as-
semble all inner components: the discs (4), the
gears (5), the shaft (9), the gears (7), the spherical
washers (6) and the pin (8).
Assemble the two half housings of the differential
unit (3) and (10).
SWARNING
Carefully check that the marks of both differential
half housings coincide.
Assemble the ring gear (11) by means of a hammer.
F27310
3
10
F27314
11
