74 SECTION 25 - FRONT AXLES

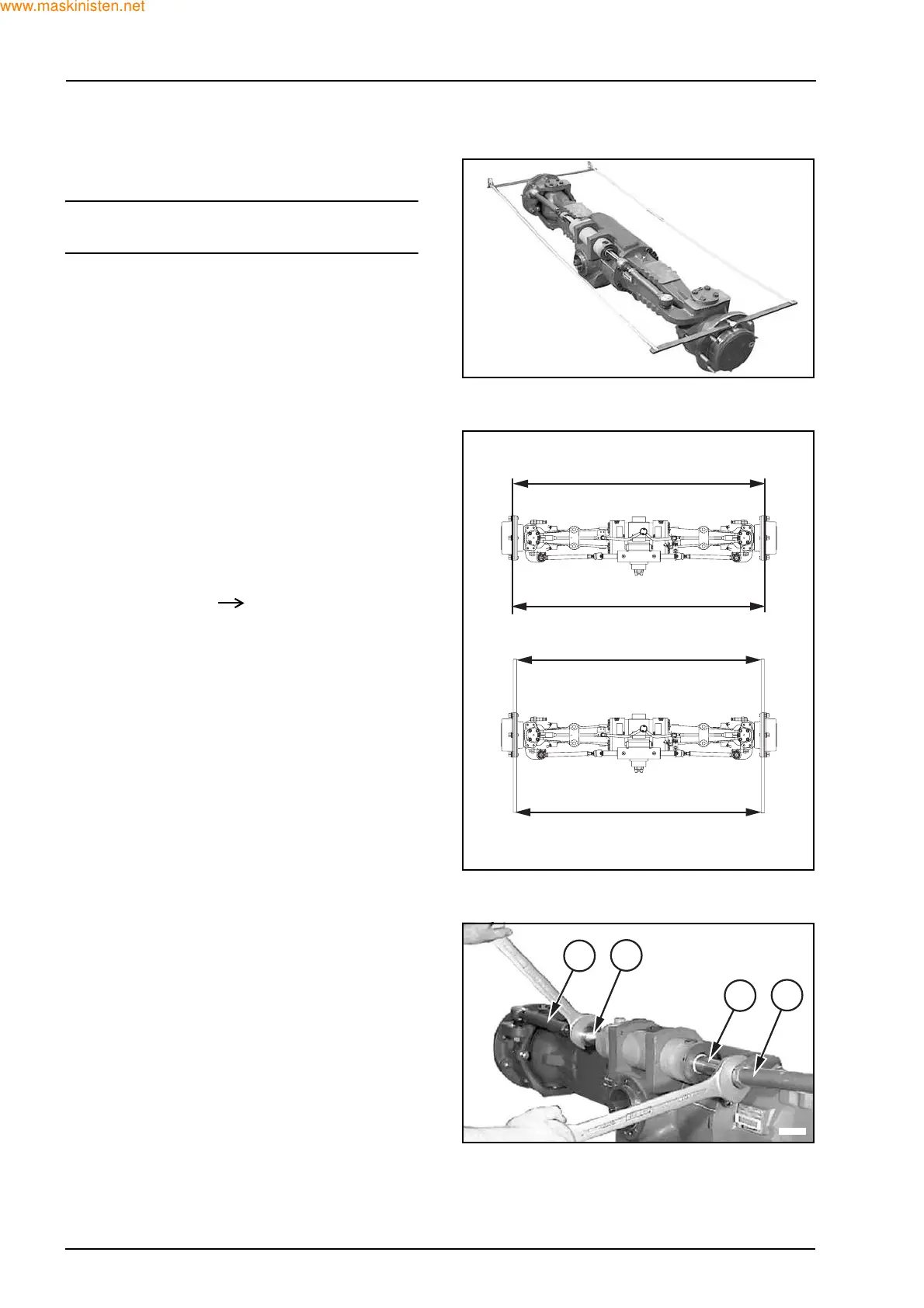

Measure the distance in mm M between the bars
ends with a tapeline.
NOTE: keep the minimum value, swinging the
measurement point.
Check that the difference of the measurements be-
tween the wheel hubs diameters ends is within the
requested tolerance range.
The nominal toe-in value (A) is referred to the exter-
nal diameter of the wheel hubs flange, therefore the
measured value (M) at the bars ends must be relat-
ed to the ratio between length of the bar and flange
diameter:
nominal toe-in = A measured toe-in = M
If toe-in is incorrect, operate with two wrenches on
the guide rods (1) screwing in and out the two joint
tie rods (3) equally till the toe-in is within the request-
ed tolerance.
F27341
0
- 2
0
- 5
F27342
M
0
- 5
A
0
- 2
A
M
1
3
3
1
F27343
