92 SECTION 25 - FRONT AXLES
Assembly

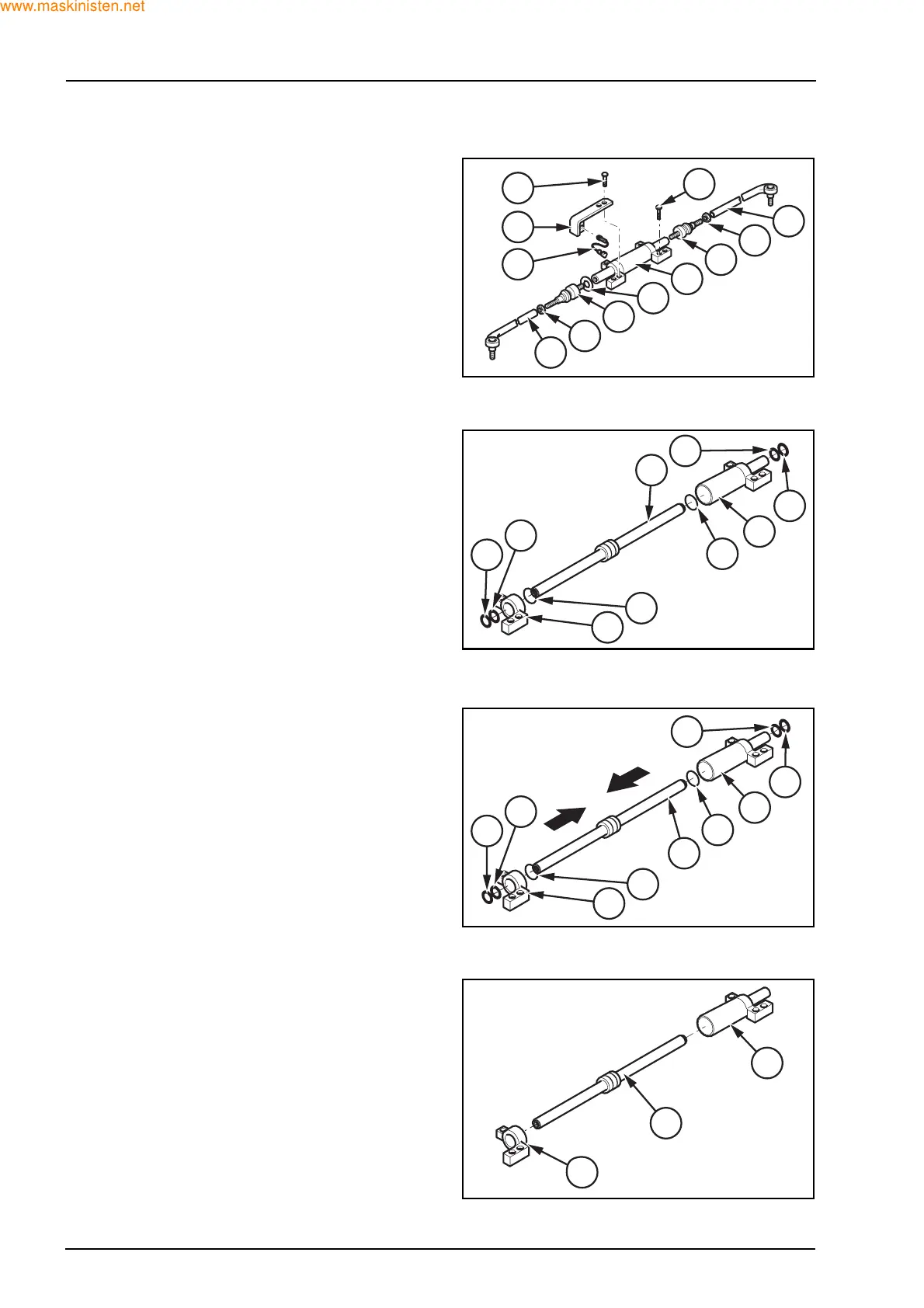

Remove the tie rods (3) and (10) by loosening the
nuts (4) and (9) with a suitable wrench, then check
their conditions.
Unscrew the fastening screws (13) and take the
steering cylinder (7).
Remove only parts that need to be overhauled and/
or replaced.
Remove the cylinder head (18) from the cylinder
body (22) and remove it from the rod (20).
Remove the rod (20) from the cylinder body (22).
Remove all the seals and O-rings (16, 17, 19, 21, 23
and 24) from the cylinder body (22), the cylinder
head (18), and the rod (20).
Assemble new seals and O-rings (16, 17, 19, 21, 23
and 24) on the cylinder head (18), on the rod (20)
and on the cylinder body (22).
Assemble the cylinder head (18) on the rod (20).
Slide the pre-assembled rod (20) into the cylinder
body (22).
F27397
6
7
4
3
5
8
9
10
14
13
15
13
F27398
21
22
18
19
16
17
20
23
24
F27392
21
20
22
18
19
16
17
23
24
F27399
20
22
18
