Case 580SR+ - Page 499

SECTION 27 - REAR AXLE 7

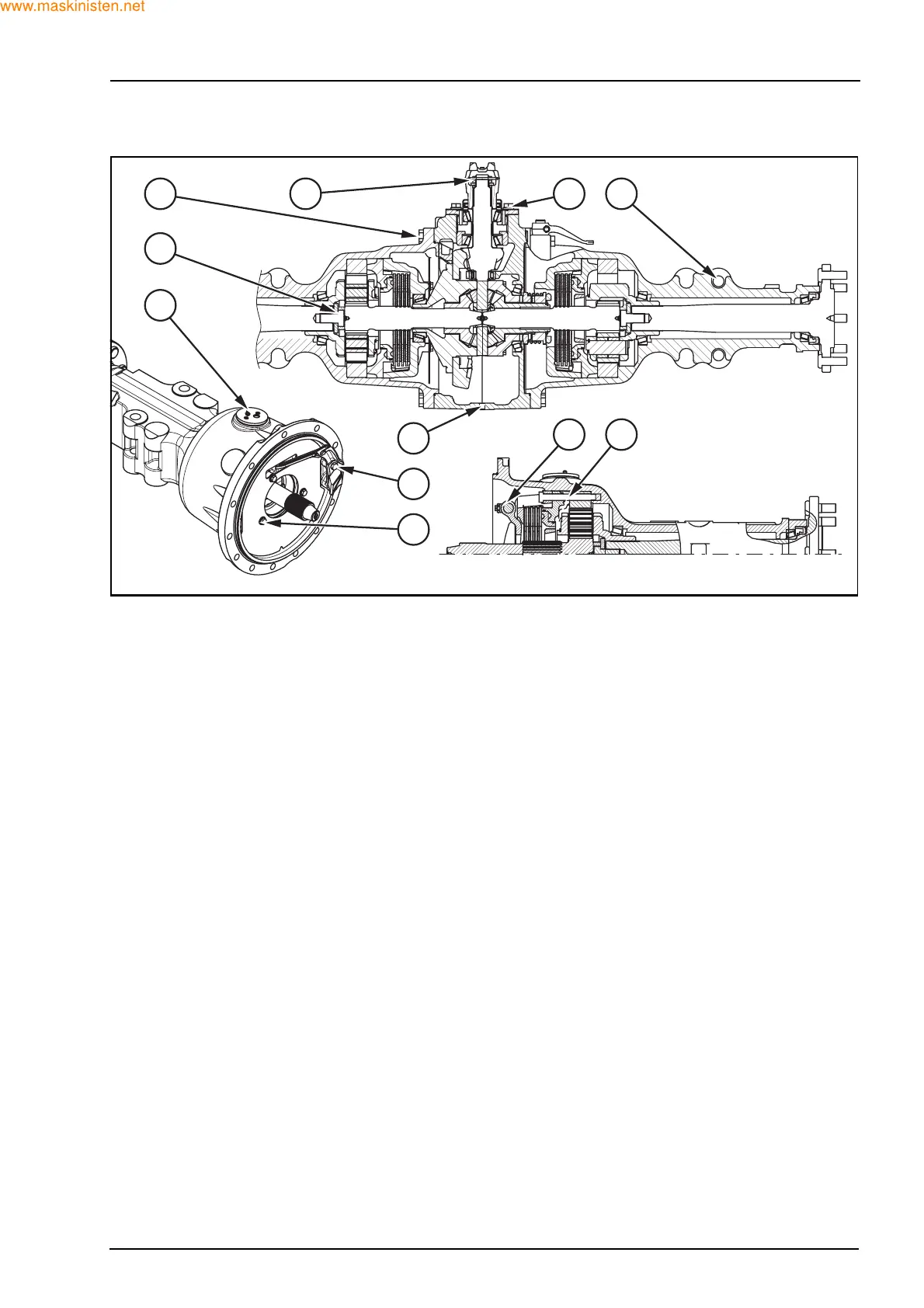

MOUNTING SCREW TORQUE
1. Screw of half shaft: 554÷626 Nm
2. Screw of axle assy - rear RH or LH: 190÷231 Nm
3. Screw of front flange: 136÷170 Nm
4. Screw to fixed rear axle to the chassis: 800 Nm
5. Screw: 11÷14 Nm
6. Screw of block: 57÷76 Nm
7. Screw of baffle oil: 43÷51 Nm
8. Plug: 27÷34 Nm
9. Screw: 32÷41 Nm
10. Screw of housing rear brake: 204÷245 Nm
11. Right nut: 406 Nm
F29551
5
8
6
7
1
2 3 4
9 10
11
