26 SECTION 27 - REAR AXLE

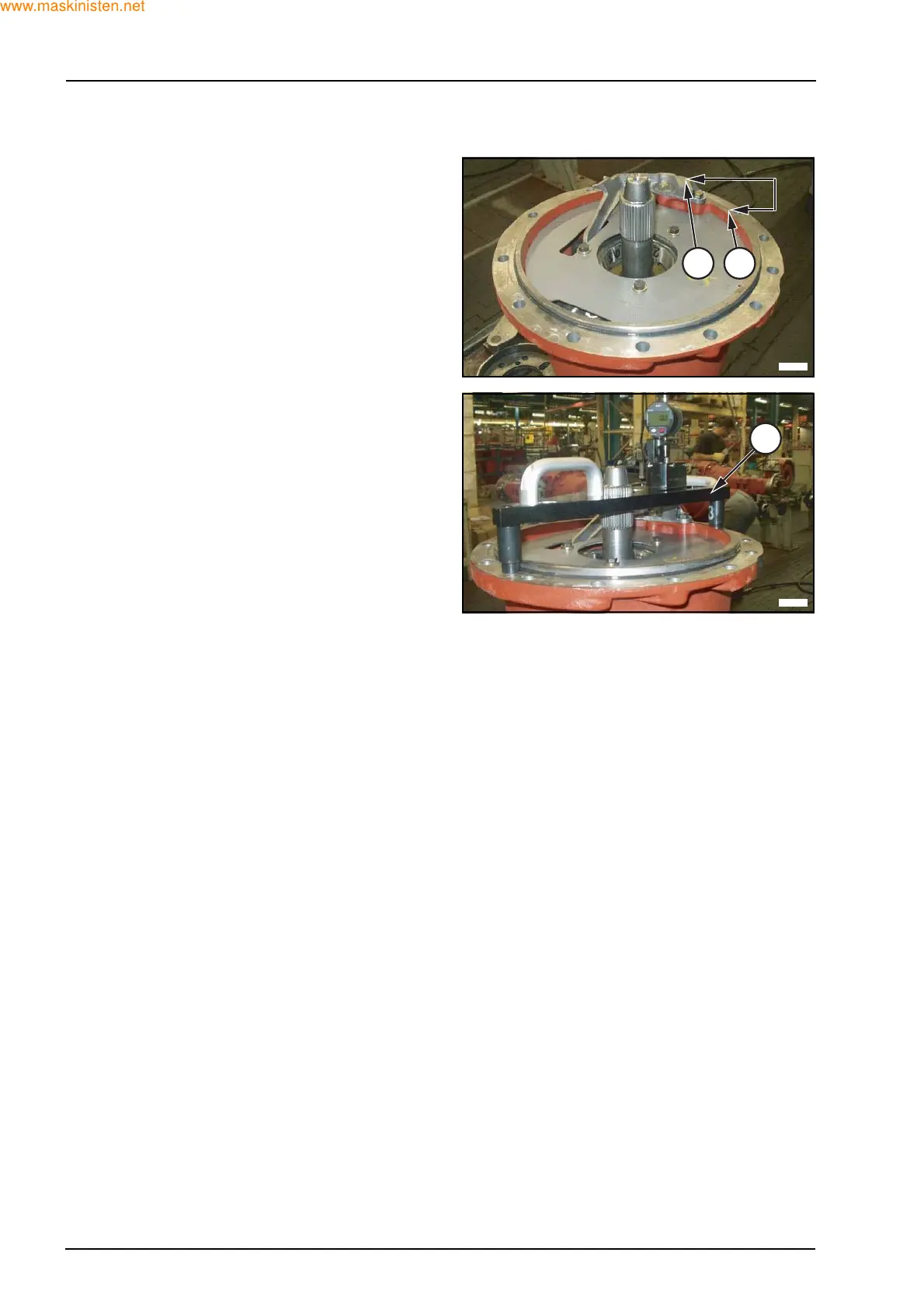

Z Assemble the thrust block to the trumpet housing
(NO SHIMS mounted in between the parts!).
Check the distance from the thrust face of the
thrust block (1) to the centre housing mounting
face of the trumpet housing (2) (dimension X).
B: gauge on trumpet housing.
S= Y-X will give you the minimum gap between the
thrust block and the back of the differential bevel
gear. Based on this calculation and the attached
shimming chart people find the shims to be used.
Shim pack thickness to be checked prior installation.
Disassemble the thrust block, fit the shim pack in
between the thrust block and the trumpet housing
and reassemble thrust block again.
Check free rotation of axle input on the completed
axle sub-group.
F29639
X
1 2
F29640
B
