30 SECTION 27 - REAR AXLE

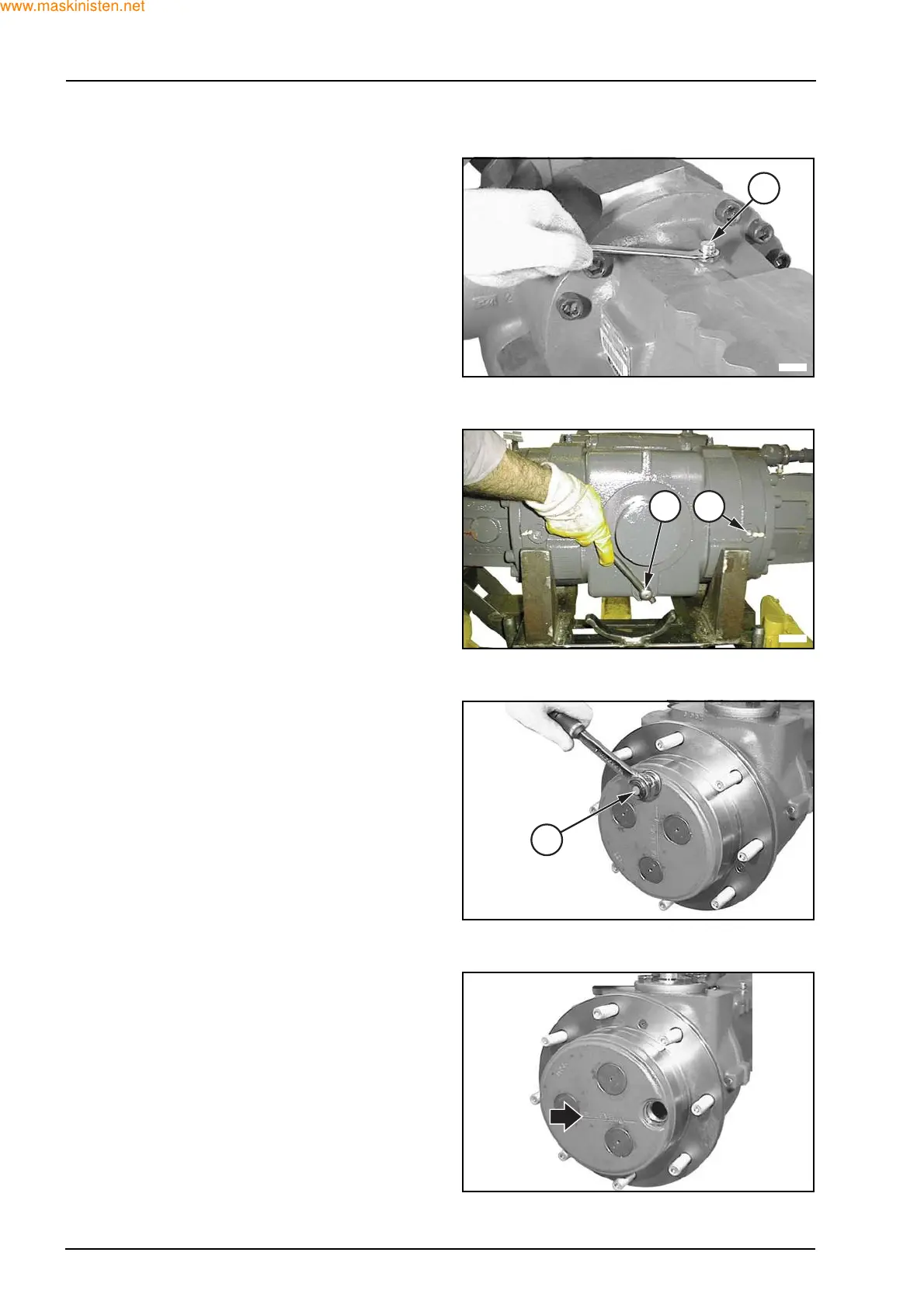

Before draining the oil, loosen the oil breather (2) to
release possible internal pressure, then tighten the
plug to the requested torque.
To drain the oil from the central body unscrew the
plug of the draining hole (4) and level hole (1).
Then tighten them to the specified torque.
Before draining the oil, position the wheel hub so
that the filler cap is in the highest point, then loosen
the plug (3) to release possible internal pressure.
Position the wheel hub so that the filler cap is on the
centre line of the horizontal axis.
Check oil level and top up if necessary.
Tighten the plug with a torque wrench to the pre-
scribed torque.
F28005
2
F28006
4 1
F28007
3
F28008
