48 SECTION 27 - REAR AXLE

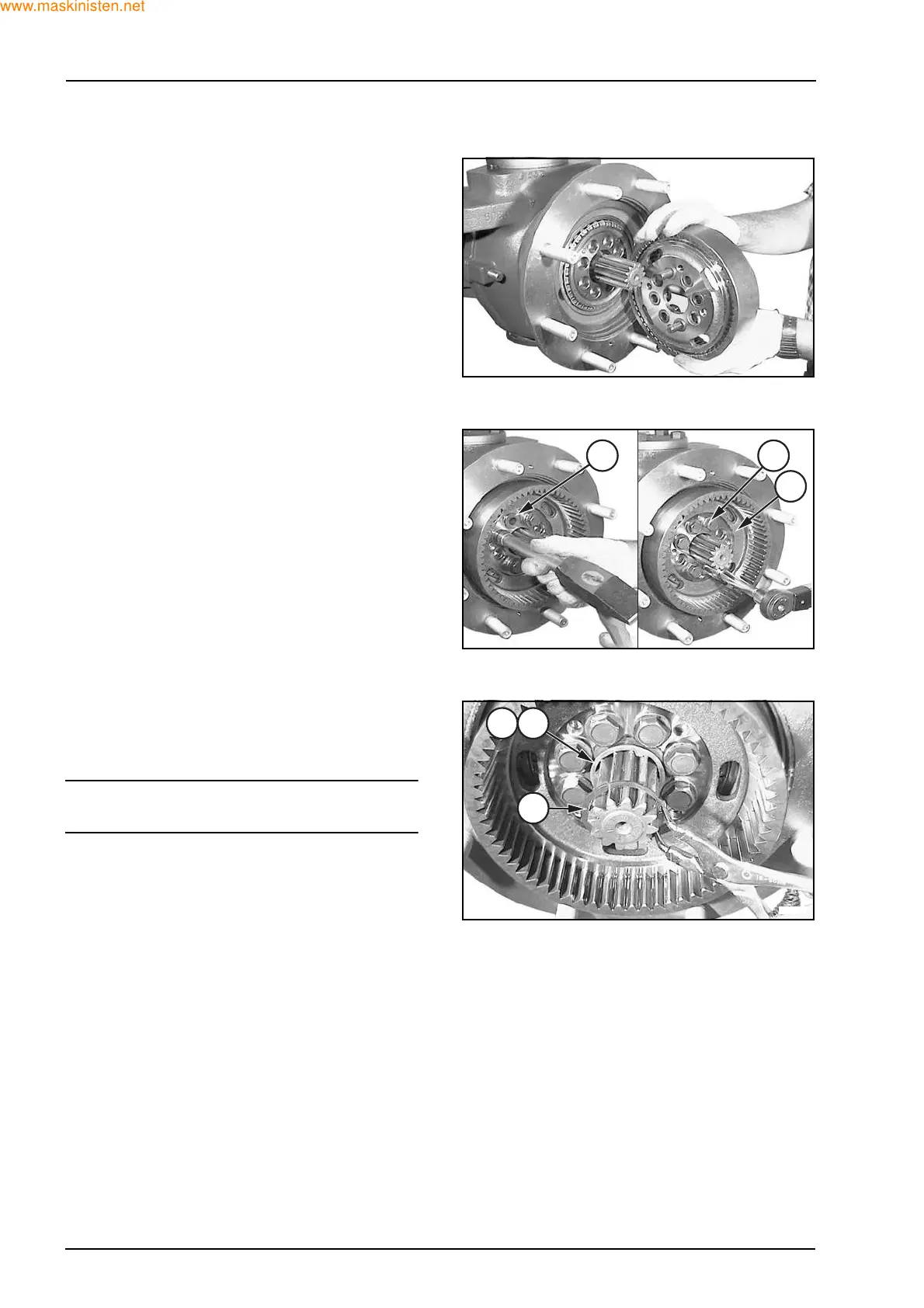

Assemble the ring gear carrier assy on the wheel
hub using the two projecting bushes as dowel pins
and screw in the relevant screws in order to put the
ring gear in contact with the wheel hub.
Completely insert all bushes (6) using the special
tool 380002667 and a hammer.
Apply sealant on fastening bolts (5) thread.
Assemble the wheel carrier (7) fastening screws (5)
and tighten to the specified torque.
Assemble the washers (2) and (3) on the end of the
cardan shaft.
Insert the snap ring (1) on the end of the splined hub
and push it into its seat.
NOTE: check that the snap ring (1) is correctly fitted
in its seat.
F27268
F27269
7
6
5
F27250
1
23
