12 SECTION 33 - BRAKES SYSTEM

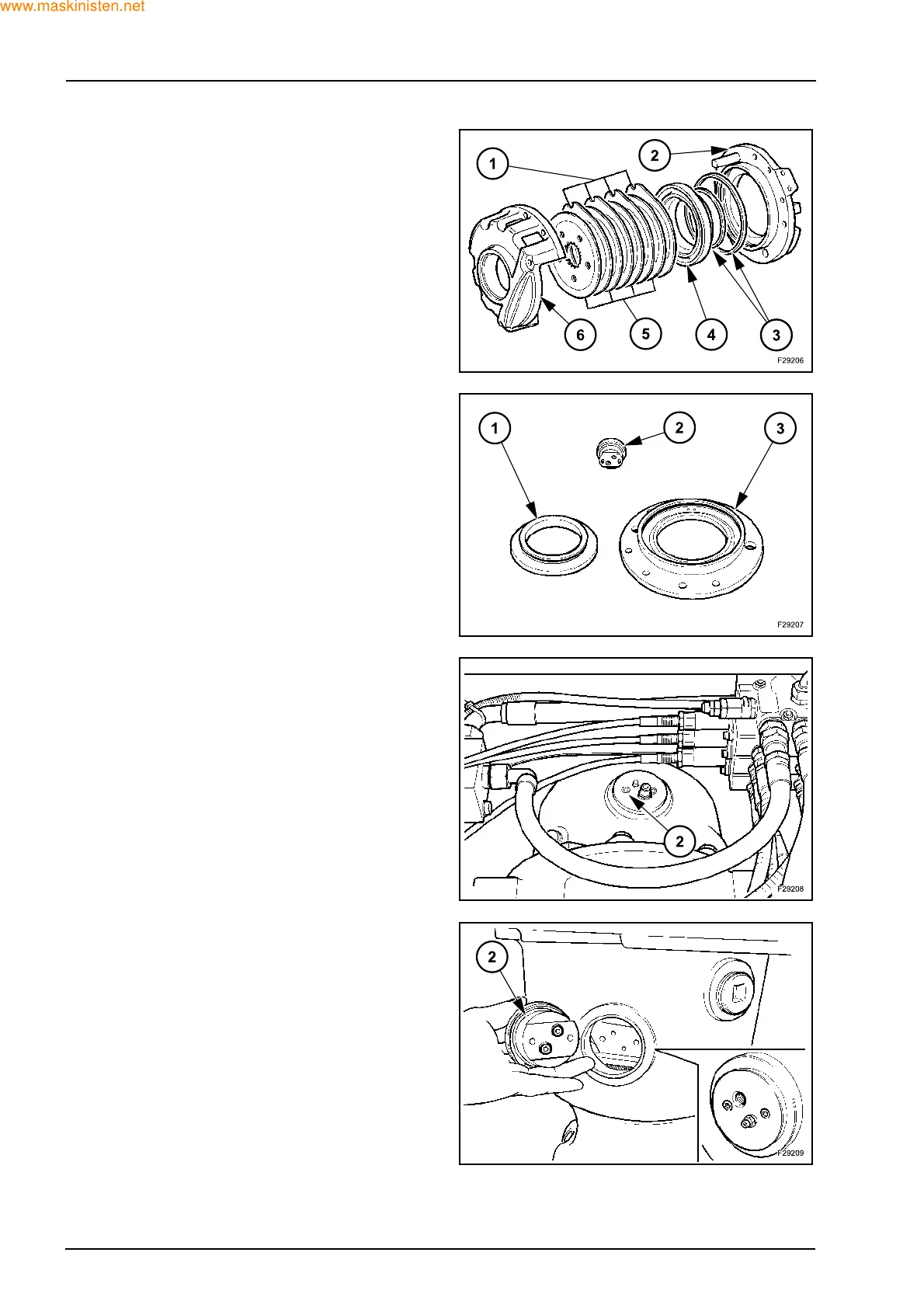

Discs and piston layout
1. Steel plates
2. Outer housing
3. Seals
4. Piston
5. Friction plates
6. Outer housing
Piston and seals
1. Piston
2. Fitting
3. Outer housing
The brakes are supplied oil from the brake pedal
tank and into the axle by tubes into each half axle
through the fitting (2) which is sealed to the piston by
two O-rings.
When the fitting (2) is removed ensure the O-rings
are replaced with new.
