Case 580SR+ - Page 647

SECTION 35 - HYDRAULIC SYSTEM 57

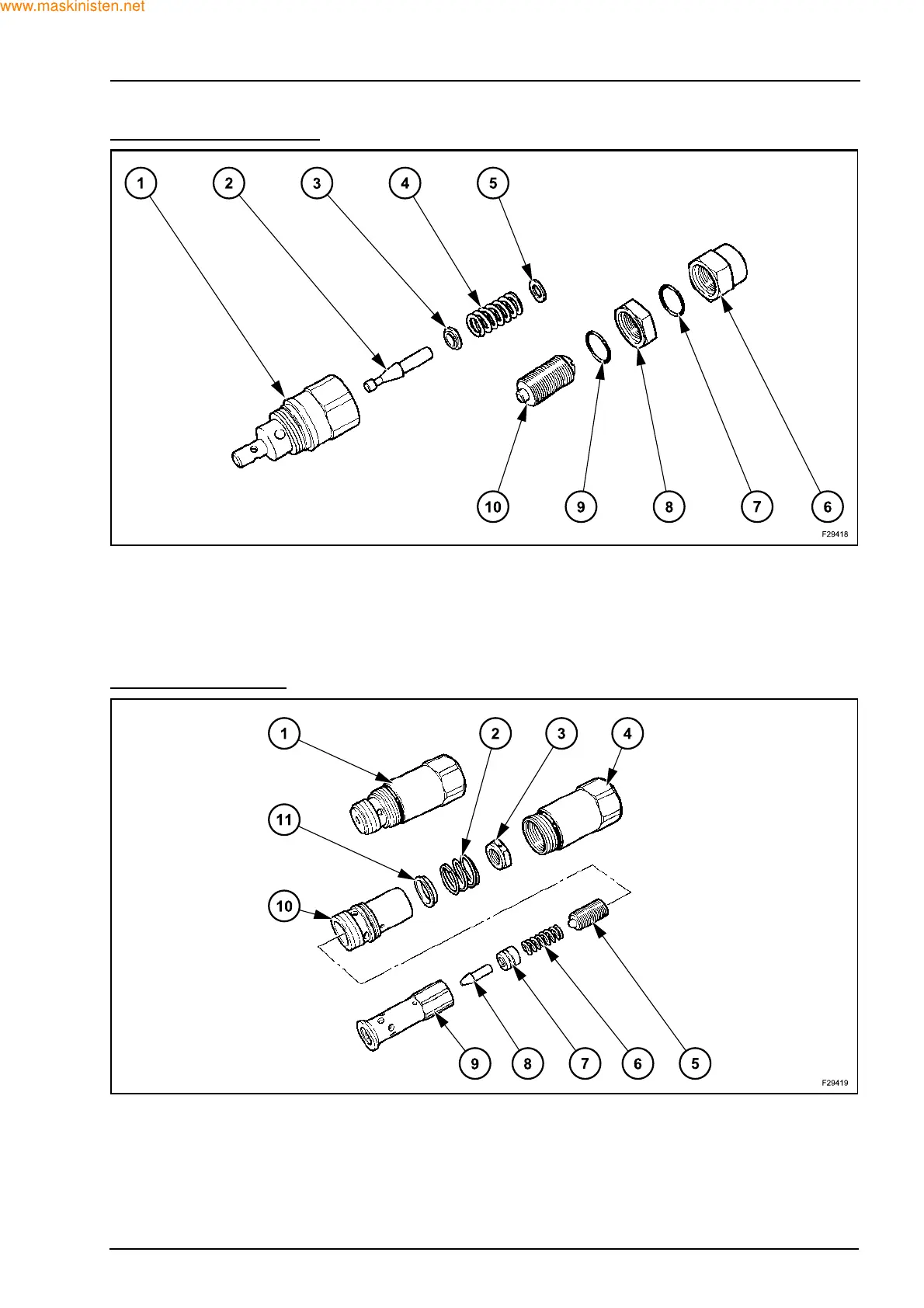

Direct acting circuit relief valve
1. Body
2. Poppet
3. Spring
4. Spring
5. Shim
6. Cover
7. O-ring
8. Nut
9. O-ring
10. Adjuster screw
Loader bucket relief valve
1. Relief valve assembly
2. Spring
3. Nut
4. Body
5. Adjuster screw
6. Spring
7. Piston
8. Poppet
9. Valve
10. Inner body
11. Spring seat
