68 SECTION 35 - HYDRAULIC SYSTEM

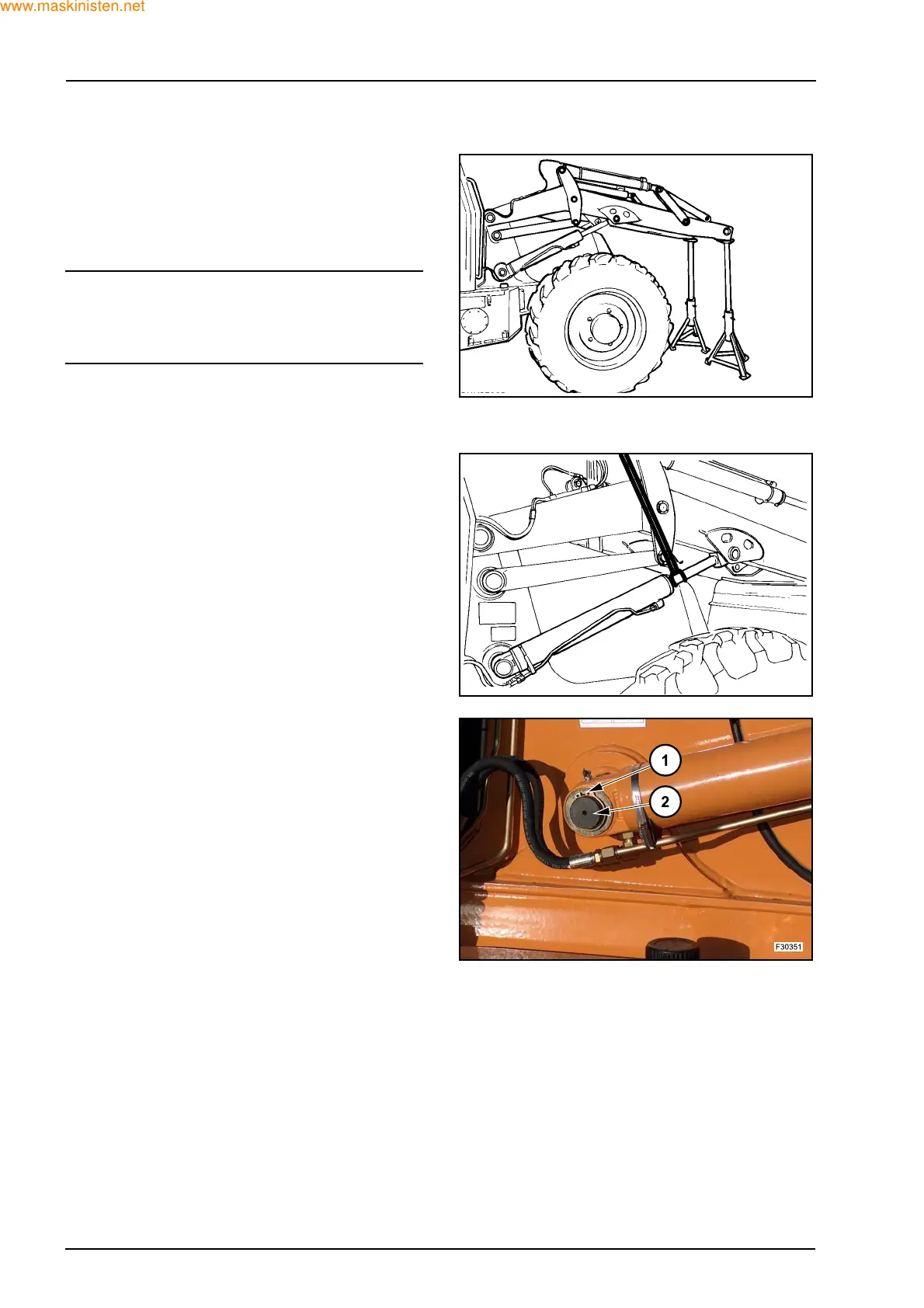

CYLINDER REMOVAL
Park machine on a flat surface. Raise the loader suf-
ficiently to allow the loader cylinder pin to be re-
moved.
Remove the loader bucket and support the arm us-
ing a suitable stand or hoist.
SWARNING
Always ensure loader is fully supported. Do not work
under or near an unsupported loader or personal in-
jury may occur.
Relieve the residual pressure in the system by mov-
ing the loader control lever through all operating po-
sitions.
Stop the engine.
Support the cylinder using sling and suitable hoist.
Disconnect the hydraulic hoses. Cap or plug all ex-
posed openings.
Disconnect the hydraulic hoses.
Remove the snap ring (1) and the spacer (2).
F30317
F30318
