70 SECTION 35 - HYDRAULIC SYSTEM

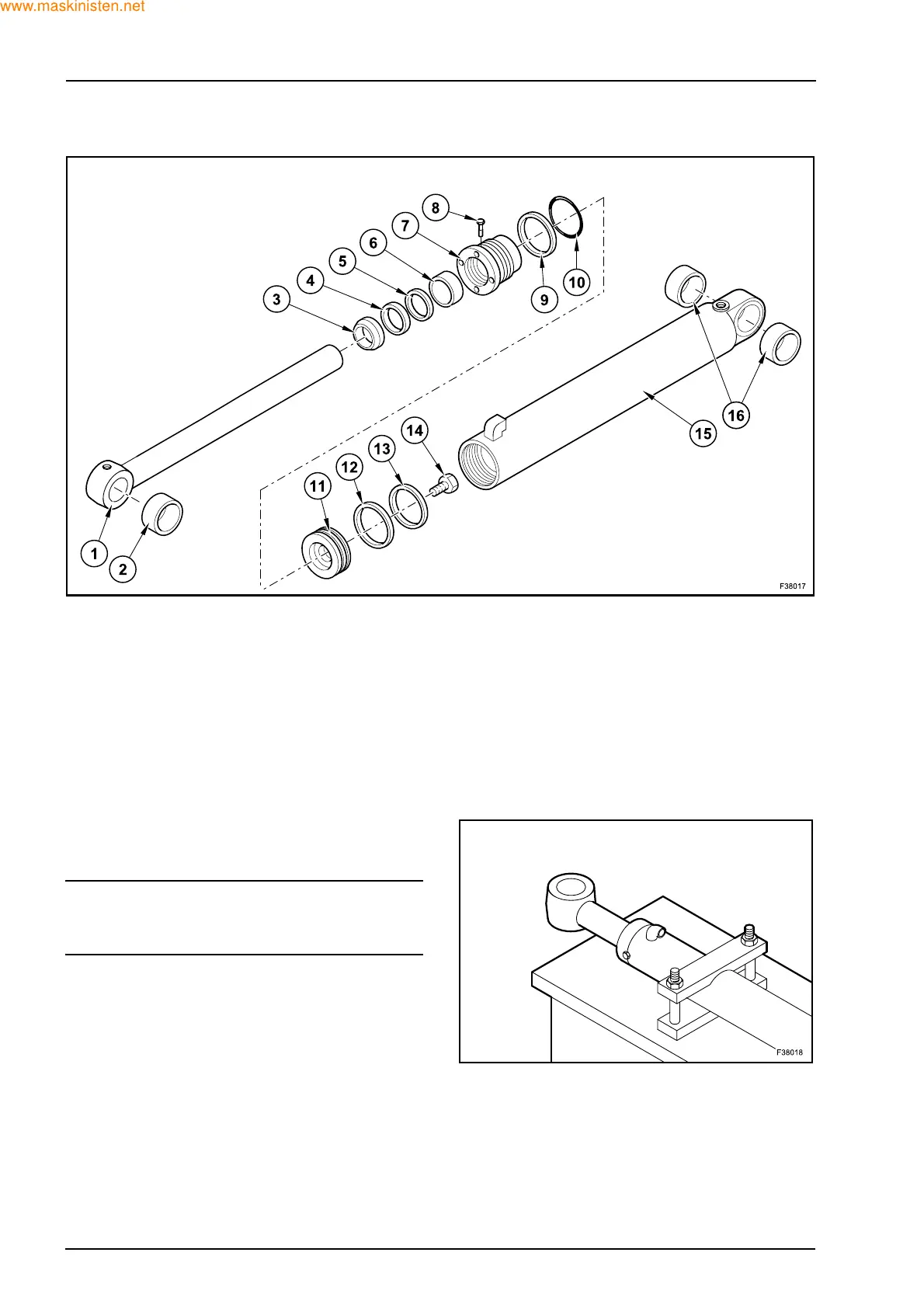

DISASSEMBLY CYLINDER
1. Cylinder rod
2. Bushing
3. Wiper ring
4. Ring seal
5. Ring seal
6. Guide bush
7. Cylinder head
8. Safety screw
9. Back-up ring
10. O-ring
11. Piston
12. Piston gasket
13. Piston guide
14. Screw
15. Cylinder tube
16. Bushing
The disassembly procedure below starts on the
premise that the hydraulic lines have already been
removed.
SWARNING
Cylinder weight (2WS) = 32.5 kg.
Cylinder weight (4WS) = 41.3 kg.
Lift and securely place the cylinder on a workbench.
Be sure that the cylinder is placed horizontally. Drain
hydraulic oil from the cylinder.
