SECTION 35 - HYDRAULIC SYSTEM 81

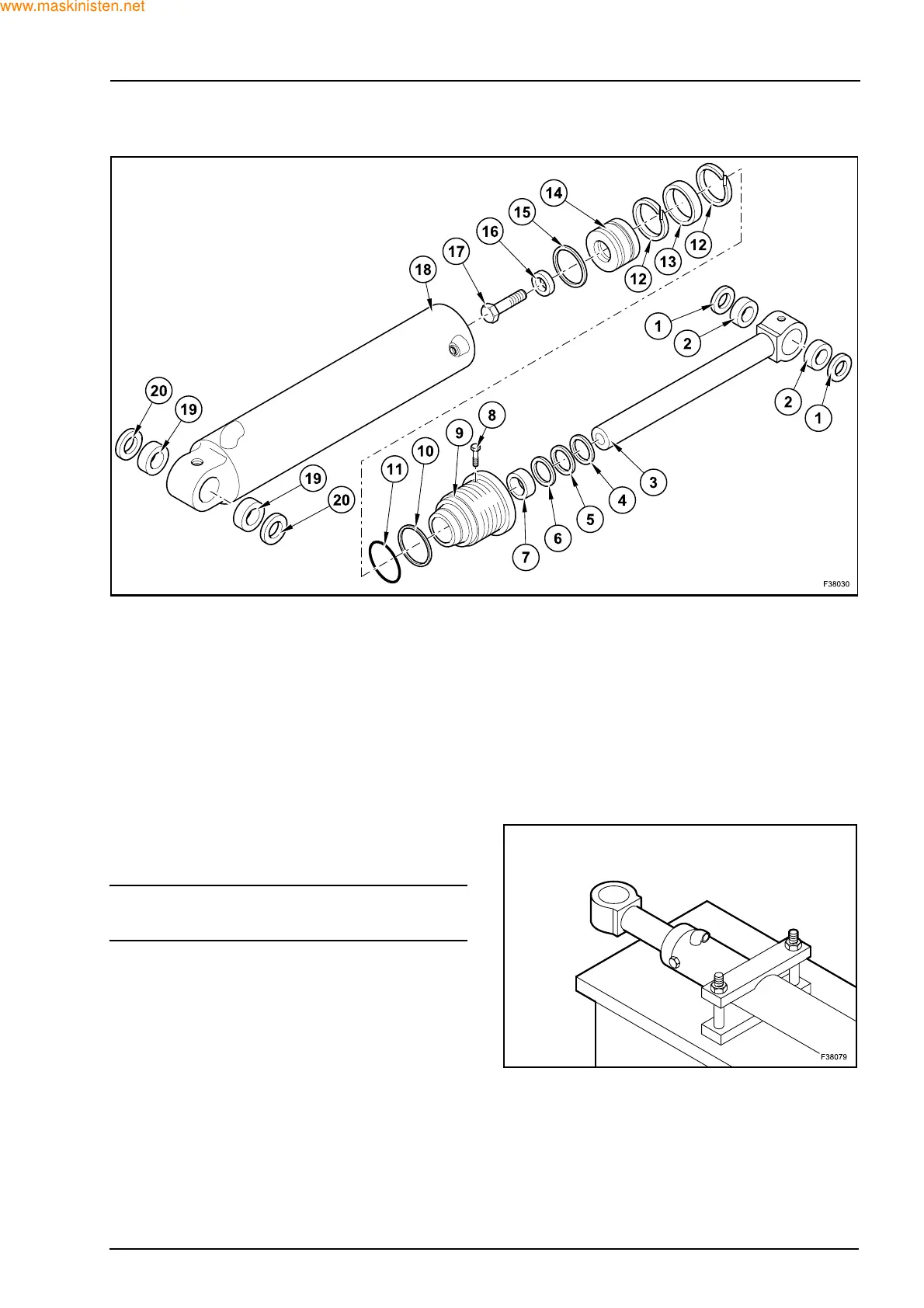

DISASSEMBLY CYLINDER
1. Wiper ring
2. Bushing
3. Cylinder rod
4. Wiper ring
5. Ring seal
6. Ring seal
7. Guide bush
8. Safety screw
9. Cylinder head
10. Back-up ring
11. O-ring
12. Piston guide
13. Piston gasket
14. Piston
15. Piston gasket
16. Washer
17. Screw
18. Cylinder tube
19. Bushing
20. Wiper ring
The disassembly procedure that follows takes into
consideration the hydraulic piping already disas-
sembled.
SWARNING
Cylinder weight: 80.5 kg
Lift and securely place the cylinder on a workbench.
Be sure that the cylinder is placed horizontally. Drain
hydraulic oil from the cylinder.
