SECTION 35 - HYDRAULIC SYSTEM 89

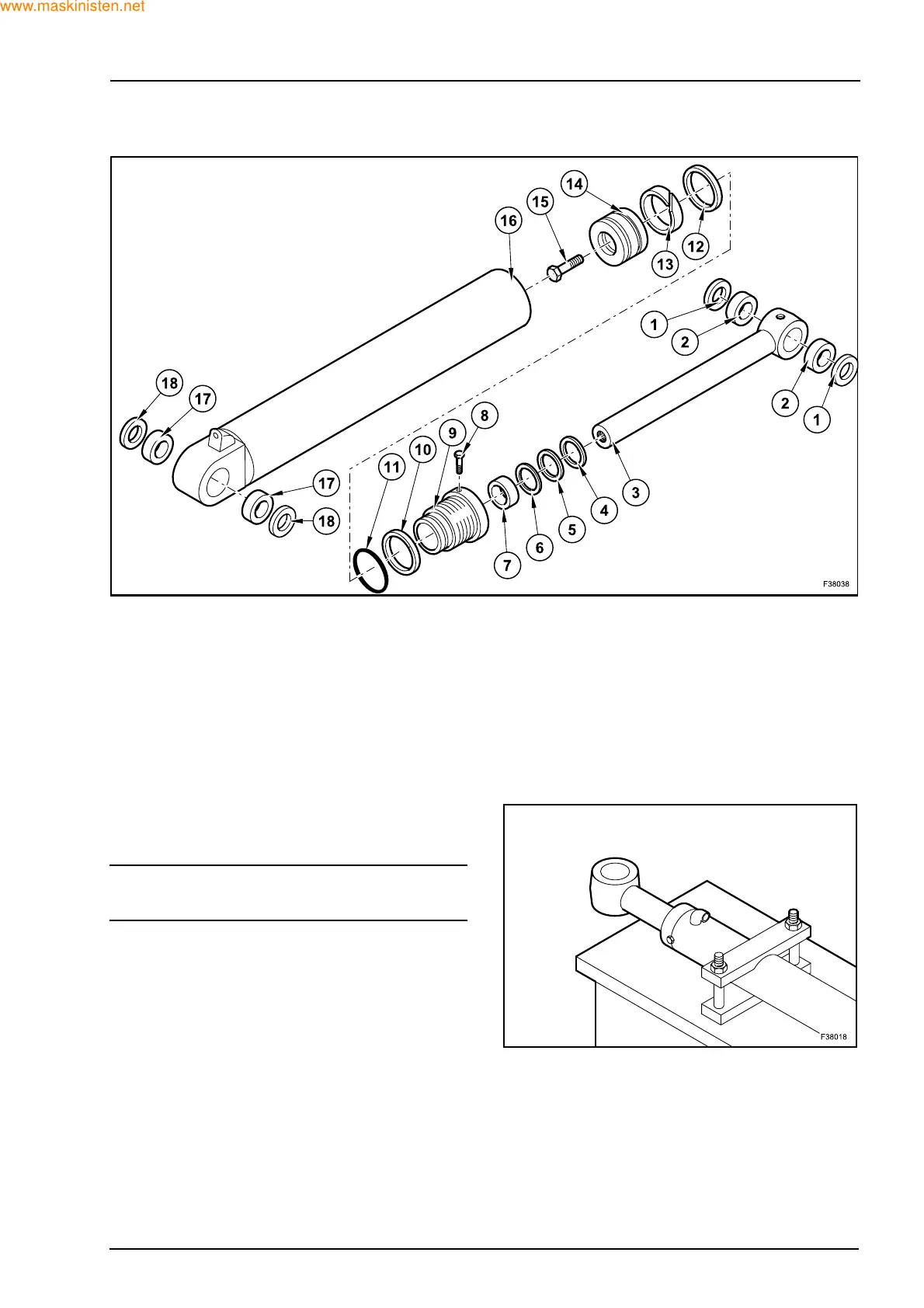

DISASSEMBLY CYLINDER
1. Wiper ring
2. Bushing
3. Cylinder rod
4. Wiper ring
5. Ring seal
6. Ring seal
7. Guide bush
8. Safety screw
9. Cylinder head
10. Back-up ring
11. O-ring
12. Piston gasket
13. Piston guide
14. Piston
15. Screw
16. Cylinder tube
17. Bushing
18. Wiper ring
The disassembly procedure that follows takes into
consideration the hydraulic piping already disas-
sembled.
SWARNING
Cylinder weight: 96 kg
Lift and securely place the cylinder on a workbench.
Be sure that the cylinder is placed horizontally. Drain
hydraulic oil from the cylinder.
