SECTION 35 - HYDRAULIC SYSTEM 93

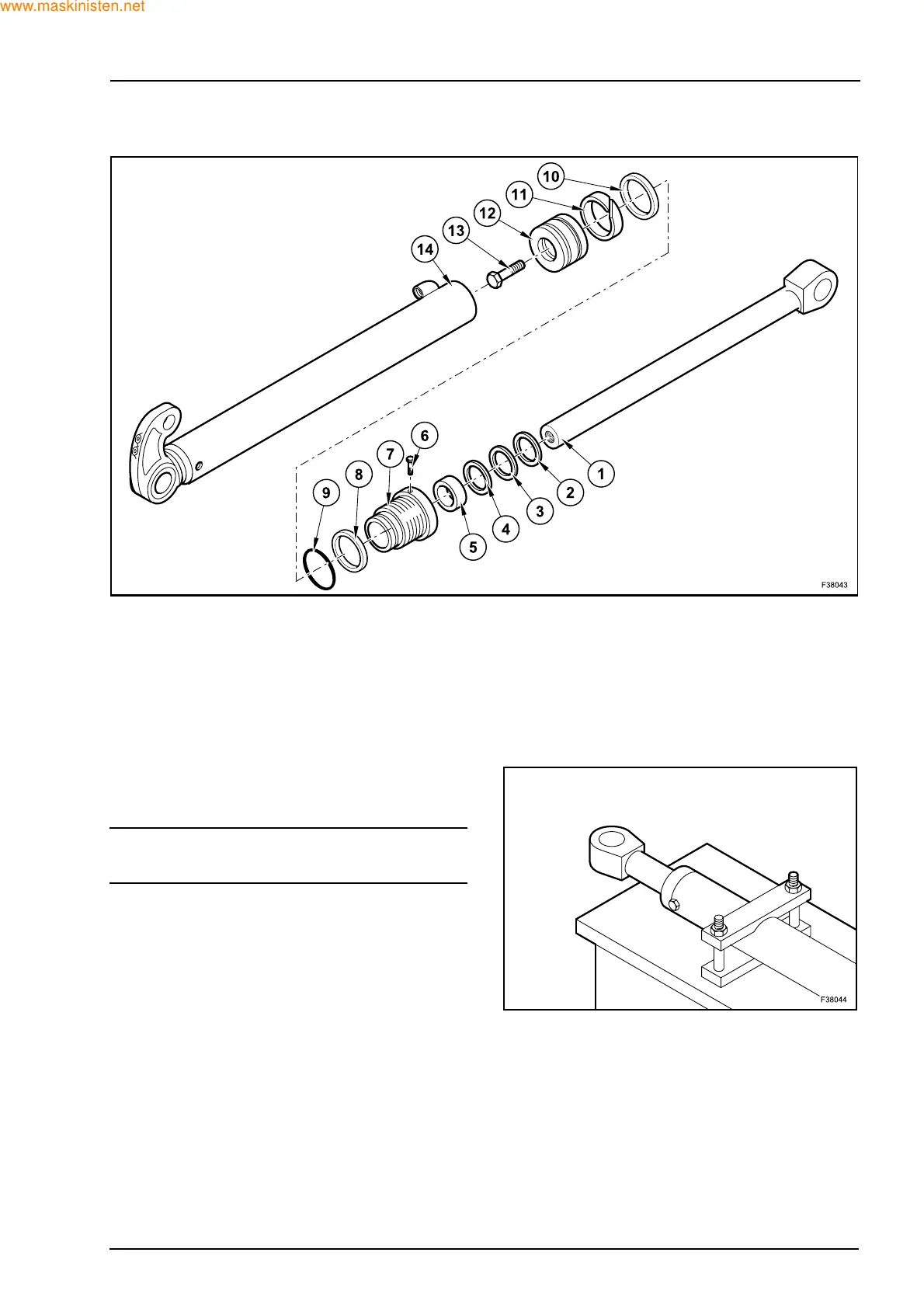

DISASSEMBLY CYLINDER
1. Cylinder rod
2. Wiper ring
3. Ring seal
4. Ring seal
5. Guide bush
6. Safety screw
7. Cylinder head
8. Back-up ring
9. O-ring
10. Piston gasket
11. Piston guide
12. Piston
13. Screw
14. Cylinder tube
The disassembly procedure that follows takes into
consideration the hydraulic piping already disas-
sembled.
SWARNING
Cylinder weight: 45 kg
Lift and securely place the cylinder on a workbench.
Be sure that the cylinder is placed horizontally. Drain
hydraulic oil from the cylinder.
