SECTION 35 - HYDRAULIC SYSTEM 101

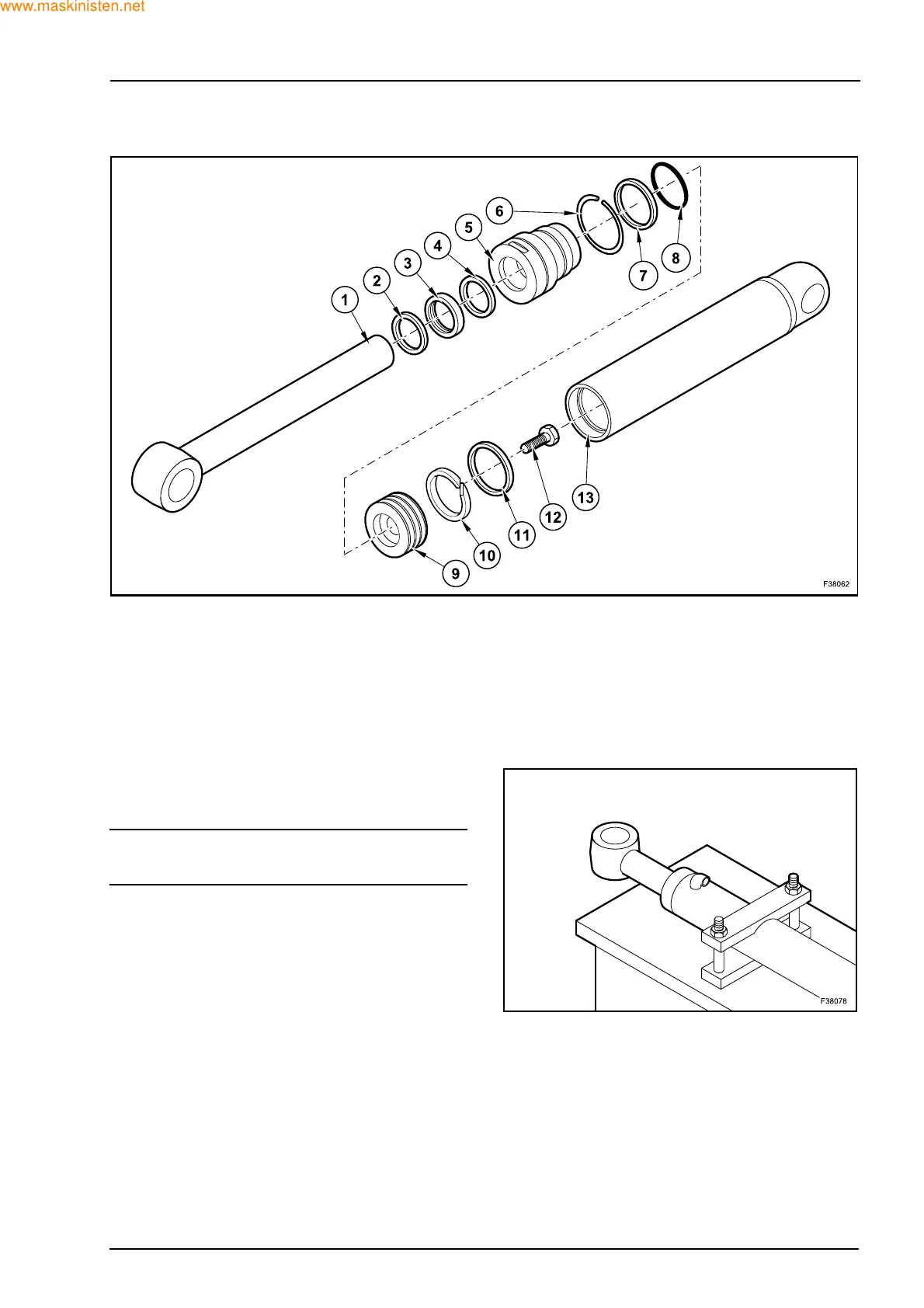

DISASSEMBLY CYLINDER
1. Cylinder rod
2. Wiper ring
3. Ring seal
4. Ring seal
5. Cylinder head
6. Snap ring
7. Back-up ring
8. O-ring
9. Piston
10. Piston guide
11. Piston gasket
12. Screw
13. Cylinder tube
The disassembly procedure that follows takes into
consideration the hydraulic piping already disas-
sembled.
SWARNING
Cylinder weight: 34.5 kg
Lift and place the cylinder on a workbench and se-
cure it to a vice. Be sure that the cylinder is placed
horizontally. Drain hydraulic oil from the cylinder.
