SECTION 35 - HYDRAULIC SYSTEM 105

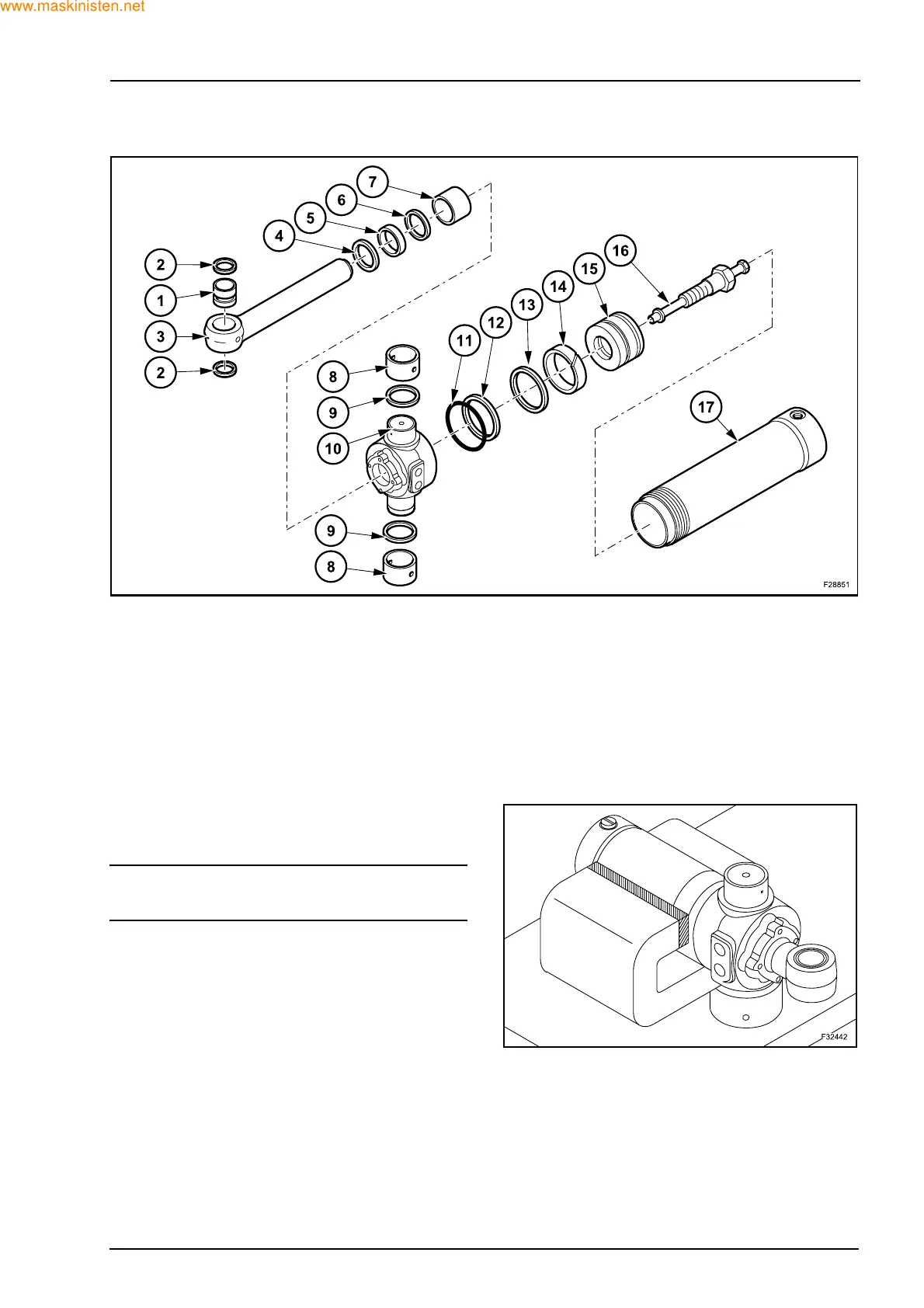

DISASSEMBLY CYLINDER
1. Bushing
2. Wiper ring
3. Cylinder rod
4. Wiper ring
5. Ring seal
6. Ring seal
7. Guide bush
8. Bushing
9. Ring seal
10. Trunnion
11. O-ring
12. Back-up ring
13. Piston gasket
14. Piston guide
15. Piston
16. Lock retaining piston
17. Cylinder tube
The disassembly procedure that follows takes into
consideration the hydraulic piping already disas-
sembled.
SWARNING
Cylinder weight: 31 kg
Lift and place the cylinder on a workbench and se-
cure it to a vice. Be sure that the cylinder is placed
horizontally. Drain hydraulic oil from the cylinder.
