SECTION 35 - HYDRAULIC SYSTEM 107

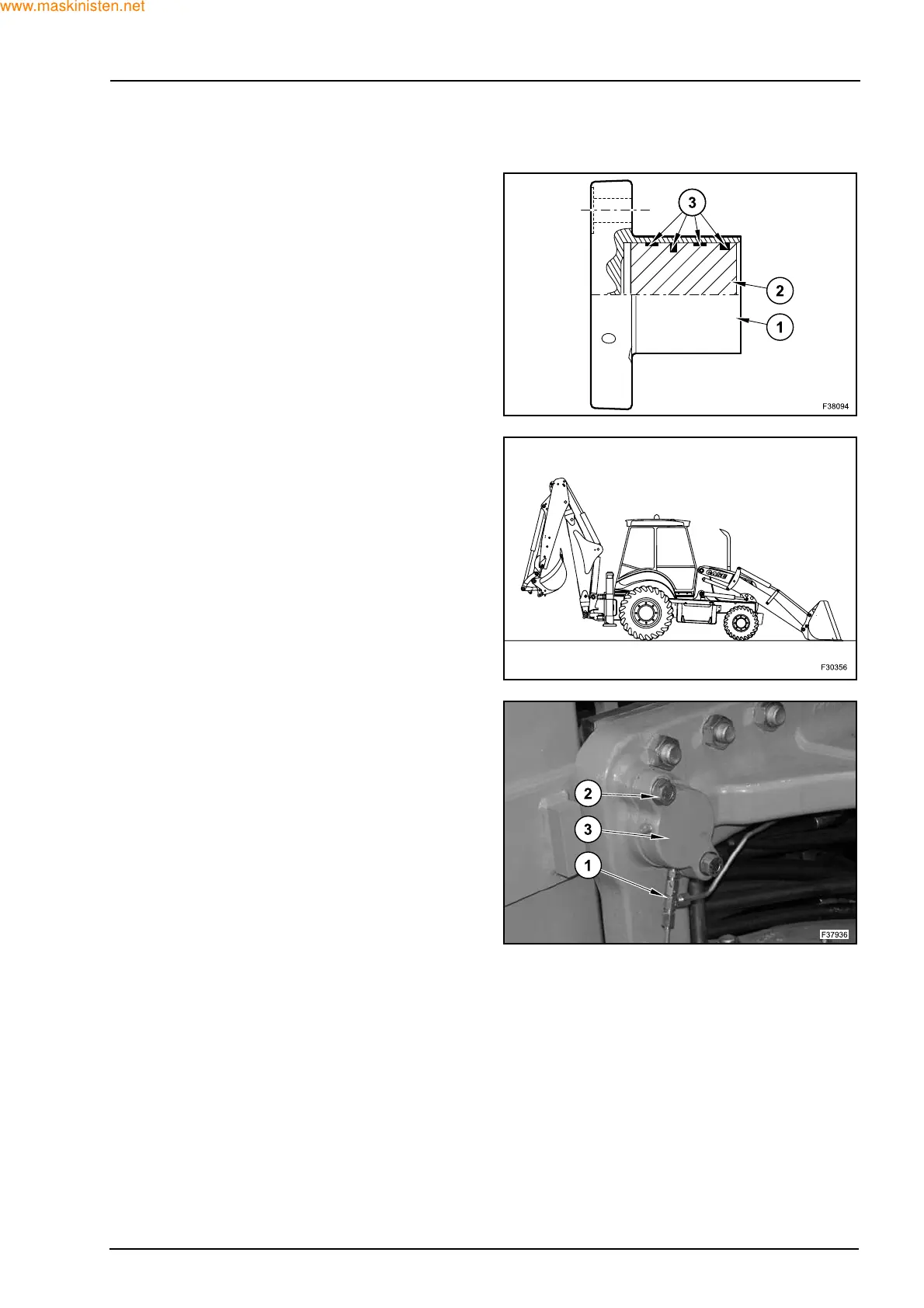

5.11 BACKHOE ATTACHMENT SIDESHIFT CYLINDER - SIDESHIFT
On the loader backhoe there are 4 sideshift lock cyl-
inders for the backhoe attachment. Their function is
to lock the carriage once the backhoe attachment is
ready in the digging position.
The cylinder consists of:
1. Body
2. Cylinder
3. Seals
CYLINDER REMOVAL
Park machine on a flat surface and position the
bucket on the ground.
Position the backhoe support in the centre of the ma-
chine and lower the backhoe on the ground.
Lower the stabilizers to the ground.
Relieve the residual pressure in the system by mov-
ing the control levers through all operating positions.
Disconnect the line (1).
Loosen and remove the two screws (2). Now it is
possible to remove the whole cylinder (3).
