Case 580SR+ - Page 735

SECTION 41 - STEERING SYSTEM 9

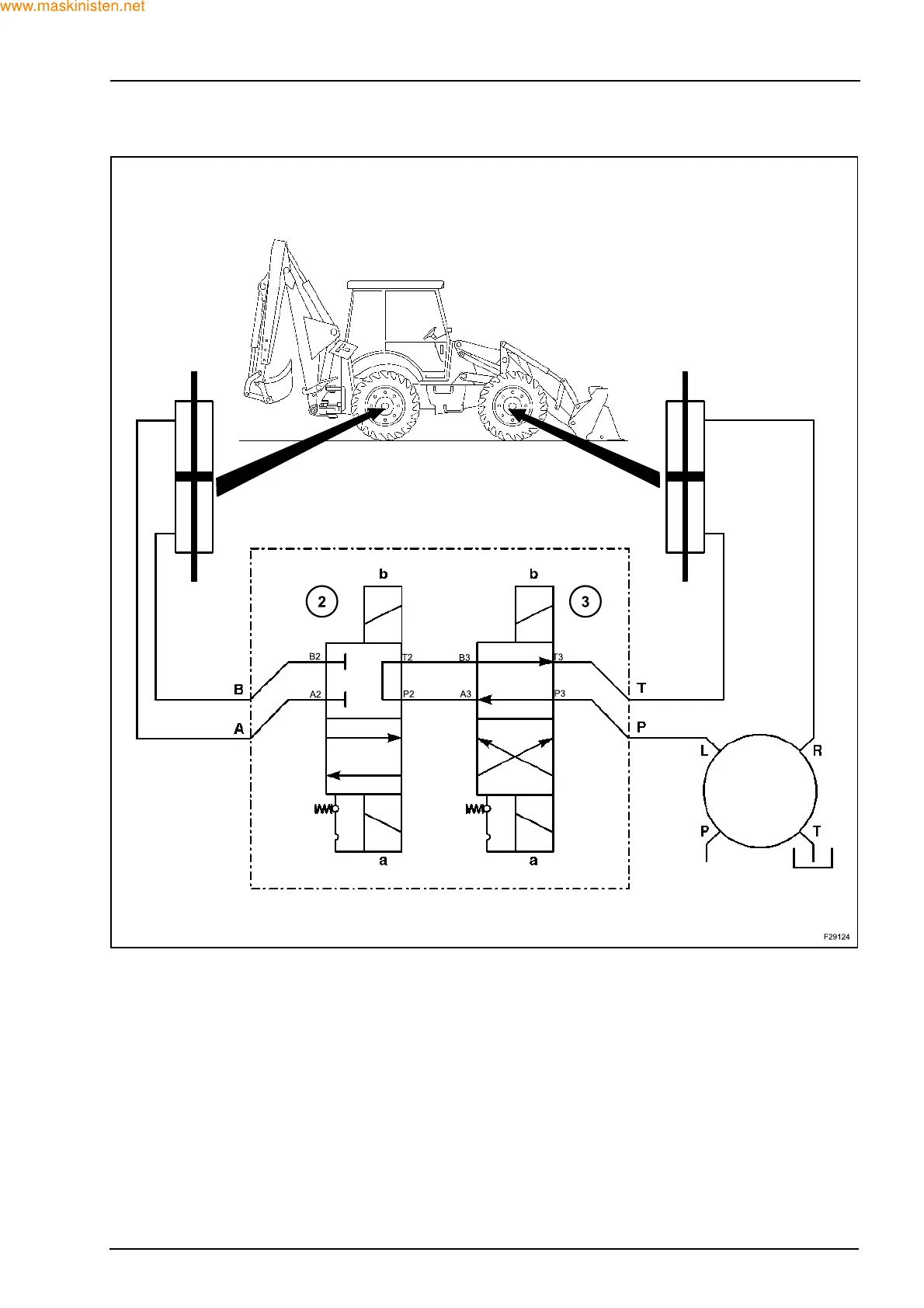

STEERING VALVE DIAGRAM
In the position shown both spools have been moved
by solenoids (2b) and (3b). The detents on the (a)
side of the solenoid hold the spool in this position
until another solenoid is pulsed.
