SECTION 41 - STEERING SYSTEM 11

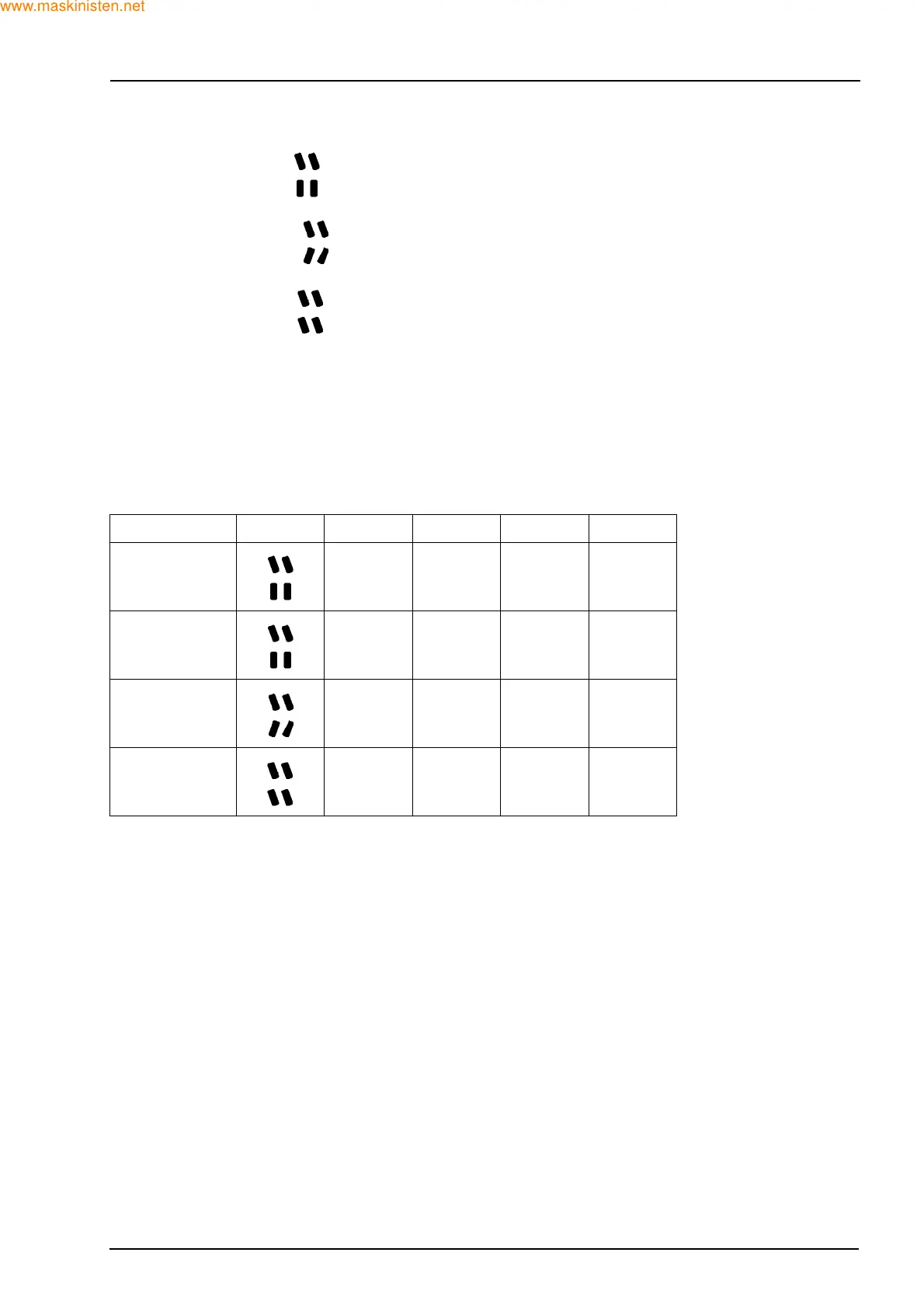

The three modes of steering are as follows:
Front wheel only steering
Front and rear wheel steer
Front and rear wheel crab
The solenoids energized are shown in the table be-
low.
These are also the pins which need to be pressed
when changing steering mode manually in an emer-
gency.
X = Energized
O = Not Energized
3a 3b 2a 2b
2WS O X O X
2WS X O O X
4WS O X X O
CRAB X O X O
