26 SECTION 41 - STEERING SYSTEM

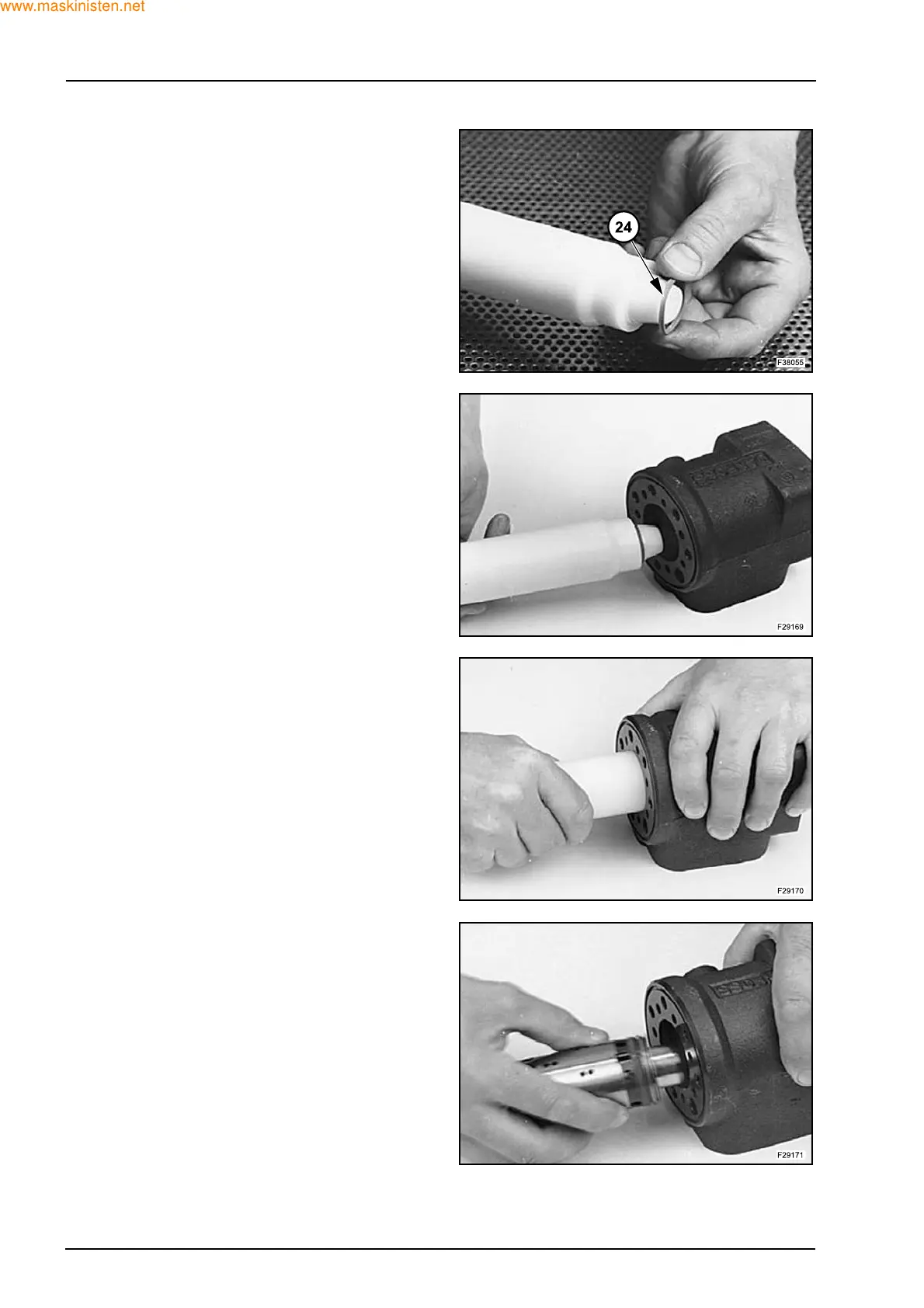

Lubricate the seal ring (24) with hydraulic oil and
place it on the assembly tool.
Guide the assembly tool right to the bottom.
Press and turn the seal ring into the housing.
With a light turning movement, guide the spool and
sleeve into the bore.
Fit the spool set holding the cross pin horizontal.
