Case 580SR+ - Page 815

SECTION 50 - CAB HEATING AND AIR CONDITIONING 55
REMOVAL AND INSTALLATION
Removal

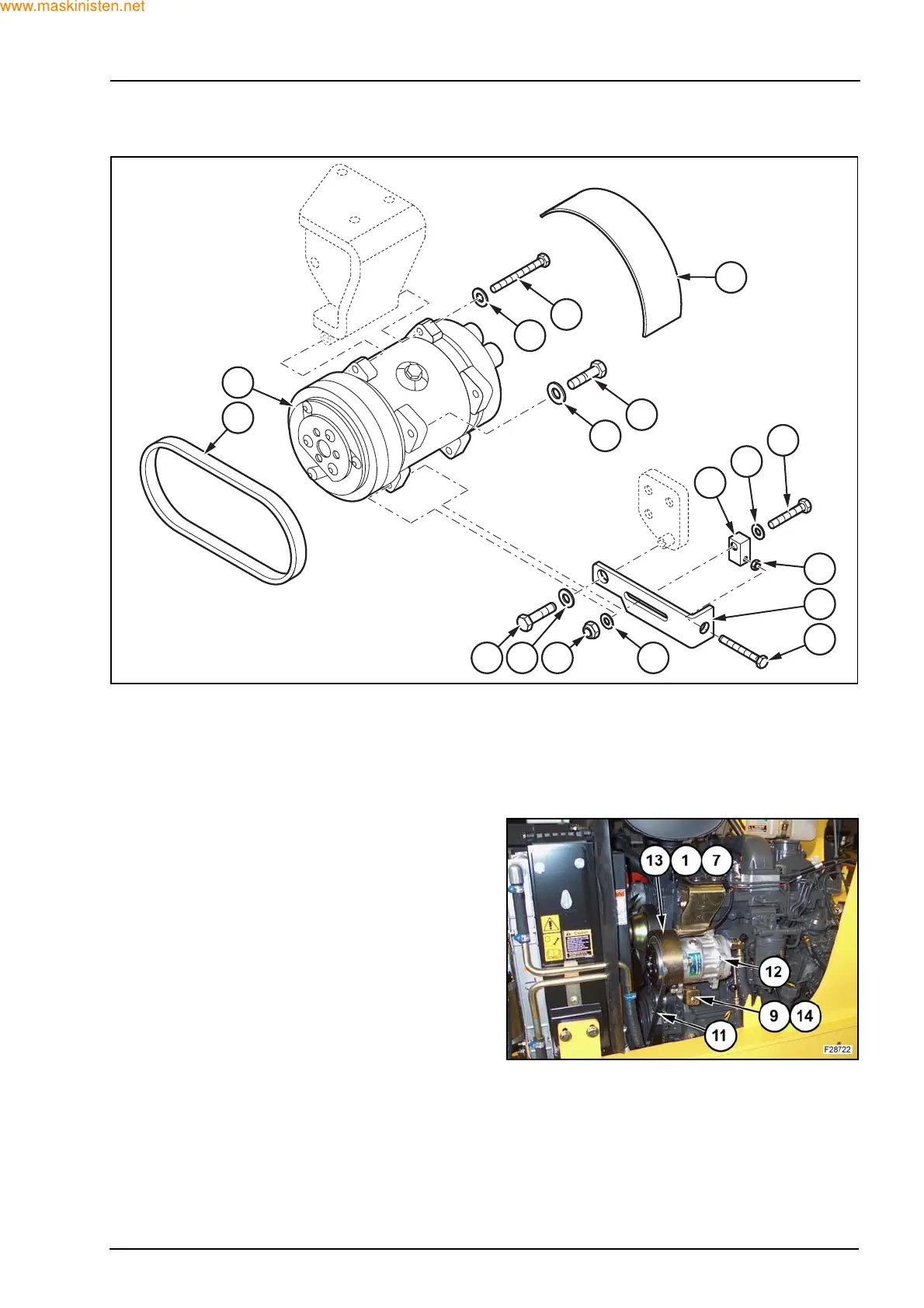

Discharge the air conditioning system. Disconnect
the electrical harness of the compressor (12) from
the electrical harness of the engine. Disconnect tub-
ing to compressor. Remove the washer (7) and the
screw (1). Remove the protective guard (13). Re-
move the bolt (11). Remove the nut (14) and the
screw (9).
F28721
13
10
7
1
7
12
11
2
5
8
14
4
9
5631
