SECTION 55 - ELECTRICAL SYSTEM 51

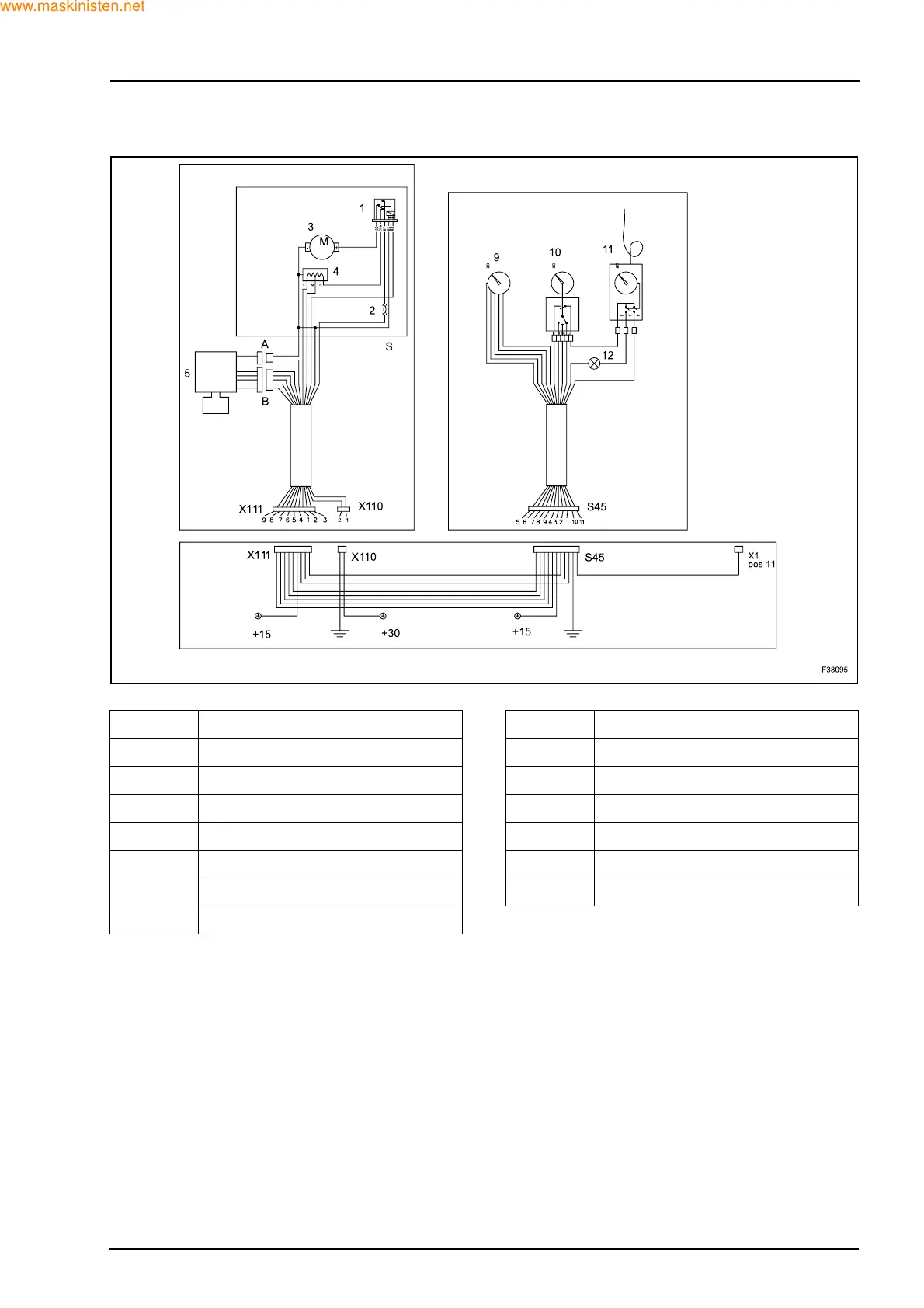

AIR CONDITIONER SCHEMATIC
S Evaporator box
1 3rd speed relay
2 Fuse 25 A
3 Ventilated electrical motor
4 1 and 2 speed resistor
5 Electrical cock
X111 9-way connector
X110 2-way power connector
S45 11-way connector
9 Potentiometer
10 Speed switch
11 Temperature switch
12 12 V light
A 2-way waterproof connection
B 5-way waterproof connection
