82 SECTION 55 - ELECTRICAL SYSTEM

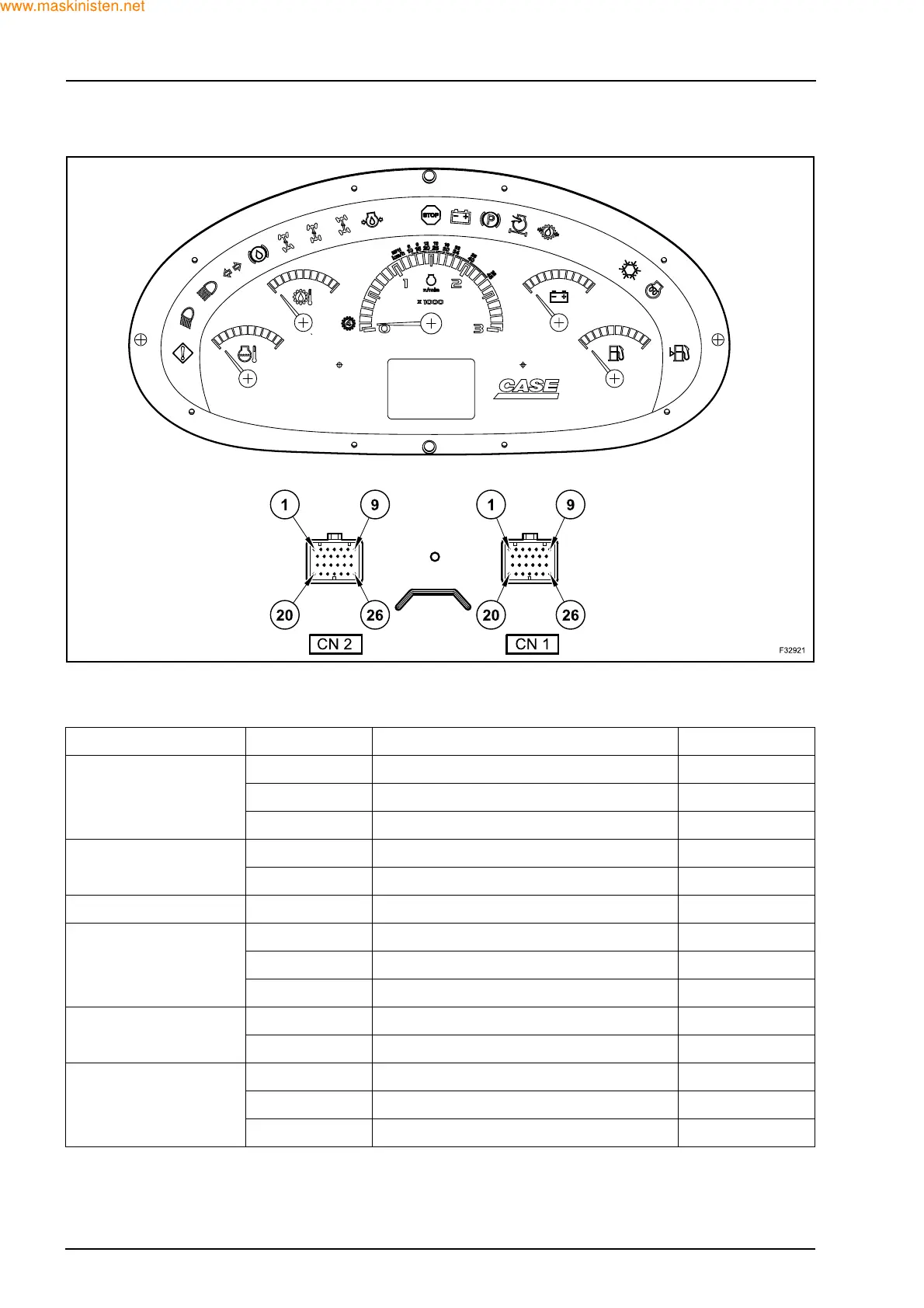

SIDE INSTRUMENT CLUSTER
Calibrations
GAGE TYPE INPUT READING TOLERANCE
FUEL LEVEL
320 OHMS Empty - minimum reading +0/-2°
185 OHMS Right - edge of red band ± 3° (Ref)
6.5 OHMS Full - maximum reading +4/-0°
LOW FUEL LAMP
193 OHMS ON ± 5 OHMS
185 OHMS OFF ± 5 OHMS
TACHOMETER Can message 0-3000 RPM ± 50 RPM
COOLANT
Can message Minimum reading 65 °C ± 3° C
Can message Left edge of red band 106 °C ± 2° C
Can message Maximum reading 112 °C ± 3° C
VOLT
11 V Right edge of lower red band ± 3° C
16 V Edge of upper red band ± 3° C
TRANSMISSION
385 OHMS Minimum reading 75 °C ± 3° C
149 OHMS Left edge of red band 105 °C ± 2° C
112 OHMS Maximum reading 115 °C ± 3° C
