84 SECTION 55 - ELECTRICAL SYSTEM
2.6 ELECTRICAL DIAGRAMS - 4WS POWERSHIFT CAB (695SR)

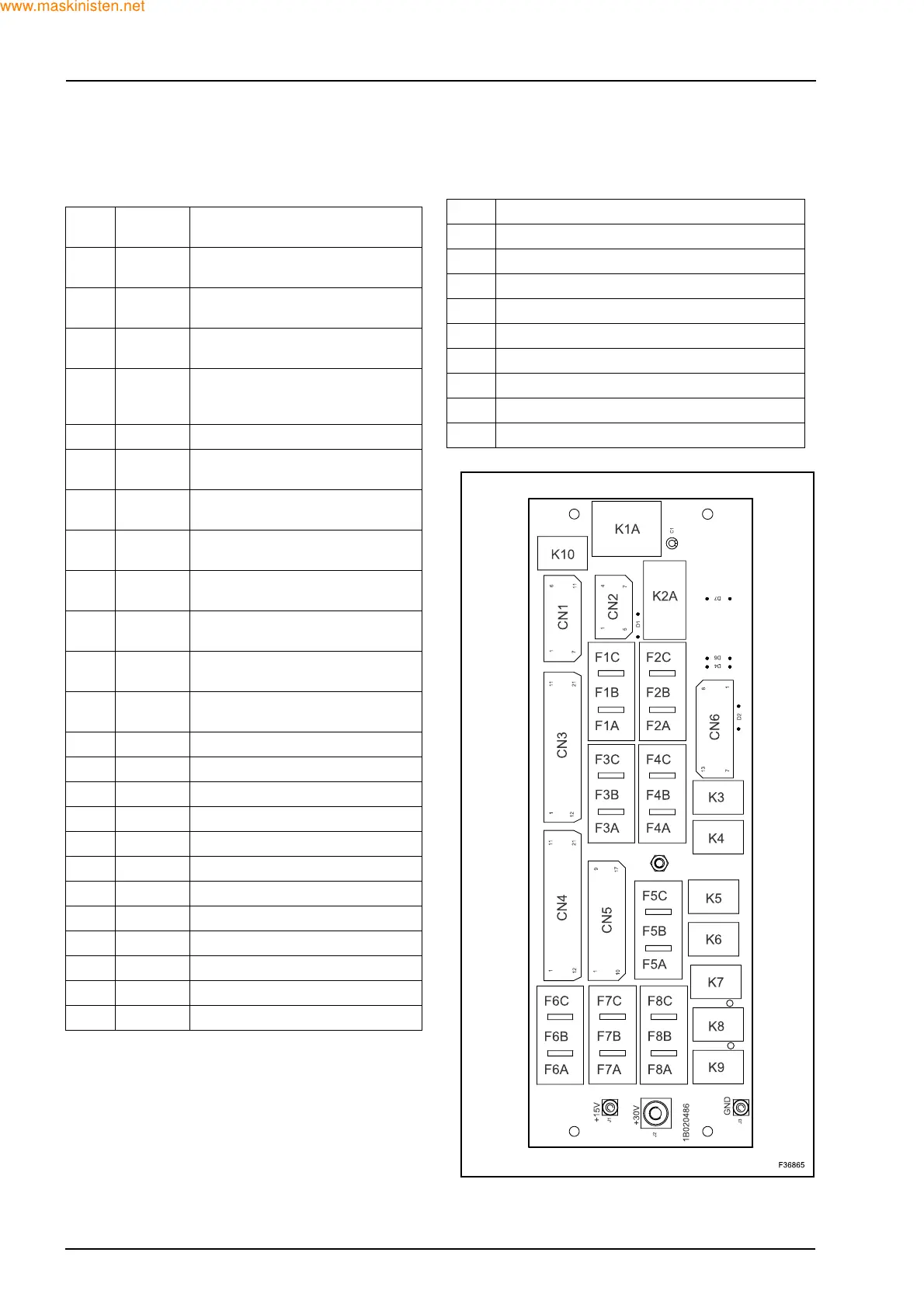

FUSE AND RELAY DESCRIPTION
Fuse
No.
Rating Function
F1A 15 A
Rear windshield wiper and rear wind-
shield washer
F1B 7.5 A
Engine stop, (+15) anti-theft device, (+15)
ECU power supply, starter switch key
F1C 10 A
Steering switch, steering control unit
power supply, stop light switch
F2A 15 A
Instrument power supply, switch lamps,
brake oil level sensor, pneumo-electric
seat, buzzer
F2B 15 A Air conditioning
F2C 15 A
Pilot control, loader attachment lamp (op-
tional)
F3A 3 A
Rear right/front left side light, instrument
backlighting
F3B 3 A
Rear left/front right side lights, number
plate light
F3C 10 A
Front work light switch, ride control, dou-
ble delivery
F4A 7.5 A
4WD switch, transmission disconnect
button, EGS power supply
F4B 10 A
Rear hammer button, bucket level sole-
noid valve + sensor
F4C 10 A
Backhoe attachment lock, backhoe at-
tachment travel lock
F5A 15 A Inner front work lights
F5B 10 A Low beams
F5C 15 A Main beams
F6A 15 A Rotating beacon
F6B 7.5 A (+15) hazard warning lights
F6C 7.5 A Hand hammer
F7A 10 A (+30) hazard warning lights, horn
F7B 10 A Electrical socket, radio, cab light
F7C 6 A Front windshield wiper
F8A 15 A Outer rear work lights
F8B 15 A Outer front work lights
F8C 15 A Inner rear work lights
K1A Hazard warning lights
K2A Buzzer
K3 Starting relay
K4 Bucket level solenoid valve relay
K5 Low and main beam relay
K6 Inner front work light relay
K7 Inner rear work light relay
K8 Outer front work light relay
K9 Outer rear work light relay
K10 Optional relay
