138 SECTION 55 - ELECTRICAL SYSTEM
5.3 STARTER MOTOR
SPECIFICATIONS
Manufacturer .............................................................................................................................................Denso
Voltage .........................................................................................................................................................12 V
Rated power............................................................................................................................................. 2.7 kW
Starting system .......................................................................................................................................Positive
Operating time.............................................................................................................................................. 30 s
Direction of rotation .................................................................................... Clockwise seen from the pinion side
Weight ....................................................................................................................................................... 8.4 kg
Maximum consumption without load at 11 V and 3000 rpm minimum...................................... 200 A maximum
Maximum consumption with a torque of 19.6 Nm at 8 V and 1130 rpm minimum ................... 600 A maximum
Maximum consumption when shimming at 3 V with a torque of 39.2 Nm minimum ............... 1400 A maximum

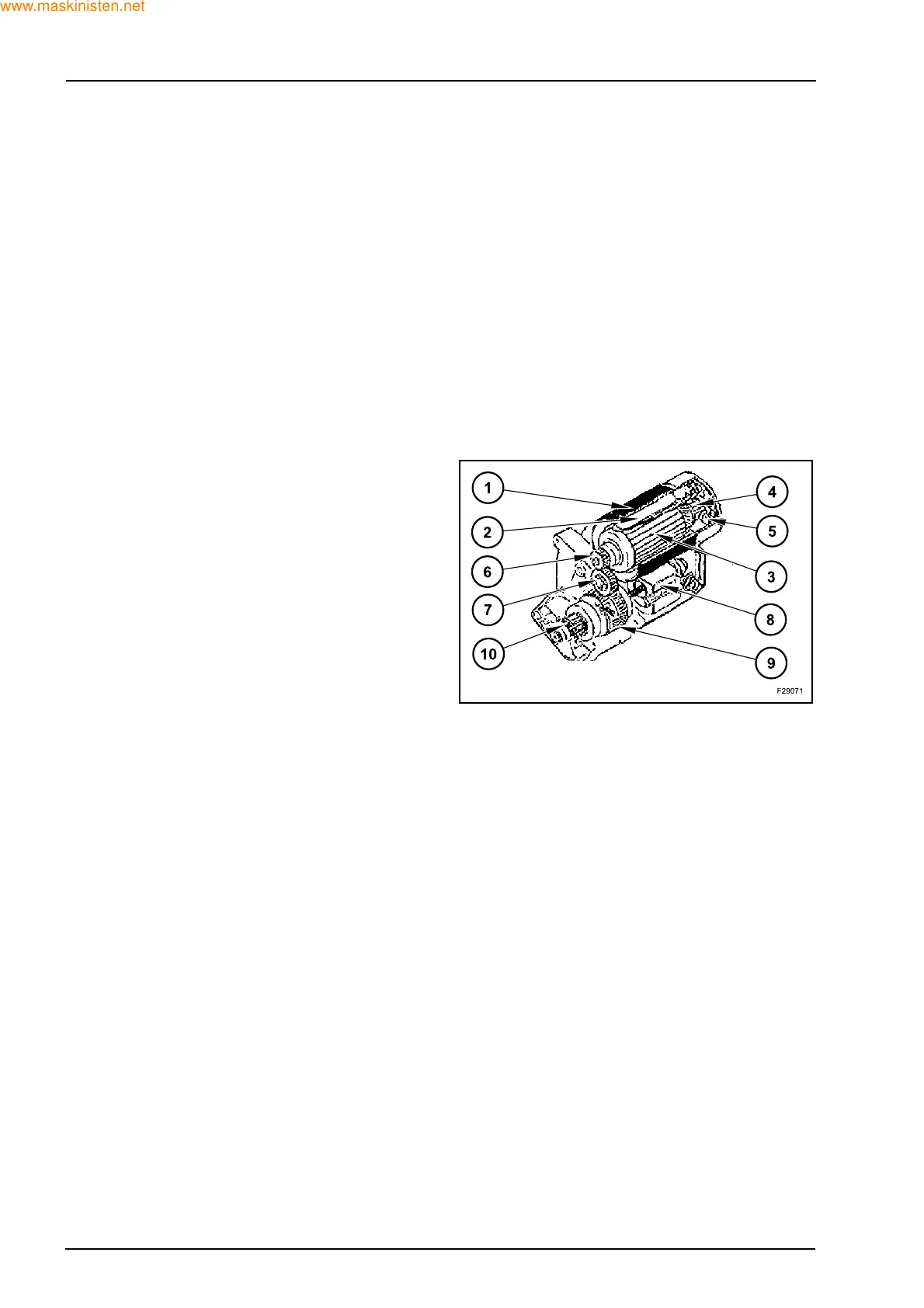

MAIN COMPONENTS
1. Motor
2. Induction coils
3. Armature
4. Commutator
5. Brush assembly
6. Pinion gear
7. Intermediate pinion
8. Solenoid
9. Clutch
10. Drive pinion
