Cessna 150M - Page 70

FLAT GEAR
1969 -
1970 MODELS
I. Shim
2. Bolt
3. Brake Line
4. Bracket
5.
Hose
6.
Screw
7.
Clamp
8. Brake Hose
9. Axle
10.
Wheel Assembly
5-4
1I.
12.
13.
14.
15.
16.
17.
NOTE
Shims (PiN 0741022-1) are used between
outboard forging (21) and wedge (20) when
installing the landing gear spring strut.
't---8
Hub Cap
Brake Assembly
Shim
Bracket
18.
Fillet Plate
Step
19.
Seal
Spring Strut
20. Wedge
Bracket
2I.
Outboard Forging

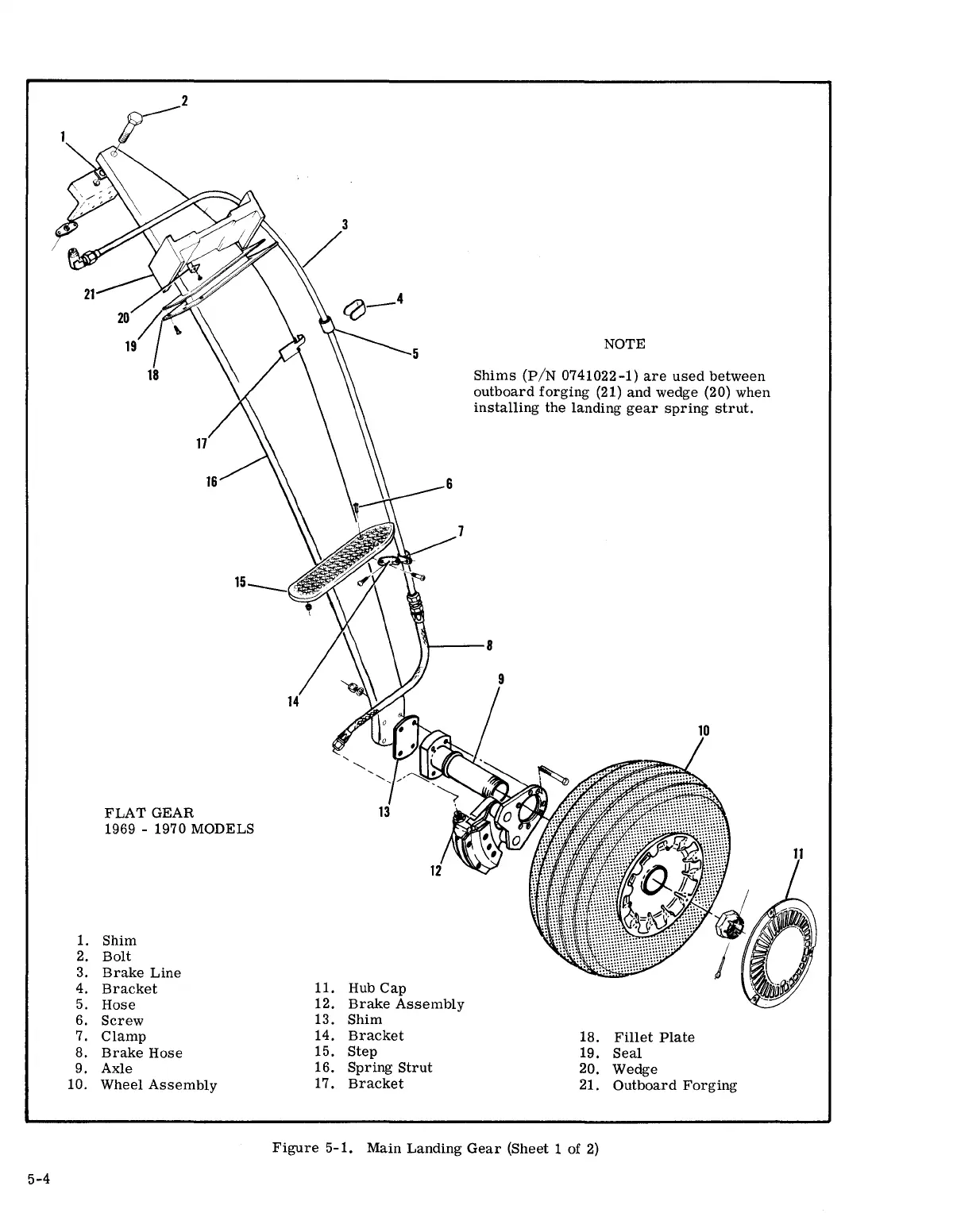

Figure 5-1. Main Landing Gear (Sheet 1 of 2)
