Apply Y -8560 (3M Corporation) polyurethane tape
(1" wide) to upper and lower surface of spring
and above and below step bracket to prevent chaf-
ing of spring fairing.
• BEGINNING WITH
15072547
A1500266
F1500739
FA1500162
A
~A
TUBULAR GEAR
BEGINNING WITH
1971 MODELS
eTHRU
15072546
A1500265
F1500738
FA1500161
15
* Torque elbow to a maximum of 60 lb in.
Lube/seal with Liquid-a-Ring #404:
(Oil Center Research, P. O. Box 51971,
Lafayette, Louisiana 7050).
BEGINNING WITH THE
FOLLOWING SERIALS:
15072400
A150000260
F15000659
FA15000082
1. Bolt
2. Inboard Forging
3. Outboard Forging
4. Bushing
*Washers installed
beginning with
15072004
A1500227
F15000659
FA1500082
7. Spring-Strut
8. Step
9. Step Bracket
10. Axle
SECTION A-A
o Beginning with
15076328,
A1500530
&
F15001014
r---190
Beginning with 15073285,
F1500834, A1500325
&
FA1500167, jack pad is
provided in bottom of
step bracket (9).
13. Hub
Cap
14. Brake Assembly
15. Fuselage Fairing
16. Spring-Strut Fairing
5. Bushing Retainer
11. Brake Torque Plate
17. Fairing Cap
6. Brake line
12. Wheel Assembly
18. Clamp
19. Brake Fairing

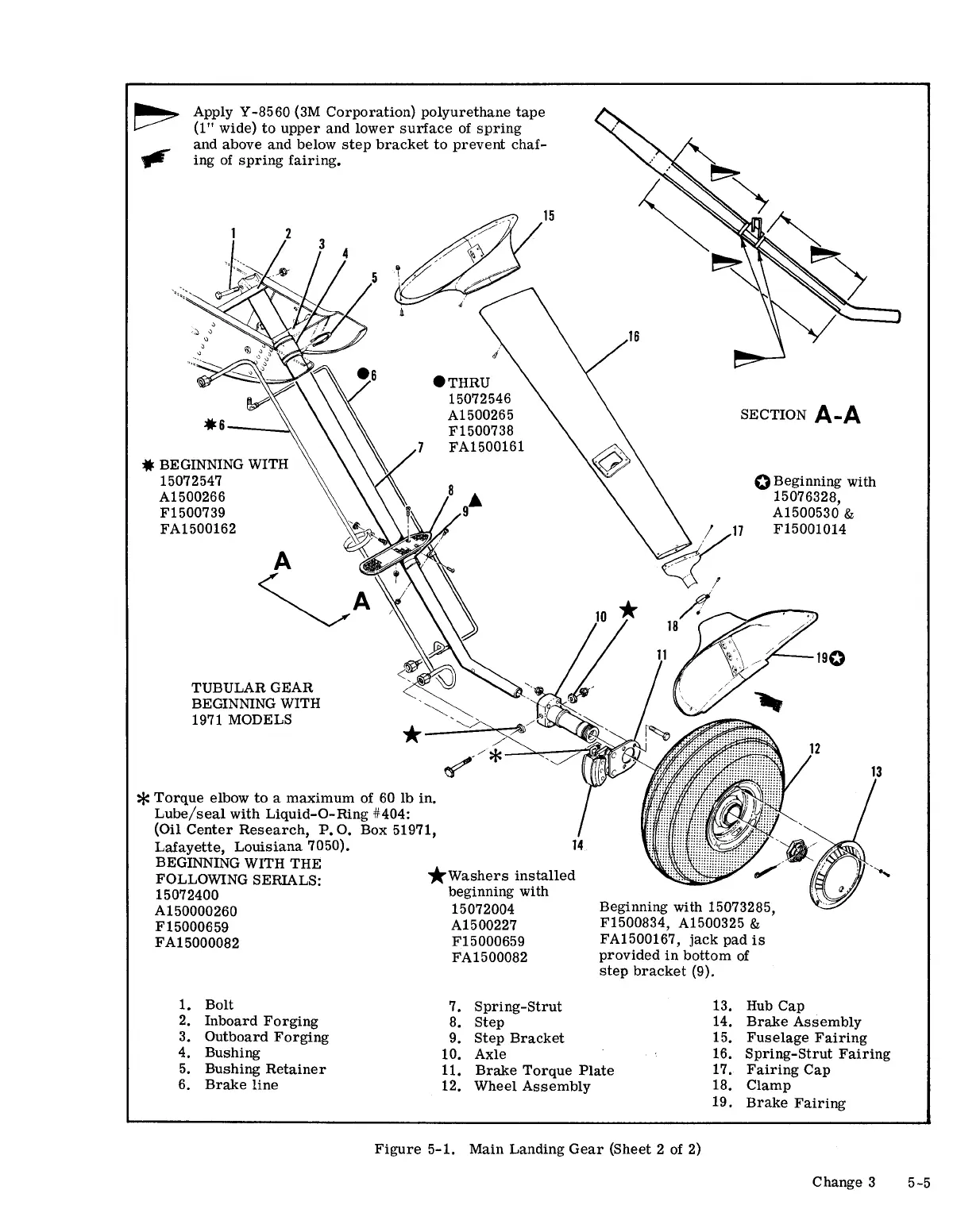

Figure 5-1. Main Landing Gear (Sheet 2 of 2)
Change 3 5-5
