4. Base station setup and operation
i80 GNSS Receiver User Guide  Page 39

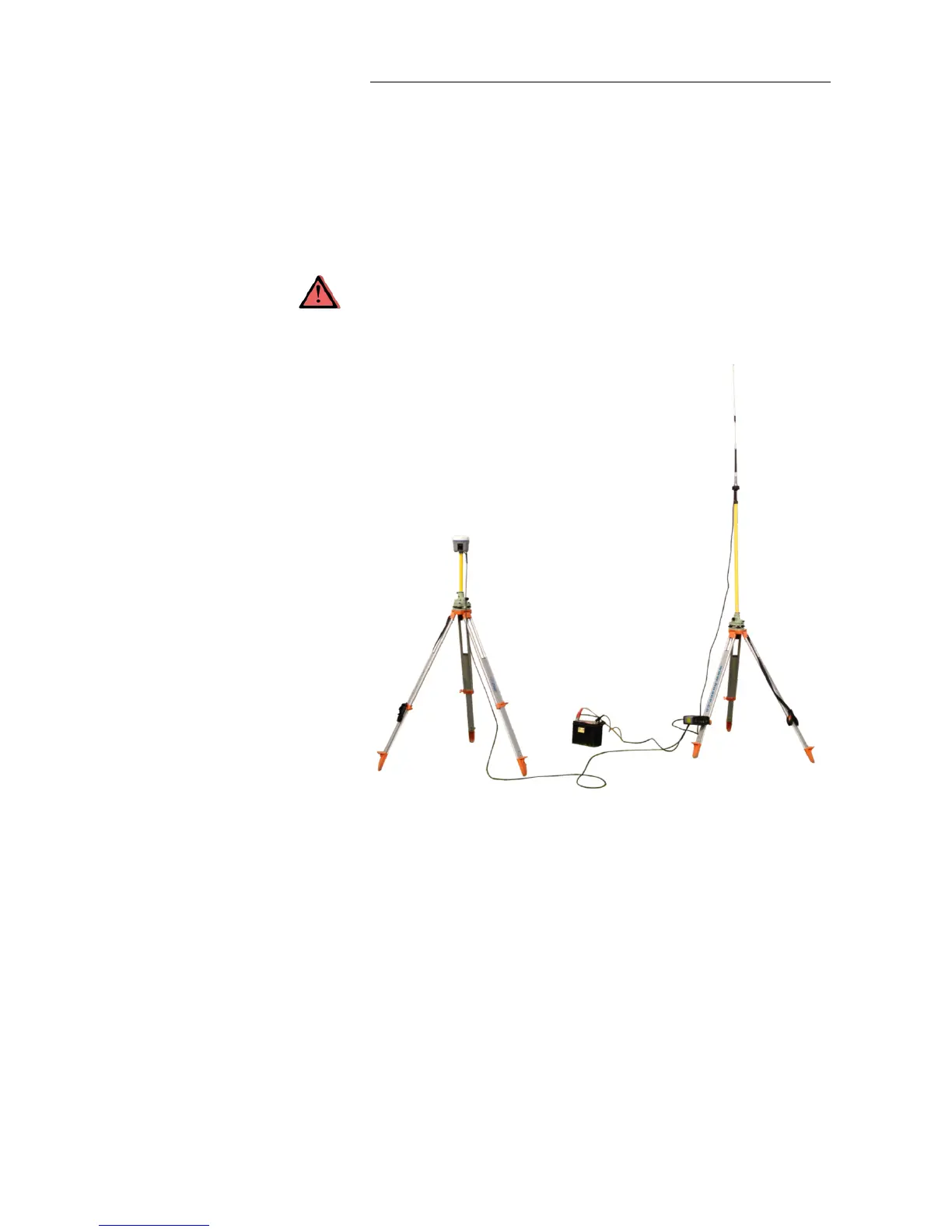

For connection between the receiver part and external radio part:
16. Connect Datalink Antenna to the Datalink Antenna Slot of DL5-C
Datalink via 3 meter Cable for Datalink Antenna.
17. Connect the base receiver with DL5-C Datalink via GPS to Datalink Cable.
18. Connect the car battery with DL5-C Datalink via Datalink External Power
Cable.
CAUTION – The Datalink Antenna must be connected to the Datalink before
the Datalink is powered on; otherwise, the Datalink can be damaged.
4.3.2. CONFIGURING THE BASE STATION
4.3.2.1. Configuring via Hcconfig software
1. Power on the receiver.
2. Turn on the controller, run Hcconfig and establish the connection with
receiver via Bluetooth or Wi-Fi (see 2.7. Connecting to a controller for
the operations).
3. After successful connection, tap RTK in the main menu.
4. In RTK screen, select Mode from the dropdown list.
When select Auto Base for Mode field:
5. Configure the related parameters: Format, Baud, Elevation and PDOP.
